Overview
The Smittybilt 40505 is a bolt-together Defender cargo basket roof rack, measuring 4 ft. wide and 5 ft. long with 4 in. sides. It is made from 16-gauge steel with 1 in. round tubing and finished in textured black powder coat.
It is universal in application and needs a vehicle-specific mounting kit, sold separately. Drilling is required for installation.

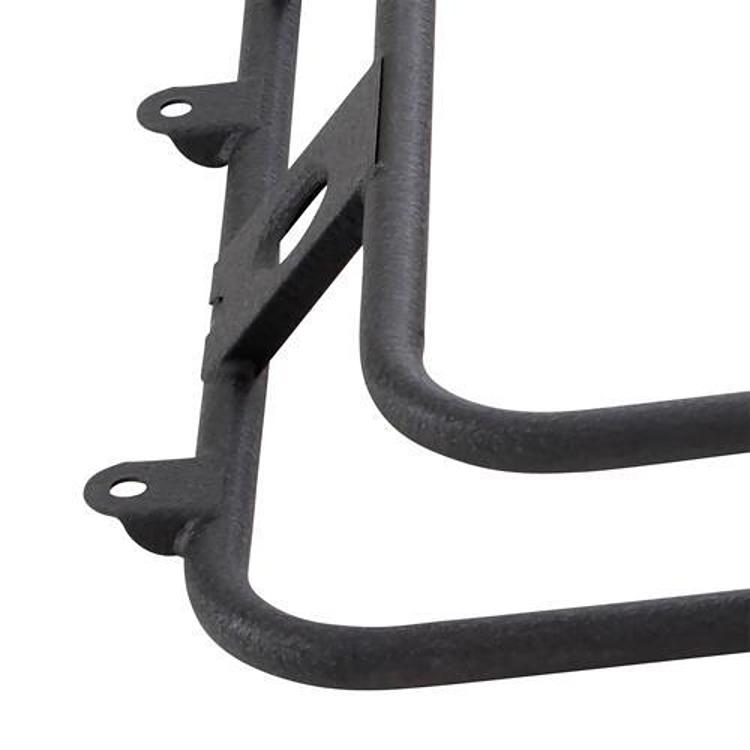

All hardware needed to bolt the rack together is included. The rack has welded light tabs, four at the front and two at the rear, and an aerodynamic shape.
Key features
- Bolt-together construction with all hardware included
- 16-gauge, 1 in. round steel tubing
- Welded light tabs: four front and two rear
- Aerodynamic styling
- Drilling required for installation

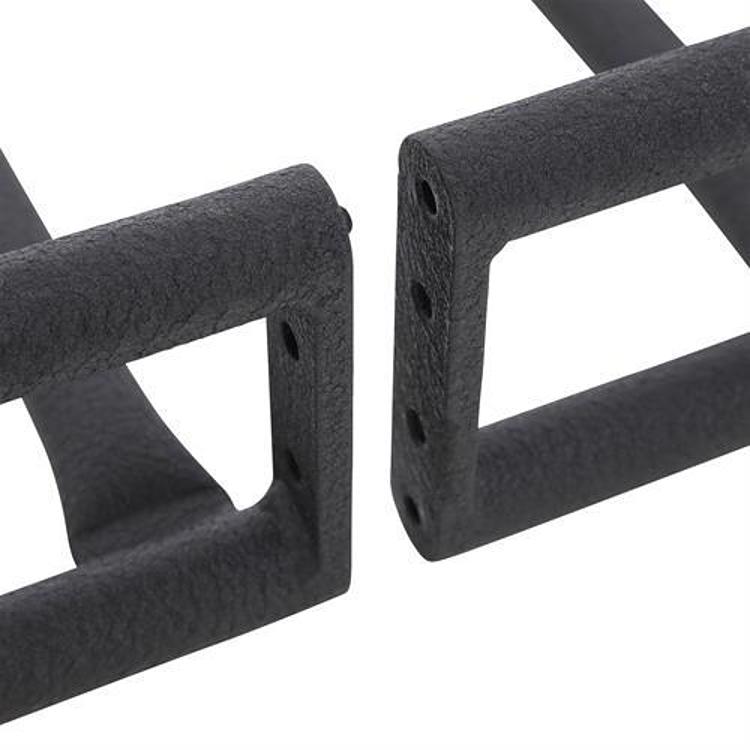

Assembling the frame
A bolt-together basket goes together on the ground before it goes on the roof, and the way it is assembled affects how straight it sits. Work on a flat surface, start every fastener by hand, and bring the joints together evenly before tightening. A square frame makes the mounting points line up when you position the rack.
Once the frame is built, tighten fasteners in a sequence that pulls the joints square, and recheck them after the first drive. Powder-coated joints can scratch during assembly, so clean and touch up exposed metal to keep moisture out of the tubing. Check the frame for twist before fitting it to the vehicle.
- Flat, clean work surface
- Hand-start all fasteners
- Recheck torque after the first drive
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 40505 |
| UPC | 631410114546 |
| Product type | Roof rack, cargo basket |
| Construction | Bolt together |
| Size | 4 ft. wide x 5 ft. long, 4 in. sides |
| Material | 16-gauge steel, 1 in. round tubing |
| Finish | Textured black powder coat |
| Install drilling | Yes |
Vehicle fitment
It is universal in application, so the vehicle-specific mounting kit determines whether it fits your roof. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mark the mounting points and check roof clearance before drilling. Assemble the bolt-together frame before it goes on the vehicle.
What’s included
All hardware needed to bolt the rack together is included. The vehicle-specific mounting system is sold separately.
Not included: The vehicle-specific mounting kit.
