Overview

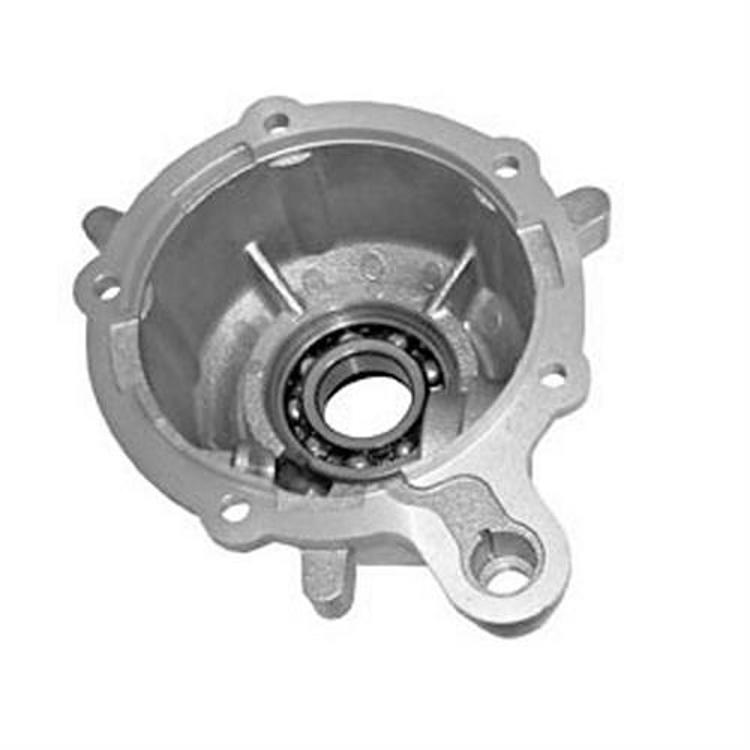

The Rugged Ridge 52231-HOUSING is a slip yoke eliminator (SYE) extension housing for 1997-2006 Jeep Wrangler (TJ) models.
An SYE housing replaces the slip yoke arrangement on the transfer case output. This housing shortens the output shaft by 5 inches and reduces driveline angle. It comes without the tail shaft bearing.
Key features
- Slip yoke eliminator extension housing
- Shortens the output shaft by 5 inches
- Reduces driveline angle
- Comes without the tail shaft bearing
- Described by the maker as easy to install
Driveline work after an SYE swap
Replacing a slip yoke with an SYE housing changes the length and angle of the driveline, so the swap is more than a bolt-on job. Once the output is shortened, the front driveshaft and transfer case angles need to be checked to avoid vibration and premature joint wear. Some owners find the new geometry requires a shorter driveshaft or a different slip arrangement.
Before starting, support the vehicle on stands and drain fluid as the procedure directs. Remove the old slip yoke carefully and inspect the output seal and bearing surfaces. After reassembly, road test at low speed and listen for vibration, then recheck driveline angles once the suspension has settled.
- Measure driveline length before and after the swap
- Check driveshaft angles after installation
- Inspect the output seal and bearing surfaces
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 52231-HOUSING |
| UPC | 70000565045 |
| Part type | Slip yoke eliminator (SYE) extension housing |
| Output shaft shortening | 5 inches |
| Tail shaft bearing | Not included |
Vehicle fitment
It fits 1997-2006 Jeep Wrangler (TJ) models with 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
The YJ, LJ, JK and JL Wrangler generations are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Removing the slip yoke and fitting an SYE changes driveline length and angle, so have driveshaft angles checked and adjusted after the swap. Work under the vehicle should be done with it safely supported on stands.
What’s included
The housing is the item listed. The tail shaft bearing is not included.
Not included: Tail shaft bearing.
