Overview

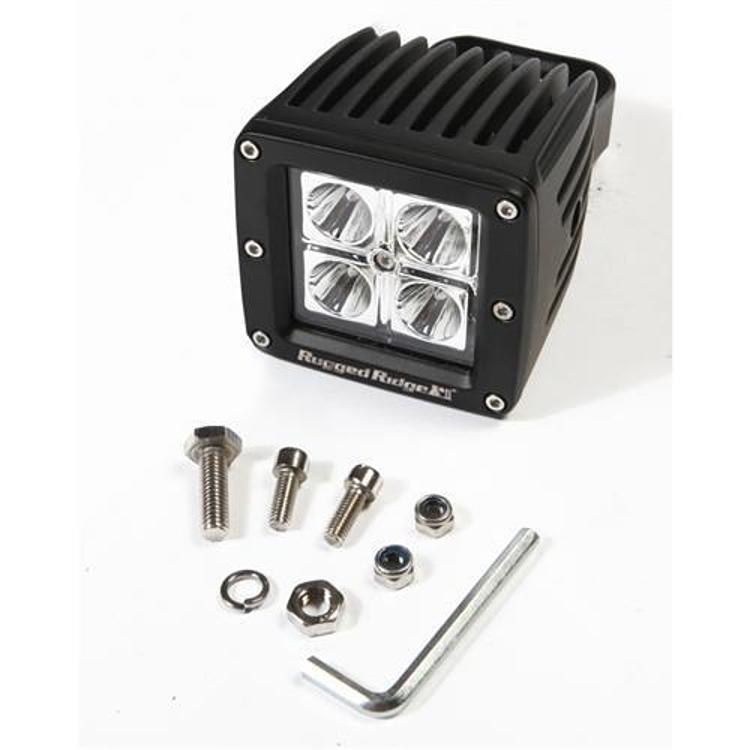

Part number 15210.02 is a square LED light and X clamp kit. It pairs a 3 inch square driving light rated at 16 watts with a universal mounting clamp, and it is a universal fit kit not tied to any year, make or model.
Four CREE diodes with a 30,000 hour life sit inside the 3 inch housing. The body is black powder-coated aluminum with stainless steel hardware, and the design is built to handle off-road strain.
Key features
- 3 inch square driving light rated at 16 watts
- Four CREE diodes with a 30,000 hour life
- Clear lens
- Black powder-coated aluminum housing
- Stainless steel hardware
- Universal mounting type with X clamp
Choosing a clamp setup

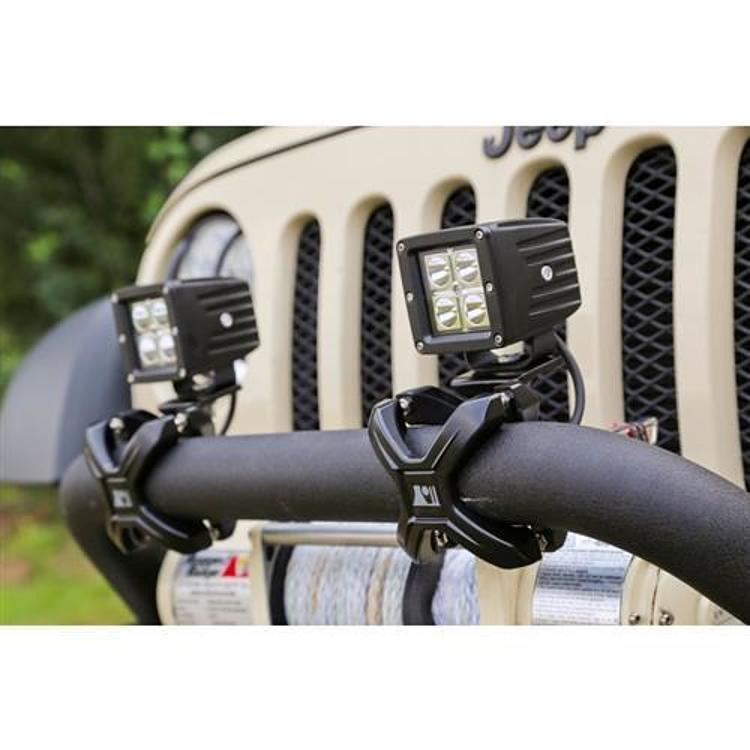

An X clamp holds a light to a bar or tube, so the mounting point decides how well the kit works. Measure the bar before buying and make sure the 0 to 10 inch range covers it with room for tightening. A square driving light points its beam where the mount angles it, so aim the light after the bar is fixed in place.
Off-road lights take a lot of vibration. Tighten the clamp hardware, then check it after the first few trail runs, since loose fasteners are the most common reason a light shifts. Stainless hardware resists corrosion, but a light coat of grease on the threads helps if the kit sits near mud or road salt.

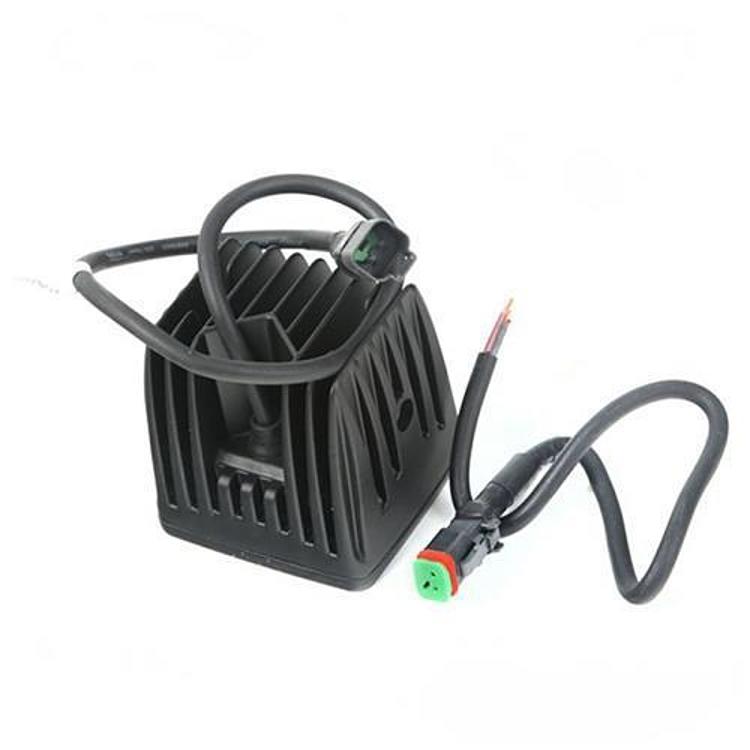

Wiring is a separate job. Use a fused circuit and a relay so the switch carries less load, and route the cable away from moving suspension parts and sharp edges.
- Measure the bar diameter before ordering
- Aim the light after the mount is tight
- Recheck clamp bolts after rough trail use
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 15210.02 |
| UPC | 804314258375 |
| Sold as | Kit |
| Light type | Driving light |
| Light shape | Square |
| Light size | 3 inch |
| Power | 16 watts |
| LED | Four CREE diodes |
| Rated life | 30,000 hours |
| Lens color | Clear |
| Housing | Black powder-coated aluminum |
| Hardware | Stainless steel |
| Mounting type | Universal |
| Size range | 0 to 10 inch |
Vehicle fitment
Rugged Ridge gives this kit universal fit, not a fitment for any named model. The 0 to 10 inch size range is the figure to match against the bar or tube you plan to clamp to.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One square LED light with an X clamp mount, sold as a kit.
Not included: Confirm the number of clamps and the wiring you need for the light before starting.
