Overview

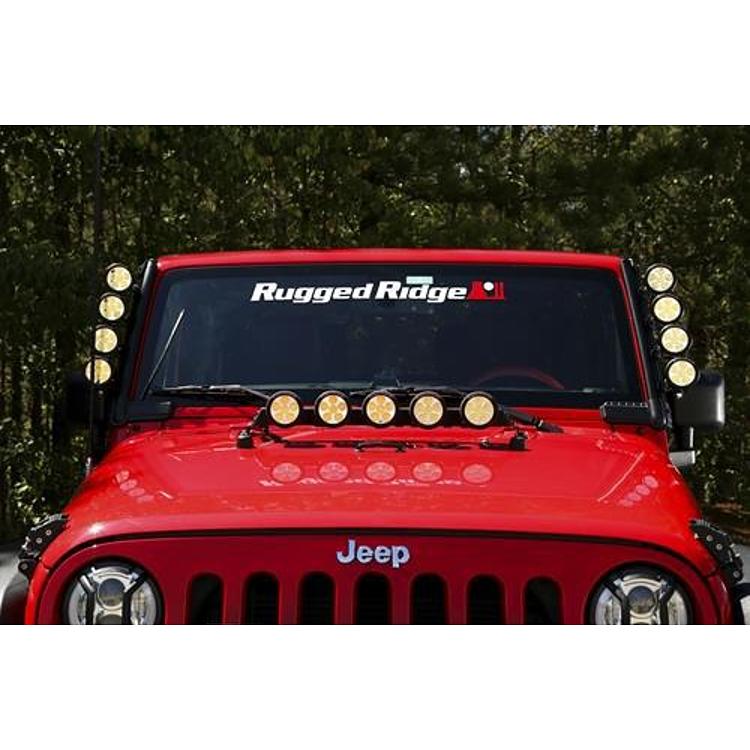

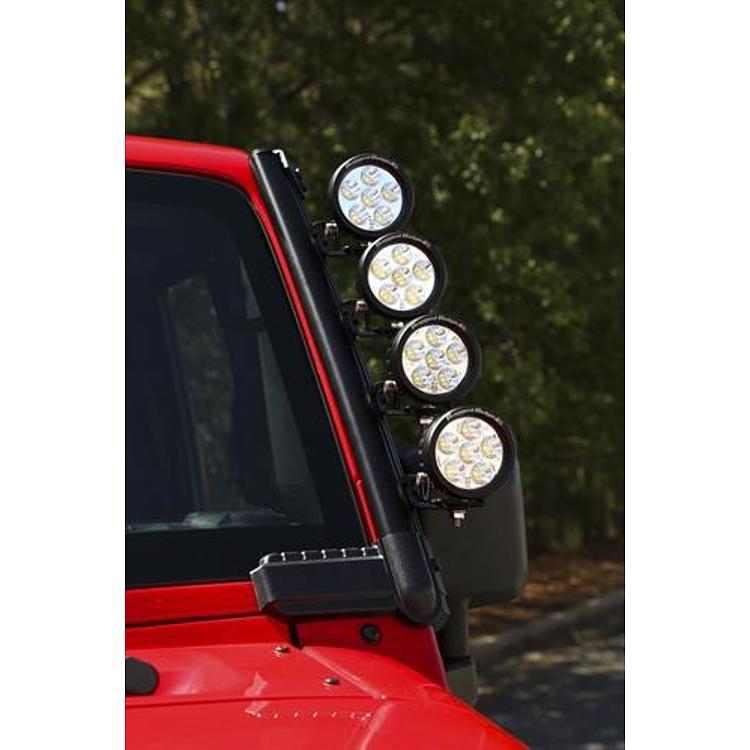

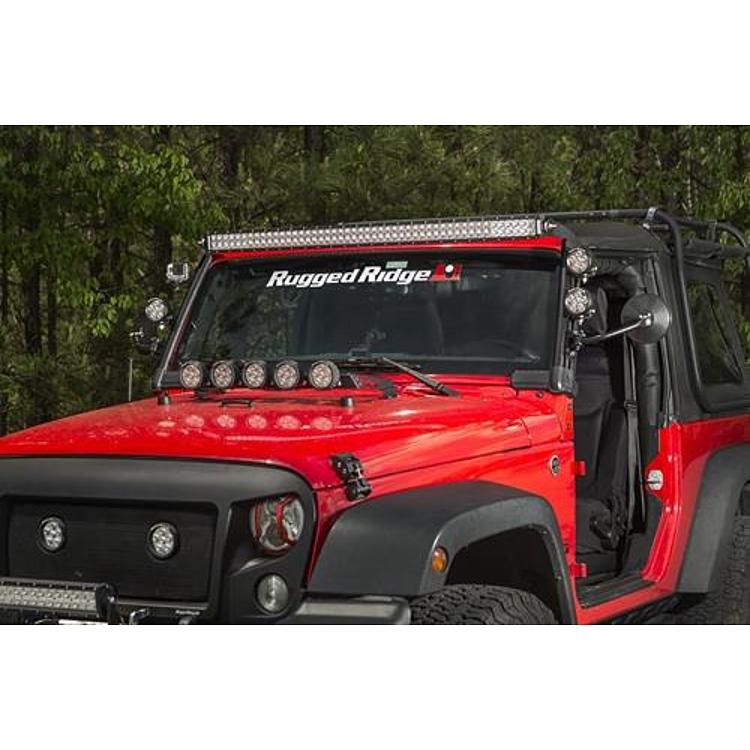

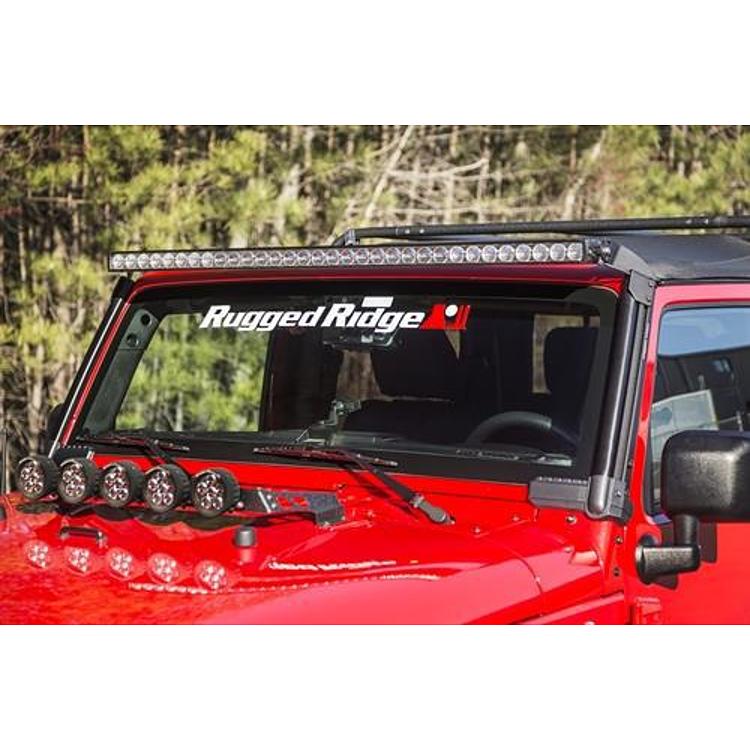

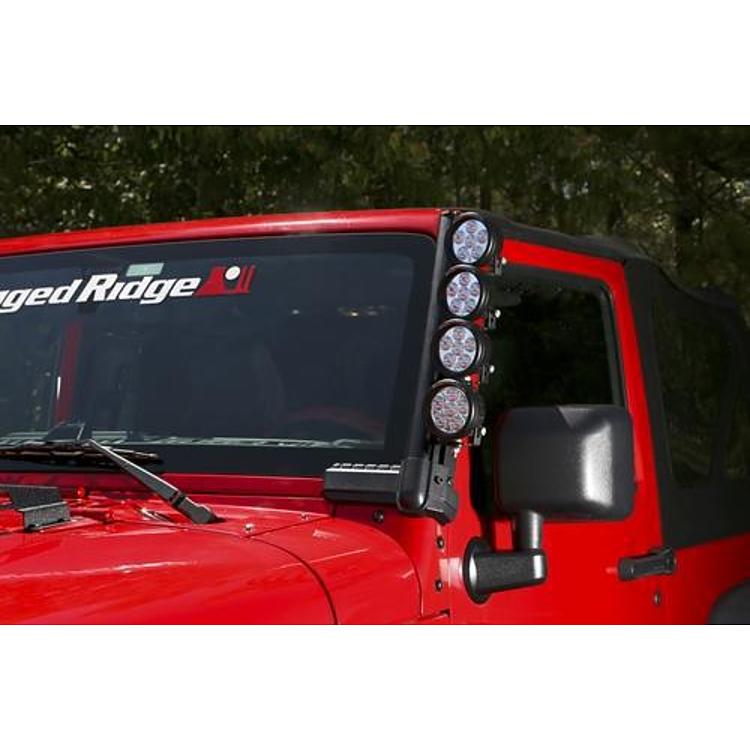

The Rugged Ridge Elite Fast Track mounting system, part number 11232.52, is an A-pillar bracket system for 50-inch LED light bars on a Jeep Wrangler JK. Its channels run the length of each A-pillar, so lights, cameras, trail mirrors and other accessories can be arranged, rearranged and swapped as your setup changes.

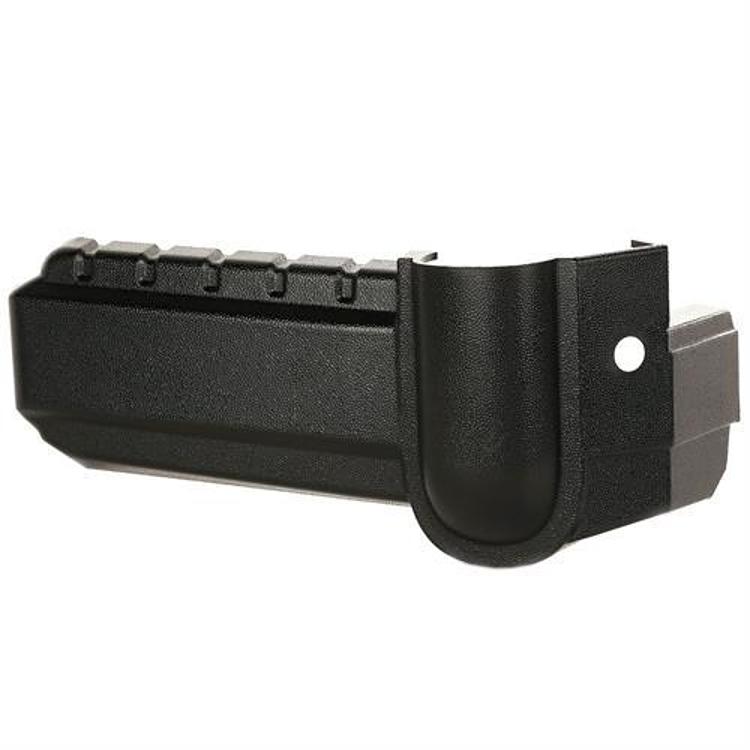

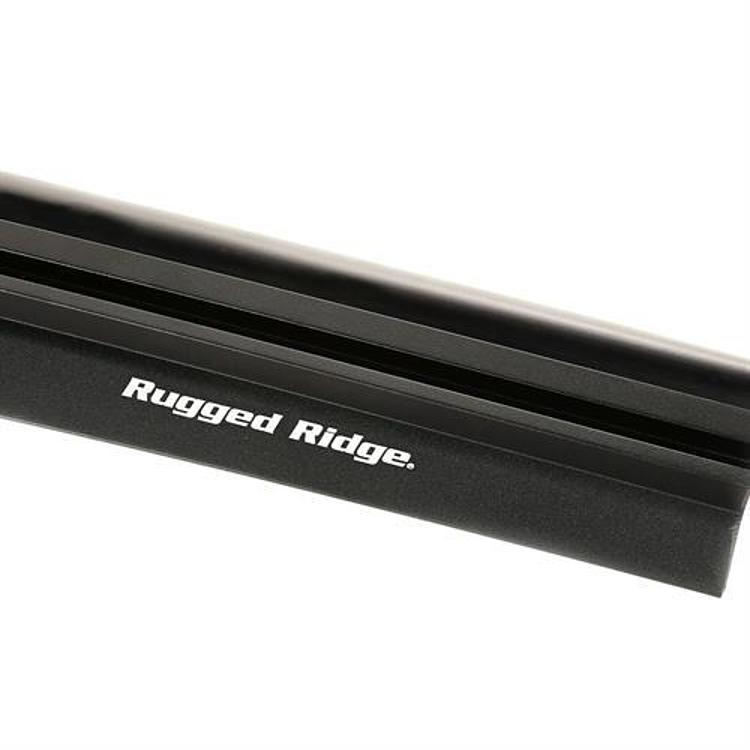

The system is made from 6061 T6 aluminum with steel brackets and Grade 8 mounting hardware. It has a black textured powder coat finish and an aerodynamic shape, and its aluminum body is designed to stay light while handling off-road use. It works with most straight 50-inch LED light bars, including part 15209.06, and with Rigid brand 50-inch curved light bars.
Key features
- Channels along the A-pillars take lights, cameras, trail mirrors and accessories in many layouts
- Works with most straight 50-inch LED light bars, including 15209.06
- Compatible with Rigid brand 50-inch curved light bars
- Constructed of high-quality 6061 T6 aluminum
- Sturdy steel brackets and Grade 8 mounting hardware
- Black textured powder coat finish with an aerodynamic design
- Patent pending design
- Backed by a 5-year limited warranty
Arranging a pillar light setup

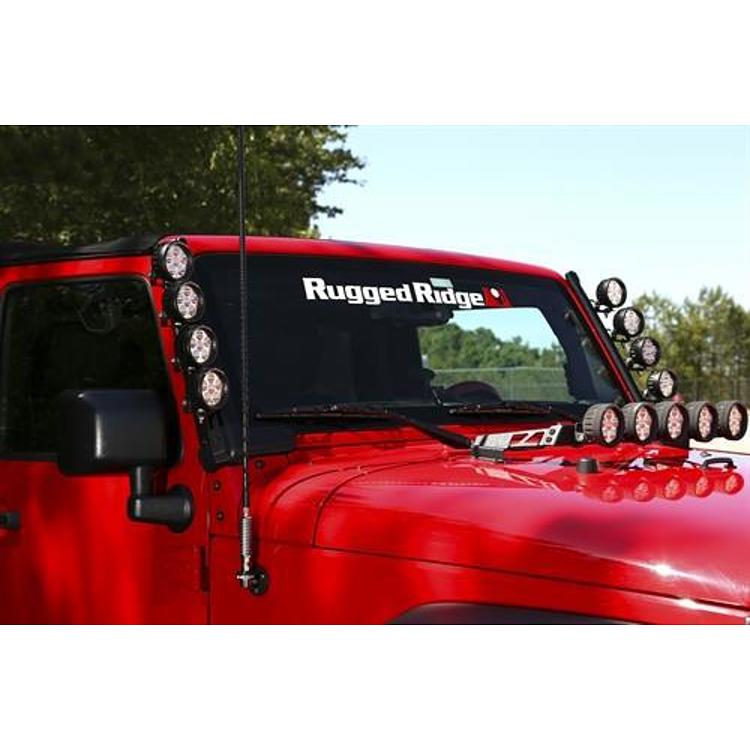

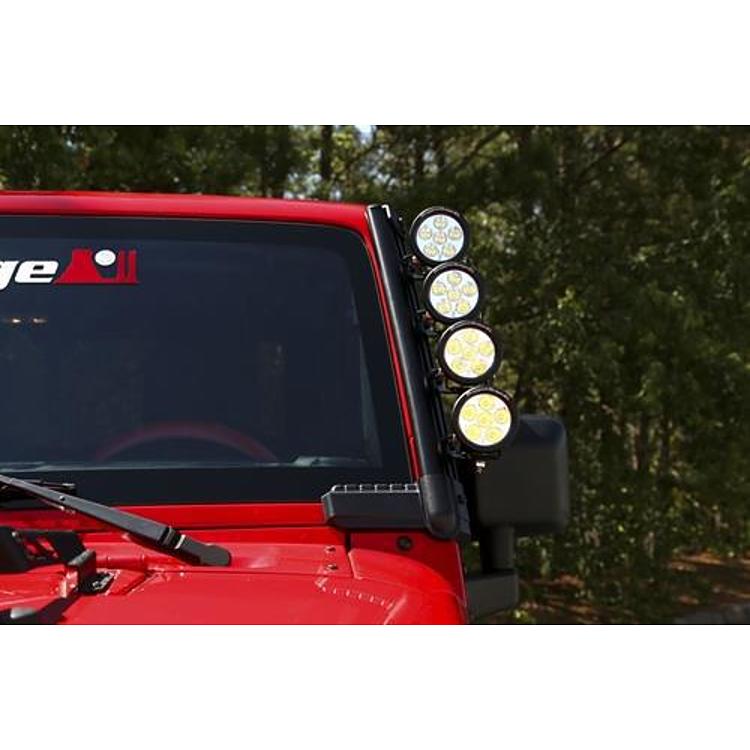

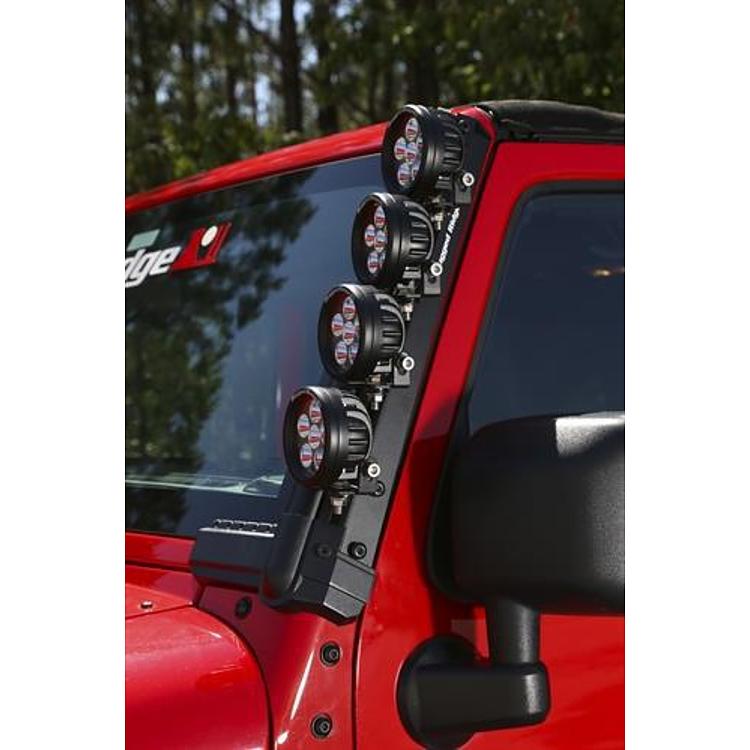

A-pillar mounts put lights at the top corners of the windshield frame, where the beam sits above the hood line and the bar stays out of the way of the wipers. Plan the layout before drilling or tightening anything. Lights, cameras and trail mirrors each need different angles, and a channel system makes it possible to move them later without re-running the mounts.
Because the mounts take weight at the pillars, check the fasteners after rough trail sessions and whenever the bar is moved. Thread lock on the hardware and a quick look at the channel edges can prevent gradual loosening. Keep cable runs slack enough to flex with the body and secure them along the bar so they do not rub against the pillar.
- Dry-fit all accessories before final tightening
- Re-check Grade 8 hardware after the first few trail runs
- Leave slack in cable runs near the pillar joints
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11232.52 |
| UPC | 804314295394 |
| Product type | Light bar mounting system (bracket) |
| Material | 6061 T6 aluminum; steel brackets |
| Hardware | Grade 8 mounting hardware |
| Finish | Black textured powder coat |
| Compatible light bars | Most straight 50-inch LED bars; Rigid brand 50-inch curved bars |
| Warranty | 5-year limited |
Vehicle fitment
The mount is designed to bolt to the A-pillars of a 2007-2018 Jeep Wrangler (JK).
Confirm your vehicle’s year, model and trim before ordering, especially for TJ, LJ or JL Wrangler generations.
Installation notes
Fasten the brackets to the A-pillars with the Grade 8 hardware, then route any light bar wiring through a fused relay. Check local rules for auxiliary lights before using them on public roads.
What’s included
The Elite Fast Track mounting system with steel brackets and Grade 8 mounting hardware.
Not included: the 50-inch LED light bar, which the mount is designed to hold.
