Rugged Ridge Round LED Light and Small X Clamp Kit – 15210.25

Rugged Ridge

Shop Rugged Ridge Offroad Racing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rugged Ridge 15210.25 round LED light and small X-clamp kit
  • Two 3.5-inch round LED lights rated at 18 watts each
  • Two black X-clamps for 1.25 to 2 inch diameter tubing
  • Universal fit design, not built for one specific vehicle
  • UPC 804314268367

Description

Overview

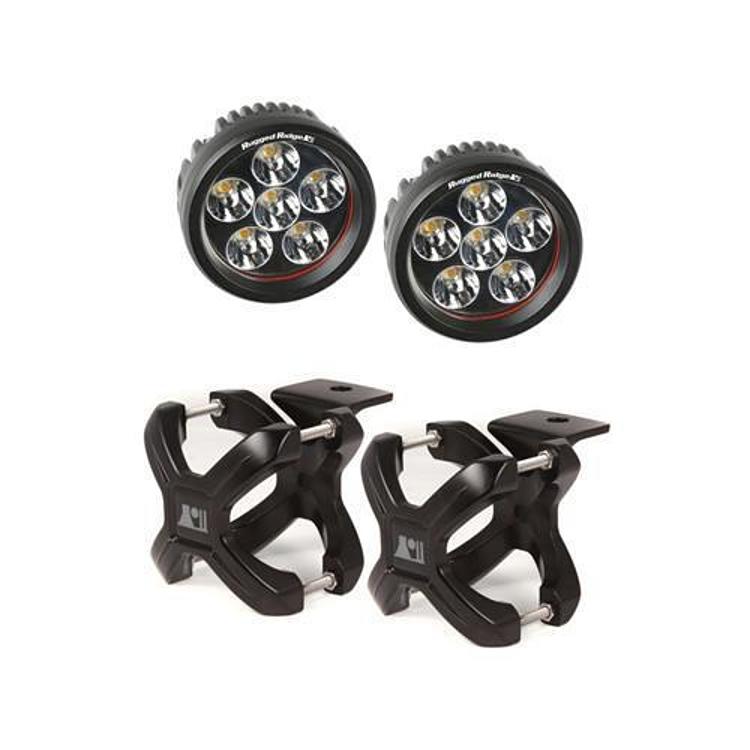

The Rugged Ridge 15210.25 is a round LED light and small X-clamp kit for mounting auxiliary off-road lights to round tubing. The kit pairs two black X-clamps with two 3.5-inch round LED lights rated at 18 watts each. It is a do-it-yourself kit with a straightforward installation.

The clamps are sized for 1.25 to 2 inch diameter tubing. The kit is a universal fit design, so it is not built for a specific year, make or model.

Key features

  • Two black X-clamps for 1.25 to 2 inch diameter tubing
  • Two 3.5-inch round LED lights rated at 18 watts each
  • Smaller X-clamp design, which Rugged Ridge describes as pivotal fit technology
  • Patent numbers 9,610,888, 9,145,084 and D773,110 apply to the design.

Measuring tubing and mounting

Round tubing comes in a range of diameters, and X-clamps only grip well within their rated span. Measure the bar at the spot you plan to use, and avoid tubes with dents or weld seams where the clamp cannot seat evenly. A flat spot on the tube gives the clamp a poor grip under vibration.

Mounting height and angle matter for the beam. Set both lights at the same height so the pattern overlaps cleanly, and aim them slightly down to keep glare out of the eyes of oncoming drivers. Tighten each clamp evenly, then recheck the tightness after the first rough drive.

  • Avoid dented or welded tube sections
  • Level both lights before tightening
  • Retighten clamps after the first rough drive

Specifications

Brand Rugged Ridge
Part number 15210.25
UPC 804314268367
Light type Round LED
Light diameter 3.5 inch
Light power 18 watt per light
Lights in kit 2
Clamp tubing diameter 1.25 to 2 inch
Clamp color Black
Clamps in kit 2
Patent numbers 9,610,888; 9,145,084; D773,110

Vehicle fitment

The kit is a universal fit design, so the lights are not tied to one model.

Measure your bar or tubing before ordering. The X-clamps are sized for 1.25 to 2 inch diameter tubing, and a larger or smaller tube will not fit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Mounting relies on the X-clamps gripping round tubing, so confirm the diameter first. Wire the lights through a fused relay and check local rules on auxiliary lights before driving on public roads.

What’s included

Two black X-clamps and two 3.5-inch round LED lights rated at 18 watts each.

Not included: Wiring, a switch and a relay are not part of the kit.

SKU: RUG15210.25 Categories: ,

Specification

Shipping weight 5.00 lbs
Package dimensions 12.00 × 12.00 × 4.00 in
brands

Questions & Answers

Is the Rugged Ridge 15210.25 a universal fit kit?

Yes, it is a universal fit kit, not built for a specific year, make or model. Whether it works on your vehicle depends on the tubing it clamps to, which must measure 1.25 to 2 inches in diameter.

What diameter tubing do the X-clamps fit?

The two black X-clamps are sized for 1.25 to 2 inch diameter tubing. Measure your bar or tube before ordering to confirm it falls within that range.

What size and power are the lights?

Each light is a 3.5-inch round LED rated at 18 watts, and the kit contains two of them. Compare the 18 watt rating with other lights when choosing.

Does the kit include wiring or a switch?

No wiring, switch or relay is part of the kit. The kit covers the two X-clamps and two round LED lights only, so power wiring must be sourced separately.

Can I mount the X-clamps on square tubing?

Use round tubing in the 1.25 to 2 inch range, since the clamp grips a round section best. Measure the section across its round portion before deciding.

How often should the clamps be checked?

Check them after the first few trail runs, then at regular service intervals. Look for loosened bolts, shifting beams and any sign of wear on the clamp jaws.
