Overview

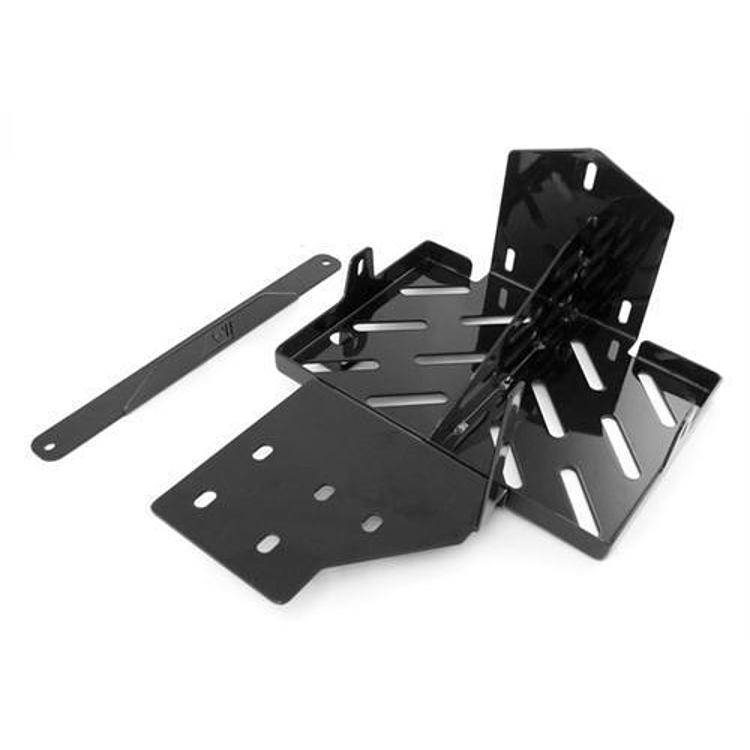

The Rugged Ridge dual battery tray, part number 11214.53, is a black powder coated mounting kit that replaces the factory single battery location with room for two batteries. It fits the 2007–2011 Jeep Wrangler (JK) in 2-door and 4-door models.
Trail rigs with a winch, air compressor, fog or driving lights, a spotlight, an electric fuel pump or a stereo amplifier put extra strain on the electrical system. A winch can draw large amounts of current for an extended period, so a second battery adds reserve. This tray is a mounting kit only and does not include any wiring, though a suggested wiring diagram is included.
Key features
- Mounts two batteries in place of the factory single battery tray
- Black powder coated trays and brackets
- Suitable for 2-door and 4-door Wrangler models
- Suggested wiring diagram included
- Mounting hardware only; wiring is not supplied
Planning a dual battery setup
Adding a second battery changes how the vehicle carries its electrical load, so plan the whole system rather than only the tray. Accessories such as winches, compressors and auxiliary lights can draw heavily, especially when the engine is off. A second battery gives reserve capacity for those loads and for engine starts, but it must be charged and protected correctly to be useful.
Check the existing battery cables, the main fuse or fusible link, and the ground connections before adding a second battery. Heavy loads call for cable sized to the current it carries and fuses placed close to each battery. Secure both batteries firmly in the trays, and keep the positive cable routed away from sharp edges and hot components under the hood.
- Use fused connections on each battery
- Keep the batteries strapped and away from moving parts
- Consider a charging solution for the second battery
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11214.53 |
| UPC | 804314224660 |
| Finish | Black powder coat |
| Battery count | Dual (two batteries) |
| Installation type | Direct fit, upgrade (replaces the factory battery tray) |
| Body styles | 2-door and 4-door models |
| Battery layout | Side-by-side for 70-95 CJ and Wrangler kits; stacked for 97-06 TJ Wrangler kits |
| Compatible battery types | Lead acid or cylindrical sealed gel cell (70-95 CJ and Wrangler); cylindrical sealed gel cell only (97-06 TJ Wrangler) |
Vehicle fitment
Listed fitment is the 2007–2011 Jeep Wrangler (JK), including the 70th Anniversary, Rubicon, Sahara, Sport and X trims, and the Unlimited versions of those trims.
The fitment is the 2007–2011 Jeep Wrangler JK only. Battery-mounting notes for 70-95 CJ, 97-06 TJ and other models do not apply to this part, so do not use them to confirm fit for a TJ, LJ or JL. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The tray takes the place of the factory battery location, so the factory tray is removed as part of the swap. Because the kit has no wiring, the second battery needs its own cabling and fusing, and the suggested wiring diagram is the reference for that work. Battery type depends on the layout: the stacked TJ arrangement takes only cylindrical sealed gel cell batteries, while the side-by-side CJ and Wrangler layout also accepts lead acid. Disconnect the battery before running any new wiring.
What’s included
The kit includes the black powder coated mounting trays and brackets, plus a suggested wiring diagram.
Not included: Wiring and batteries. The kit does not include any wiring or batteries, as it is mounting hardware only.
