Overview

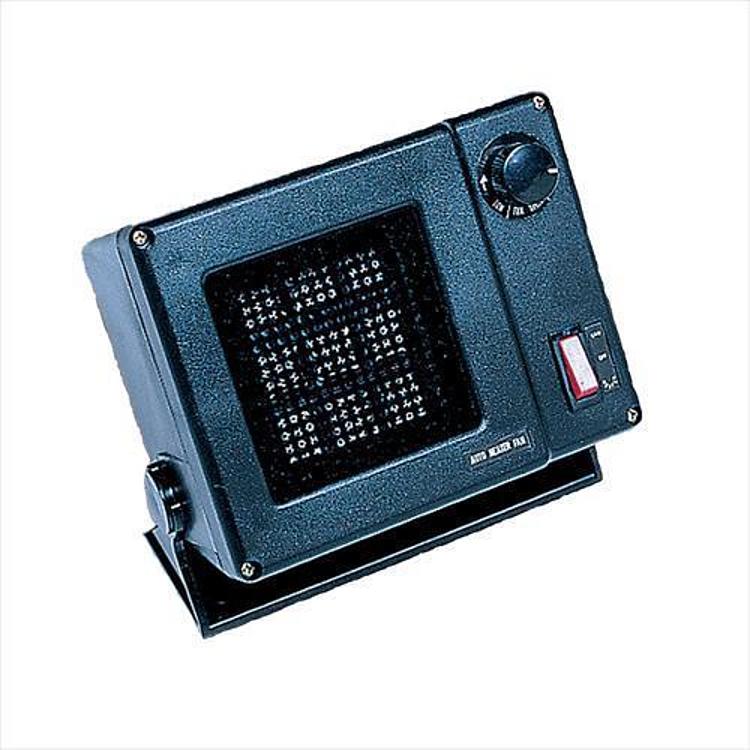

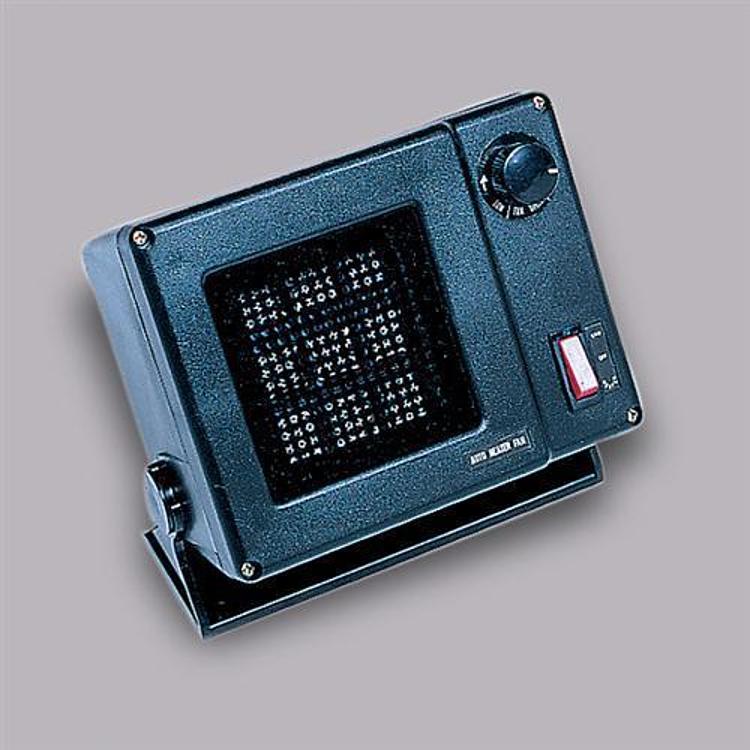

The Rugged Ridge back seat heater (part number 13150.01) is a 300 watt, 12 volt electric heater that warms the vehicle quickly for you and your passengers. Rugged Ridge designs it to mount on the rear wheel well of any Jeep and to wire into the existing electrical system.
No year, model or trim is named for this heater, and some drilling may be required during installation.
Key features
- 300 watt heating output
- 12 volt electric system
- Mounts on the rear wheel well
- Wires to your existing electrical system
- Designed for simple operation and quick warmth.
Drilling and wiring prep
Mounting on a rear wheel well means working with body panels, so measure twice before drilling. Check what sits behind the panel, including fuel lines, brake lines, harnesses and seat belt anchors, and keep drill depth shallow. Remove burrs and seal bare metal with touch-up paint to slow rust at the new holes.
Wiring a heater into the existing system is the other key step. Find a fused circuit rated for the load, and route the leads away from moving parts and heat sources. Use proper connectors rather than tapping wires, and test the heater on a short run before a long drive.
- Mark the spot with masking tape first
- Use a drill bit sized for the fasteners
- Protect the wheel well from rust after drilling
- Recheck clamps after the first drive
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 13150.01 |
| UPC | 804314119034 |
| Power | 300 watt |
| Voltage | 12 volt |
| Type | Electric |
| Mounting location | Rear wheel well |
Vehicle fitment
It is designed for the rear wheel well of any Jeep. Check the mounting location and your model year before deciding it suits your vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Some drilling may be required, so mark the mounting spot on the rear wheel well before cutting or drilling. Have a qualified installer connect the 12 volt wiring to your existing electrical system and check the circuit before first use.
What’s included
Plan mounting and wiring hardware before starting, since it is not part of this item.
Not included: Mounting hardware and wiring supplies must be sourced separately for this item.
