Overview

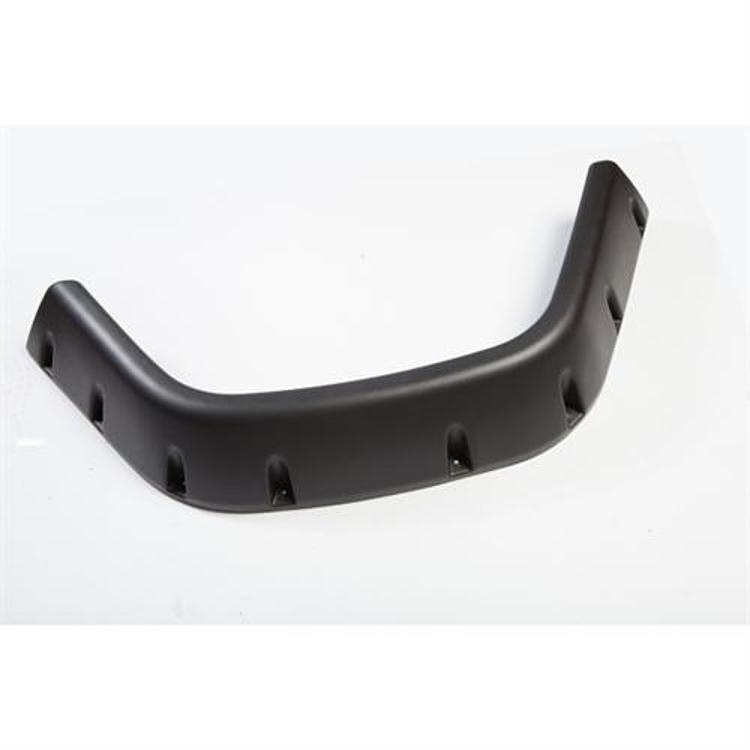

The Rugged Ridge All Terrain Fender Flare, part number 11630.03, is a pocket-style rear left flare for the 2004–2006 Jeep Wrangler LJ and the 1997–2006 Jeep Wrangler TJ. It is listed under Rugged Ridge part number RUG11630.03 and is designed to protect the vehicle’s paint from flying rocks and mud.
The flare is made of UV-treated ABS with a slight texture and is fade-resistant. It has a pocket style and can be painted to match the body.
Each flare mounts to the factory mounting points with rust-proof stainless fasteners. The factory side marker lights stay in place. Drilling and trimming are required for installation.
Key features
- Pocket-style design for an aggressive off-road look
- Rear left position, left side only
- UV-treated ABS with a slight texture
- Paintable finish, matched to the body color
- Fade-resistant material
- Rust-proof stainless steel fasteners
- Retains factory side marker lights
Drilling and trimming for install
Pocket-style flares sit tight against the body and wheel arch, so the mounting edge does most of the work. Because drilling and trimming are part of installation, plan the work before cutting. Mark hole locations with masking tape, double-check the spacing against the fender and wheel arch, and drill slowly to avoid cracking the body panel.
Protect the wiring and side marker connections when the flare is removed or adjusted, since a pinched harness can cause lighting faults. Clean and seal any bare edges that were cut, then use the stainless fasteners to limit rust where metal meets the flare. Recheck the fit after the first few drives, especially near the rear wheel.
- Tape and mark holes before drilling
- Deburr cut edges before fitting
- Check side marker lights after installation
- Recheck fasteners after rough trail runs
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11630.03 (also RUG11630.03) |
| UPC | 70000655947 |
| Position | Rear left |
| Quantity | One flare |
| Material | UV-treated ABS |
| Finish | Paintable, slight texture |
| Fasteners | Stainless steel |
| Width/coverage | Stock |
| Warranty | 5-year limited |
| Fitment type | Direct fit |
Vehicle fitment
Fits the 2004–2006 Jeep Wrangler LJ, Unlimited and Unlimited Rubicon, and the 1997–2006 Jeep Wrangler TJ, including the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X.
Wrangler models from other generations, including the YJ, JK and JL, are not covered. Check fit against your vehicle’s year, model and trim before ordering.
Installation notes
Drilling and trimming are required, so the rear left flare will need modification to mount. The flare is designed to fit the factory mounting points.
What’s included
One rear left All Terrain fender flare with stainless steel fasteners.
