Overview

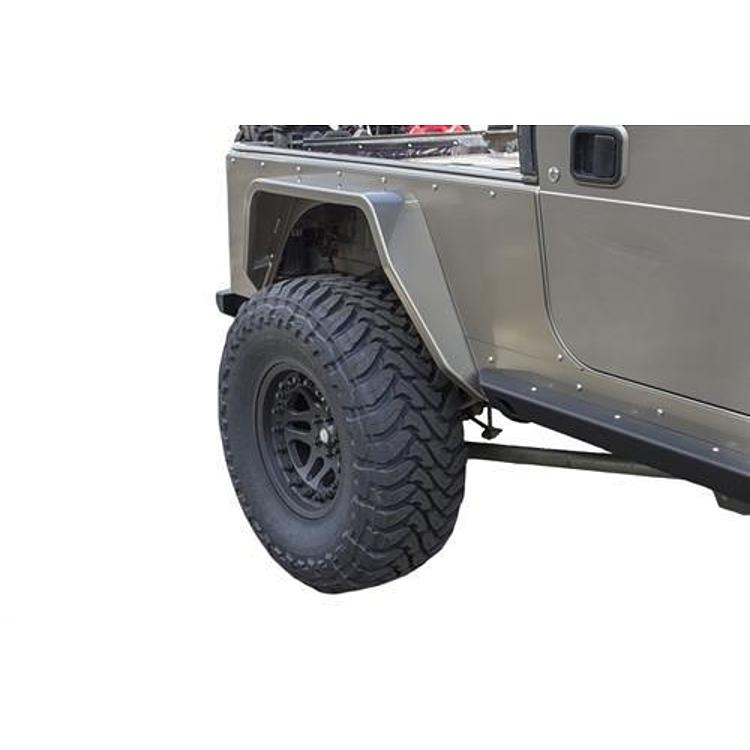

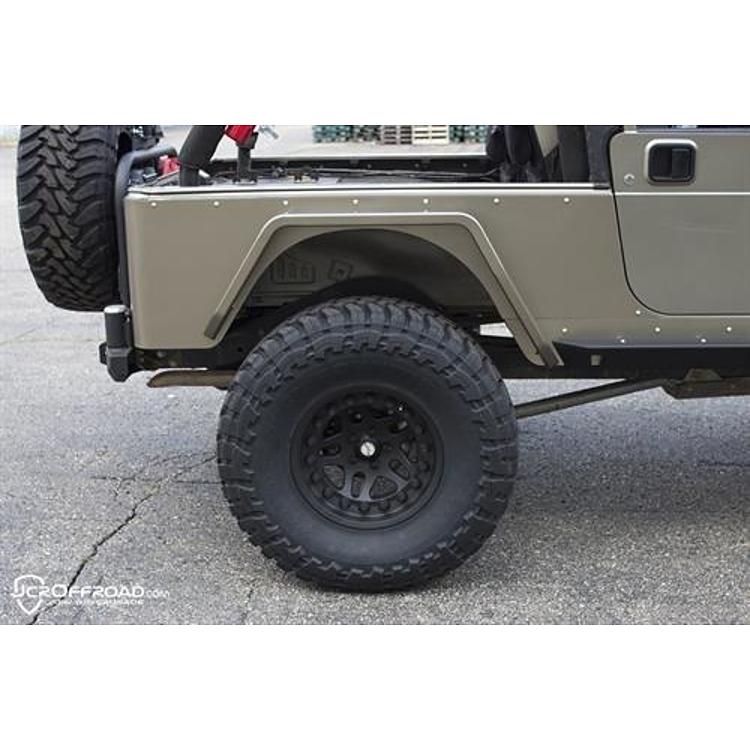

The JcrOffroad SWB Vanguard Rear Fenders, part number SWBRX-V-TJ, are fully fabricated rear fenders for Jeep Wranglers. They are CNC cut and formed from 3/16 inch steel and give 6 inches of tire coverage. JcrOffroad lists them for the 2004–2006 Wrangler LJ in the Unlimited and Unlimited Rubicon trims, the 1997–2006 Wrangler TJ in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims, and the 1987–1995 Wrangler YJ in the Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.
The rear fenders add clearance for larger tires with less lift. They are sold as a pair and include mounting hardware.
Key features

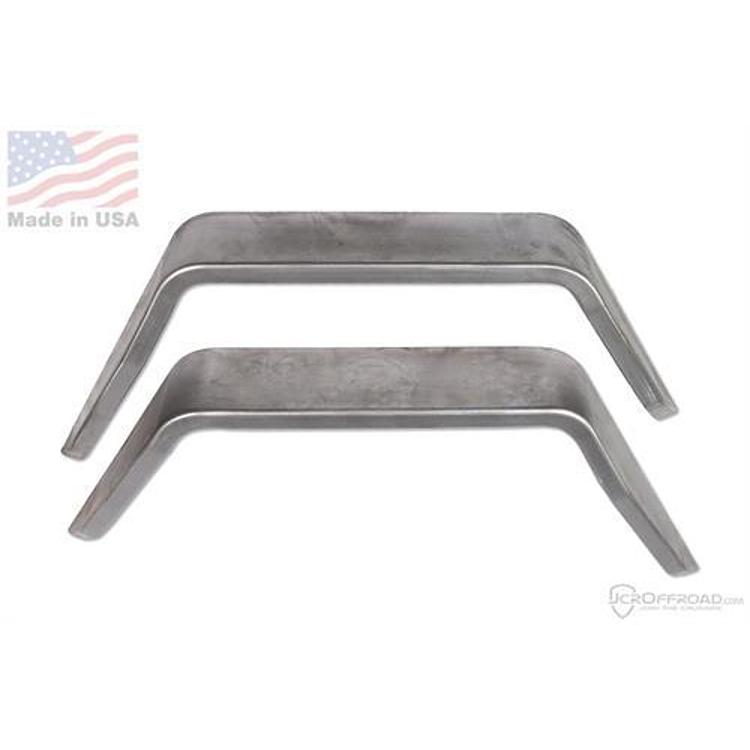

- CNC cut and formed from 3/16 inch steel
- Fully fabricated fender
- 6 inch tire coverage
- Added clearance for larger tires with less lift
- Bolt-on installation with included mounting hardware
- Made in the USA
Clearance and tire choice
Rear fenders matter most when the tires grow past the stock wheel opening. A fender that covers more of the tire keeps mud and stones away from the body, but it also means the tire must be checked against the fender edge at full lock and full travel. Clearance changes with suspension height, so a fender that works at one setup may need a second look after a lift or a new tire width.
Wrangler fenders also interact with the rest of the rear body. Mounting points, bumper position and the fender edge all affect how the tire sits, so run through the fit before final tightening. Some owners replace the tire first and then fit the fenders, while others fit the fenders and then choose tires that suit the gap. Both approaches work when clearance is checked on the actual vehicle.
- Measure clearance at full steering lock
- Check for rubbing on the body edge after a test drive
- Recheck the mounting hardware after the first few drives
Specifications
| Brand | JcrOffroad |
|---|---|
| Part number | SWBRX-V-TJ |
| Type | Rear fender |
| Material | 3/16 inch steel |
| Tire coverage | 6 inches |
| Quantity | Pair |
| Wheelbase | SWB, per title |
Vehicle fitment
JcrOffroad lists these fenders for the 2004–2006 Jeep Wrangler LJ, the 1997–2006 Wrangler TJ and the 1987–1995 Wrangler YJ, in the trims named above.
Wrangler JK and JL models and other Jeep vehicles are not in the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The fenders bolt on with mounting hardware, so cutting is not needed. Check the rear fender clearance once they are fitted, since they give 6 inches of tire coverage.
What’s included
A pair of rear fenders with mounting hardware.
