Rigid Industries SR-M2 Series Amber Wide LED Light – 91212

Rigid Industries

Shop Rigid Industries Offroad Racing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rigid Industries SR-M2 Series Amber Wide LED Light, part number 91212
  • Magnesium housing; the light weighs 7 ounces including hardware
  • Draws as low as 0.63 amps and runs on a 7 to 36 volt system
  • Universal fit with bracket mounting; 3 by 1.75 inch body
  • Marine Grade and flush mount versions are described separately

Description

Overview

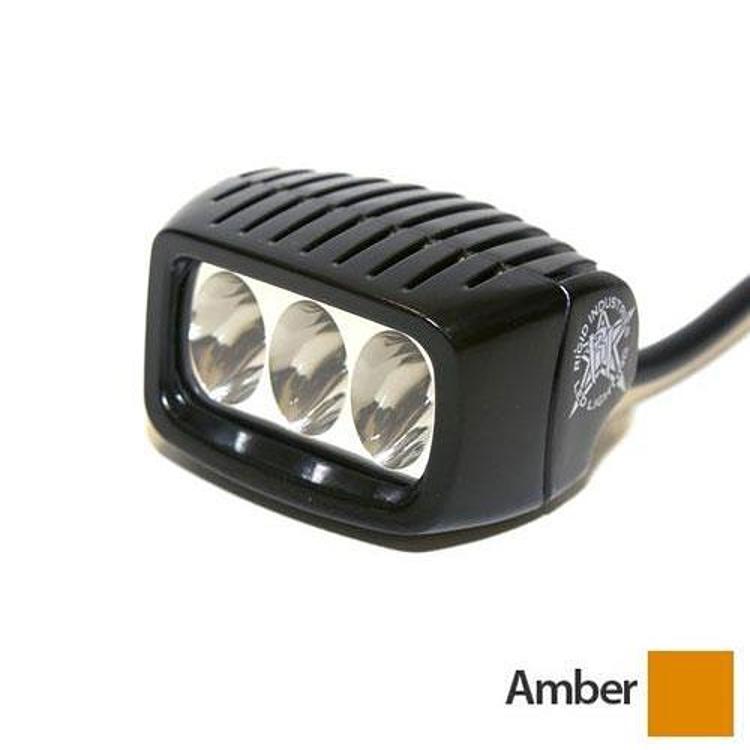

The Rigid Industries SR-M2 Series Amber Wide LED Light, part number 91212, is a small amber LED light with bracket mounting and universal fit. Its magnesium housing weighs 7 ounces including hardware. At 3 inches wide and 1.75 inches tall, it fits tight spots where a larger light would be hard to place.

The light combines a hybrid spot optic with a spectre optic rated at 1050 raw lumens in a compact body. A diffusion lens version is also available, which separates the beam outward at a 60-degree angle for area lighting. It draws as low as 0.63 amps and runs on any 7 to 36 volt system.

The light carries a limited lifetime warranty. It belongs to the Single Row Mini family, a compact design. The amber lens is the color, and the light is a wide beam type with a square light shape.

Key features

  • Magnesium housing; the light weighs 7 ounces including hardware
  • Measures 3 inches wide by 1.75 inches tall
  • Spectre optic rated at 1050 raw lumens, alongside a hybrid spot optic
  • Draws as low as 0.63 amps on a 7 to 36 volt system
  • Amber lens with LED bulb type
  • Limited lifetime warranty.

Choosing a compact amber light

Amber lights are often used where a softer, less intrusive light is wanted, such as marking a work area, a trailer or the corners of a vehicle. Their color is easier on night vision than white, and in some settings amber is preferred. A compact body makes these lights practical in tight spots where mounting room is limited, but it also means the bracket and the wire route have to be planned carefully before drilling.

Electrical planning matters for any LED light with a wide voltage range. Check the vehicle’s electrical system voltage before connecting, and wire the light through a fuse and relay so the switch and factory wiring are protected. Inspect the finish for scratches or chips and touch up any spots where bare metal shows. Check the bracket fasteners after rough use, since loose mounts can change the aim and stress the wiring.

Specifications

Brand Rigid Industries
Part number 91212
UPC 815711013092
Series SR-M2 Series Amber Wide
Lens color Amber
Bulb type LED
Light type Wide beam
Light shape Square
Housing Magnesium
Weight 7 ounces including hardware
Dimensions 3 inches wide by 1.75 inches tall
Current draw As low as 0.63 amps
Voltage 7 to 36 volt
Output 1050 raw lumens (spectre optic)
Mounting type Bracket
Size 0 to 10 inches
Fitment Universal fit
Units Single
Warranty Limited lifetime.

Vehicle fitment

Universal fit means this light is not tied to one vehicle; the bracket position and the wiring route decide where it works. Use the 0 to 10 inch size range and the 3 by 1.75 inch body as your check before you choose a spot.

Rigid’s Marine Grade version of the SR-M sits in its M-Series family, with a 3-stage UV 3800 powder coat, ASTM B117 salt/fog testing, an IP68 rating and stainless steel hardware. A flush mount SR-M is also described separately, so match the part number to the version you need.

Installation notes

A flush mount version needs only a flat surface and access for wiring. This bracket model needs room for its bracket and a clear route for the leads. Wire it through a fuse and relay to protect the circuit, and check local rules for auxiliary lights before using them on public roads.

What’s included

The package contains one SR-M2 Series Amber Wide LED Light, and the 7 ounce weight includes the mounting hardware.

Not included: Wiring harness and switch are not included.

SKU: RIG91212 Categories: ,

Specification

Shipping weight 1.00 lbs
Package dimensions 10.00 × 7.00 × 3.00 in
brands

Questions & Answers

Is the Rigid SR-M2 Amber Wide LED Light part 91212 a marine grade light?

No. Part 91212 has bracket mounting and no marine finish. Rigid offers a separate Marine Grade version in its M-Series family with a UV powder coat, salt fog rating, IP68 rating and stainless steel hardware.

How much current does the SR-M2 Amber Wide draw?

It draws as low as 0.63 amps and runs on a 7 to 36 volt system. Wire it through a fuse and relay, and check your vehicle's electrical system voltage before connecting it.

What does part 91212 weigh and measure?

It weighs 7 ounces including hardware. The magnesium housing measures 3 inches wide by 1.75 inches tall, which makes it small enough for tight mounting spots.

Which vehicles does the SR-M2 Amber Wide fit?

It is universal fit, so it is not tied to a year, model or trim. Choose the mounting spot first, then check the 0 to 10 inch size range against that location.

Does an amber light need a different lens cleaning routine?

No special routine is needed. Clean the lens with mild soap and water and a soft cloth, and avoid abrasive pads that can scratch the surface. Inspect the seal and bracket after heavy use, and replace any cracked lens before moisture reaches the LEDs.

How do I tell whether the bracket needs replacing?

Replace the bracket if it shows cracks, bent sections, or threads that no longer hold the fasteners firmly. Loose mounts can change the aim and stress the wiring, so tighten fasteners after the first few uses and recheck them periodically.
