Overview

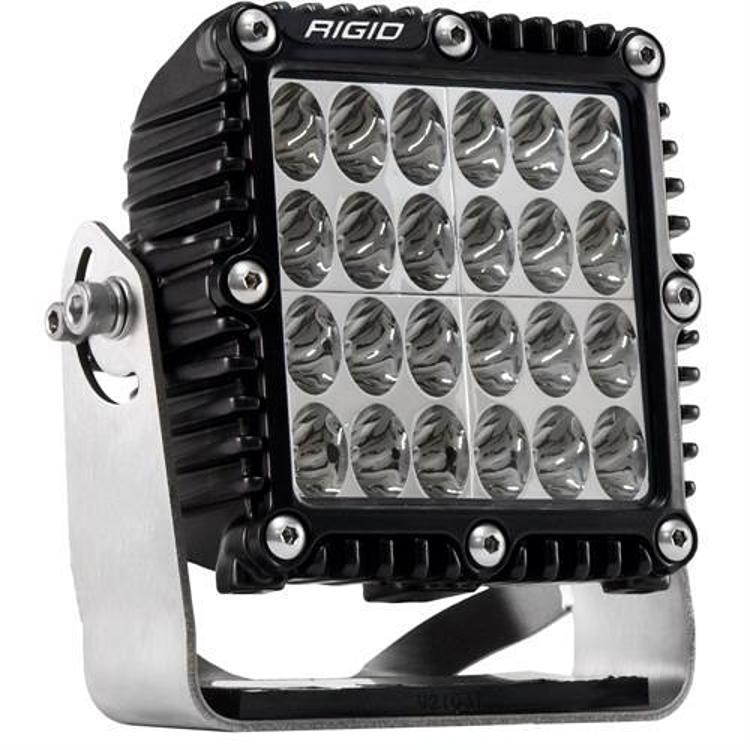

The Rigid Industries Q Series Pro driving LED light in black, part number 544313, is a large square driving light that combines four Dually and D2 optics in one heavy-duty housing. Its oval-shaped reflector projects both spot and flood beam patterns, so it gives reach at the center and wide coverage at the sides. It is a universal fit light for agriculture, fire and rescue, commercial truck, marine, off-road and power sports use.

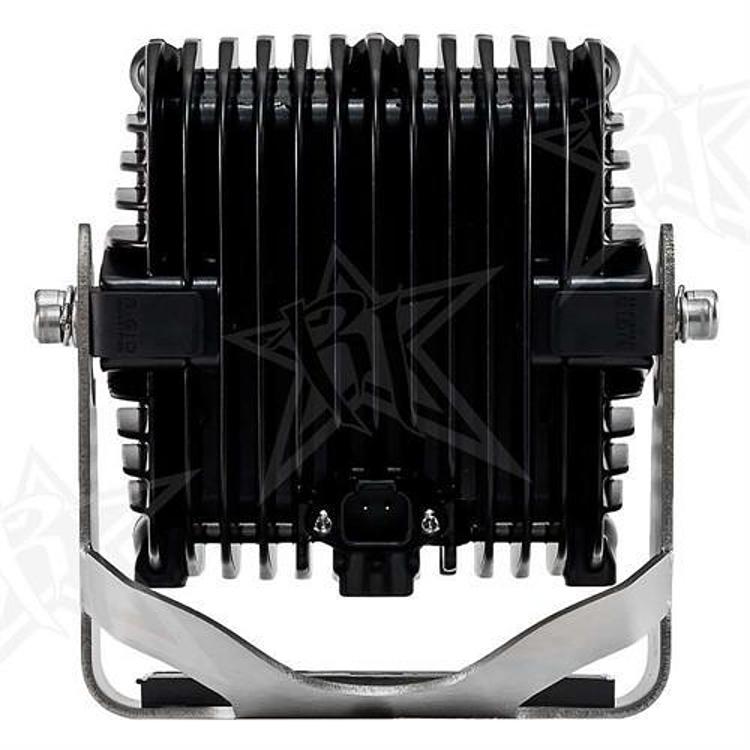

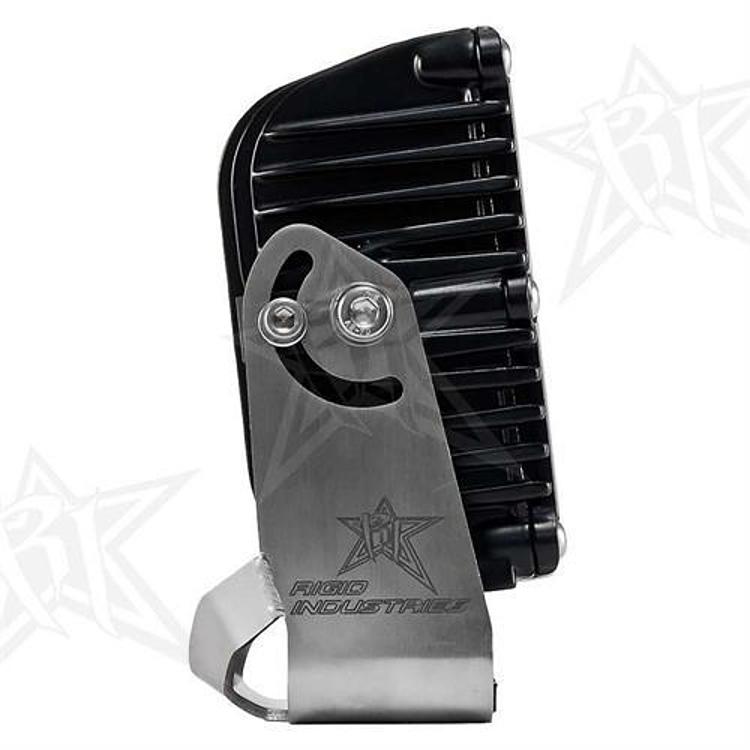

Rigid’s engineers designed the driving version of the Specter optics system to throw light far and wide rather than in a round cone. The oblong beam keeps a bright center hot spot while spreading light horizontally, which helps with wide-track driving and work sites. The housing mounts on a vibration isolator and a 304 stainless bracket.
Key features
- Oval reflector creates a driving pattern with spot and flood beams
- Bright center hot spot with wide horizontal dispersion
- Four Dually and D2 optics combined in one housing
- Q-Series covers offer a 50% forward projecting and 50% area light option
- Vibration isolator and 304 stainless bracket included
- Heavy-duty construction for commercial and off-road environments
Driving pattern and mounting height
The oval reflector makes this light behave differently from a round pod. Mounting height and angle shape the result as much as the optic does. A higher mount pushes the center hot spot farther down the road, while a lower mount puts more of the flood close to the vehicle. Set the aim with the vehicle level, and check the pattern at night on the surface you plan to use.
Heavy housings put stress on brackets and the surfaces they bolt to. Use the isolator as designed, tighten fasteners evenly and check them after rough sections. A light that works loose will drift out of aim and can damage its own bracket over time.
- Aim with the vehicle level on flat ground
- Check fasteners after rough sections
- Keep the isolator in place as designed
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 544313 |
| Model | Q Series Pro Driving LED Light |
| Color | Black |
| Lens color | Clear |
| Bulb type | LED |
| Light shape | Square |
| Size | 6.7 Inch |
| Height | 6.79 in |
| Width | 6.75 in |
| Depth | 3.42 in |
| Bracket | 304 stainless |
| Sold as | Single |
| Fitment | Universal fit |
Vehicle fitment
It is universal fit, so it is not made for one vehicle. Its 6.79 in height and 6.75 in width make it a large mount, so the bracket must clear the surface it attaches to. Plan the mounting location around those dimensions.
Installation notes
The oversized housing needs a strong, flat mount, and the vibration isolator should be used as designed to protect the LEDs from shock. Wire the light through a fuse and relay, and check the rules for driving lights where you drive before fitting it to a road vehicle.
What’s included
A vibration isolator and a 304 stainless bracket come with the light. Check the package contents for a wiring harness and switch before planning the install.
