Overview

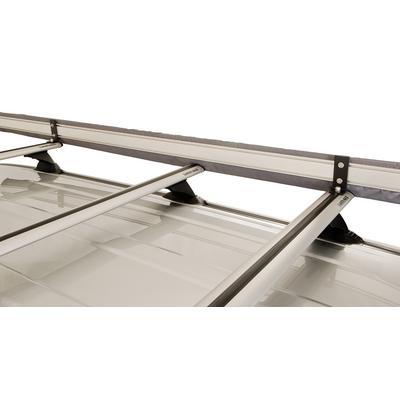

The Rhino-Rack Awning Bracket Fit Kit, part number RHO31111, is a universal awning bracket kit that attaches a shade awning to a Rhino-Rack roof rack system. It is designed to fit Rhino-Rack Sunseeker awnings and non Rhino-Rack awnings, so you can use an awning you already own. The kit connects to the Rhino-Rack Vortex, Heavy Duty Bars, Pioneer Platform and Pioneer Elevation roof racks.
Installation means sliding the brackets into the cross bar channel and then attaching the awning. The brackets are 5mm mild steel with zinc plating and a black powder coat, which is designed to resist corrosion.
Key features
- Attaches a shade awning to a Rhino-Rack roof rack system.
- Fits Rhino-Rack Sunseeker awnings and non Rhino-Rack awnings.
- Compatible with Vortex, Heavy Duty Bars, Pioneer Platform and Pioneer Elevation roof racks.
- Brackets slide into the cross bar channel.
- Steel construction with zinc plating and black powder coat.
- Corrosion resistant finish.
Using an awning with roof racks
An awning adds shade and shelter, but it also adds wind load and leverage on the roof rack. Attach it firmly and check that the awning is stable before driving, since a loose awning can flap, rattle or strain the mounting points.
Pack the awning and its brackets so they do not collide with other roof rack items. When the awning is folded or stored, keep the brackets clean and dry, and inspect the powder coat for chips that could let steel rust.
Plan awning use around weather. Strong wind and heavy rain put more force on the brackets, so take the awning down when conditions are poor and recheck fastening after a rough drive.
- Check the awning is stable before driving
- Take the awning down in strong wind
- Recheck fastening after rough roads
Specifications
| Brand | Rhino-Rack USA |
|---|---|
| Part number | RHO31111 |
| Material | 5mm mild steel |
| Finish | Zinc plating with black powder coat |
| Compatible awnings | Rhino-Rack Sunseeker and non Rhino-Rack awnings |
| Compatible roof racks | Vortex, Heavy Duty Bars, Pioneer Platform, Pioneer Elevation |
Vehicle fitment
Universal fit is shown, but this kit mounts to Rhino-Rack roof rack crossbars, so compatibility depends on the rack rather than the vehicle. Confirm the roof rack system before ordering.
No specific vehicle models or years are named. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

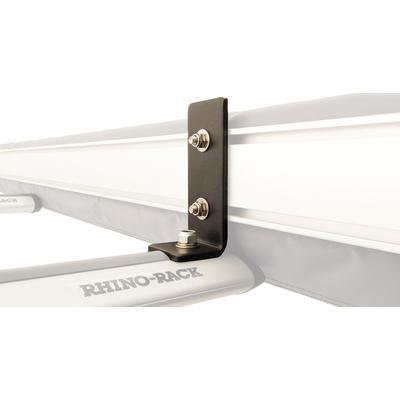

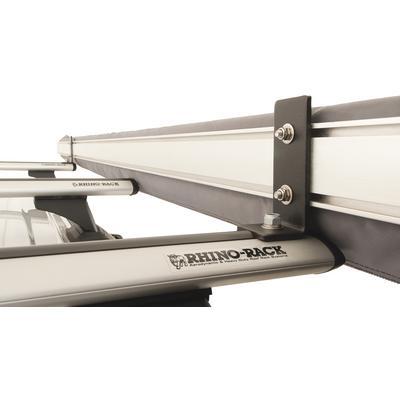

The brackets slide into the cross bar channel and the awning attaches to them. Check that the awning sits correctly on the brackets before tightening anything.

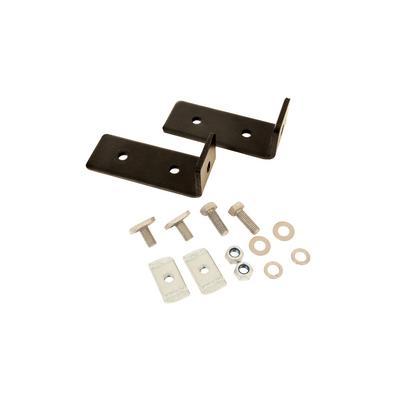

What’s included
The kit is the Awning Bracket Fit Kit itself. Check the packaging for the complete set of brackets and hardware before starting.
Not included: the roof rack and the awning, which are needed separately to use the kit.
