Overview

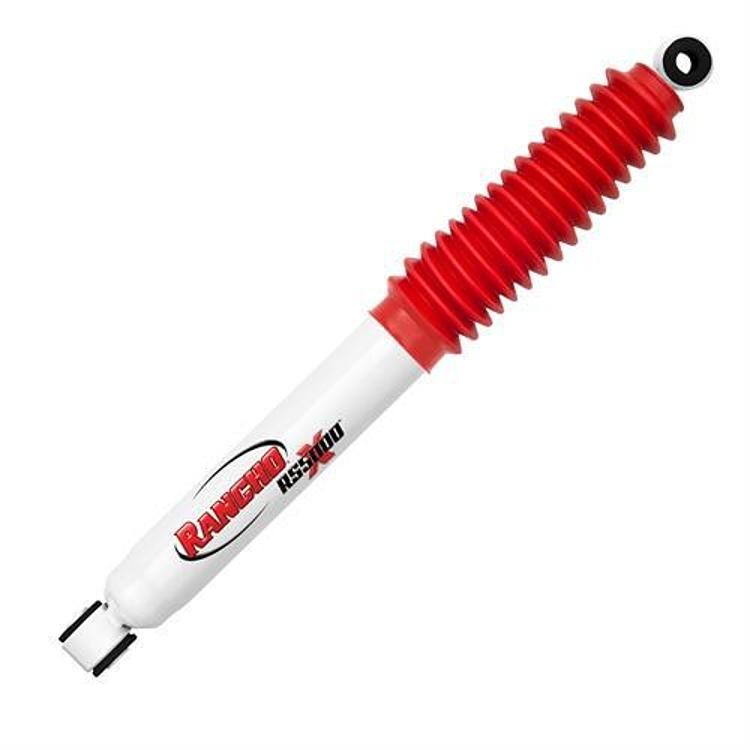

The Rancho RS55264 is an RS5000X Series shock absorber measuring 24.42 in. extended, 15.26 in. collapsed and 9.16 in. stroke.
Rancho credits this line’s rebound valving and advanced compression phase with better handling and performance on and off-road. The part has no vehicle fitment listed, so confirm the application before you order.
Key features
- Patented rebound valving system
- Advanced compression phase built into the shock’s design
- Developed by Rancho ride engineers for on- and off-road performance
- Direct fit wording in the manufacturer description
Choosing a replacement shock
Start by matching the mounted length of the shock you are removing before comparing other features. Measure eye-to-eye length with the suspension at ride height, then compare it with the extended and collapsed figures for the replacement. A shock that is too long or too short changes ride height and limits available travel.
Shocks are often replaced in pairs on the same axle so damping stays even from side to side. When replacing one, inspect the mounting bushings and hardware, since worn parts can shift how the new shock sits. Look for oil residue, dents in the body and split bump stops, because these signal that the old unit has reached the end of its service life.
- Measure the existing shock before ordering
- Replace in pairs on the same axle
- Inspect bushings and hardware at install
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS55264 |
| UPC | 10039703007631 |
| Product line | RS5000X Series |
| Extended length | 24.42 in. |
| Collapsed length | 15.26 in. |
| Stroke | 9.16 in. |
Vehicle fitment
The RS55264 is sold as a direct-fit shock with no vehicle application named. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting the job.
