Overview

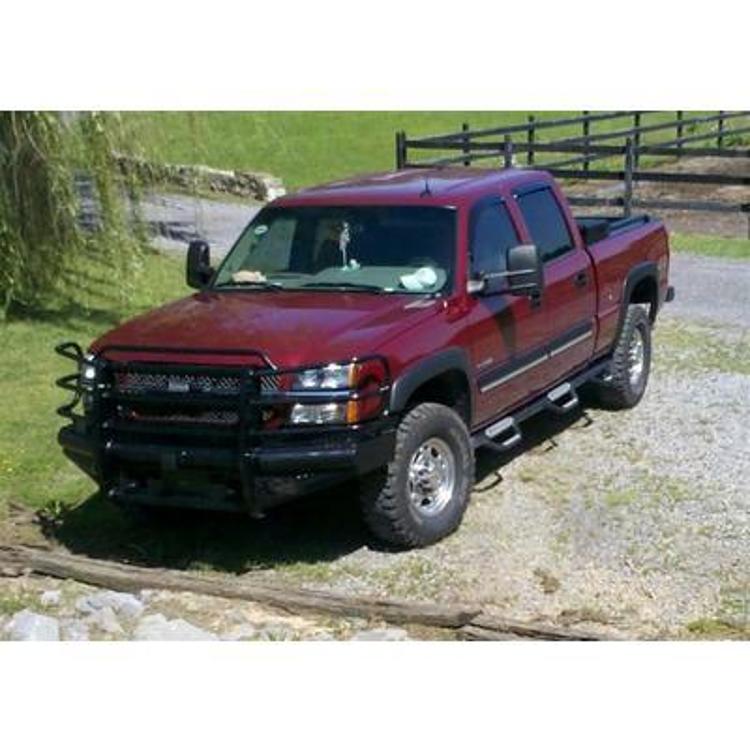

The Ranch Hand FBC031BLR is a Legend Series front bumper replacement for the Chevrolet Silverado 2500 HD and 3500 from 2003 to 2006, plus the 2007 Silverado Classic. It retains the factory tow hook and fog lights.
The bumper bolts to the frame as a single welded piece built from 4in. schedule 40 pipe and diamond plate. A 12 gauge tubing grille guard wraps around the headlights, and the punched plate grille insert is cut for the specific vehicle. A 2in. receiver is standard.
Ranch Hand says most Legend applications keep the tow hooks and factory fog lights, and this 2003–2007 Silverado HD version is one of them. The bumper is a frame-mounted, one-piece weldment, so it replaces the factory bumper as a single unit rather than adding to it, and the grille guard portion is built into the same piece.
Key features
- Retains the factory tow hook and fog lights
- Frame-mounted, one-piece fully welded construction
- 4in. schedule 40 pipe and diamond plate
- 12 gauge tubing grille guard with wraparound headlight protection
- Vehicle-specific punched plate grille insert
- Standard 2in. receiver
- Super polyester black powdercoat finish
Wiring care for retained fog lights
Keeping the factory fog lights in place means the cutouts and wiring stay in their original positions. Before installation, check the harness connectors and fog light housings for corrosion, because the new bumper will sit over them. Clean and dry the connectors, and apply dielectric grease to the plugs if the truck has seen salt or frequent washing. Good wiring care now prevents intermittent lights later.
Powder coat protects steel well, but chips expose bare metal. Touch up scratches from the mounting process with matching primer and paint before the bumper is exposed to moisture. Inspect the coating at least once a year, paying attention to the lower edge and the brackets where stones and road spray collect. A light wash with mild soap after winter driving helps the finish last.
Specifications
| Brand | Ranch Hand |
|---|---|
| Part number | FBC031BLR |
| UPC | 848917001112 |
| Series | Legend |
| Position | Front |
| Width | Full |
| Material | Steel; body of 4in. schedule 40 pipe with diamond plate, grille guard of 12 gauge tubing |
| Finish | Black powder coat (super polyester) |
| Receiver | 2in. |
| Light mounts | Included |
| Winch mount | Not included |
| D-ring mount | Not included |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2003–2006 Chevrolet Silverado 2500 HD and 3500, and the 2007 Silverado 2500 HD Classic and 3500 Classic.
It does not fit the 2001–2002 trucks, the Silverado 1500, or 2007 Silverado HD models other than the Classic. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
- One-piece bumper and grille guard assembly
- 2in. receiver
- Light mounts
Not included: Lights and winch.
