Overview

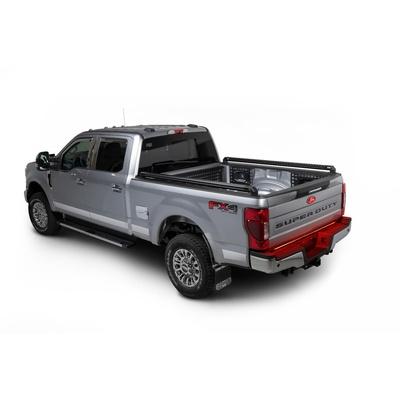

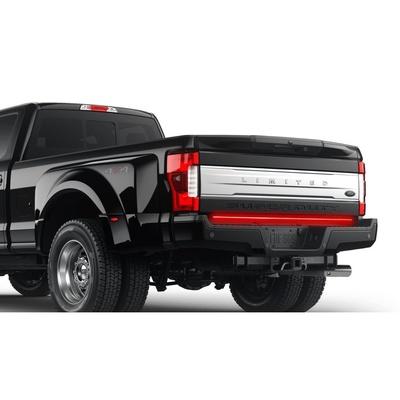

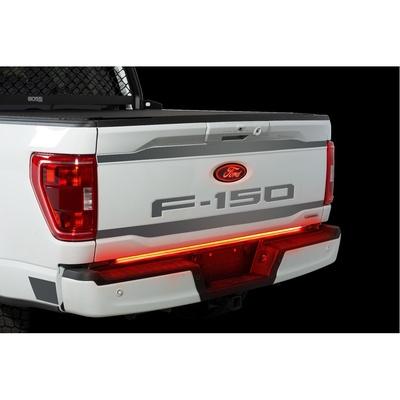

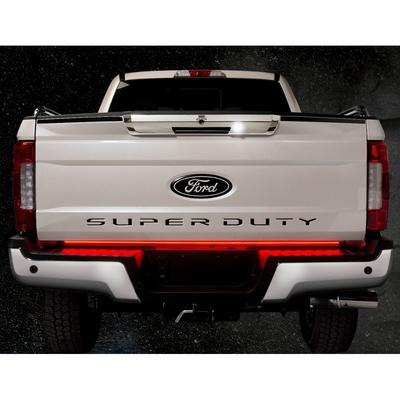

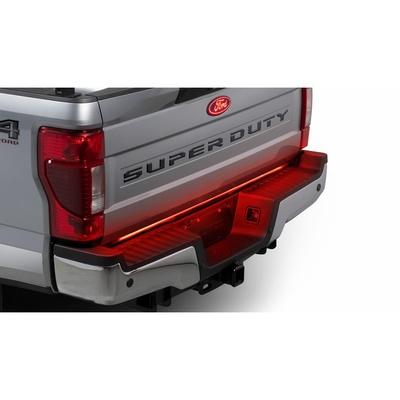

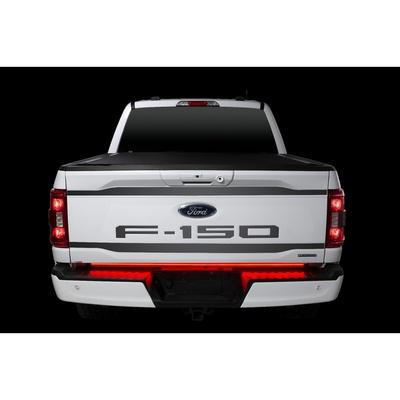

The Putco 60 inch Blade LED Tailgate Light Bar in red, part number PUT9202060-04, is a direct-fit LED tailgate light bar for full-size pickup trucks. Its blade design packs LEDs closely enough that the light reads as one seamless strip rather than separate points.
The bar runs on the factory 4 pin harness, so it carries the standard left and right turn signal, reverse, running, brake and hazard functions through the truck’s own wiring. Direct fit covers Chevrolet Silverado and GMC Sierra trucks, Ford F-150 and Super Duty models, Ram 1500 through 3500 pickups, Nissan Titan and Titan XD, and Toyota Tundra.
Key features

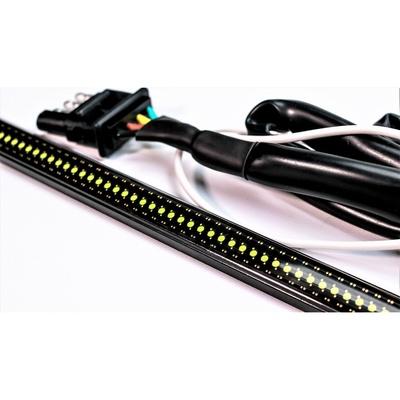

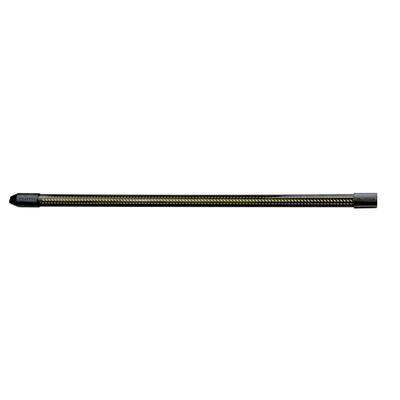

- Blade-style LED design with densely spaced LEDs for a seamless band of light
- Flexible design for a curved surface or a standard straight mount
- Mounting clips that Putco describes as patented

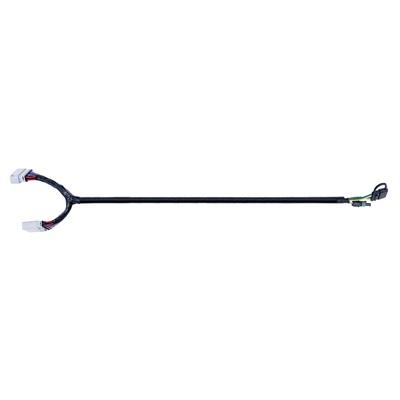

- Factory 4 pin harness operation for turn signal, reverse, running, brake and hazard functions
- Fully encapsulated tinted polycarbonate housing that keeps out moisture, dirt and dust

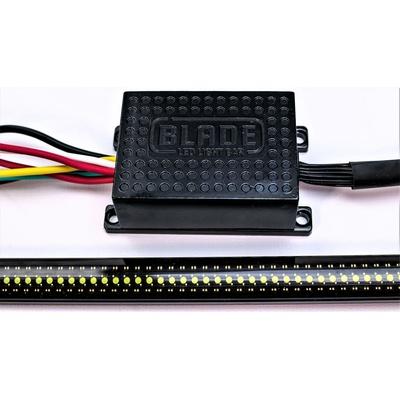

- Resin encapsulation protects and insulates circuitry and components
Choosing a mounting spot
A 60-inch bar is long enough to change how the tailgate area looks and works, so choose the mounting position with the full length in mind. Measure from the hinge and latch to confirm the bar will not interfere with the tailgate seal or the handle. Test-fit the bar with the tailgate open and closed, and check that the cable path avoids pinch points at the hinge.
A reliable signal depends on tidy wiring and secure connections. Ask whether the spot is easy to reach for future service, since the bar and its connection may need inspection over time. Keep a clear workspace for the first installation, and leave the fasteners slightly loose until the position is confirmed.
- Check tailgate seal clearance
- Route the harness away from the hinge
- Confirm access for later service
Specifications
| Brand | Putco |
|---|---|
| Part number | PUT9202060-04 |
| Length | 60 inches |
| Light color | Red |
| Light type | LED tailgate light bar, blade style |
| Housing | Tinted polycarbonate, fully encapsulated |
| Wiring | Factory 4 pin harness |
| Fitment | Direct fit |
Vehicle fitment
It is direct fit for Chevrolet Silverado 1500 from 2007 to 2018, Silverado 2500 HD and 3500 HD from 2007 to 2019, GMC Sierra 1500 from 2007 to 2018, Sierra 2500 HD and 3500 HD from 2007 to 2019, Ford F-150 from 2007 to 2014, Ford F-250 and F-350 Super Duty from 2008 to 2016, Ram 1500 from 2011 to 2018, Ram 2500 and 3500 from 2011 to 2019, Nissan Titan from 2006 to 2015 and 2017 to 2024, Nissan Titan XD from 2016 to 2024, and Toyota Tundra from 2007 to 2021. Confirm your vehicle’s year, model and trim before ordering.
Not covered by the list: Silverado and Sierra 1500 model years after 2018, Ram 1500 after 2018, and F-150 model years after 2014. Confirm your vehicle’s year, model and trim before ordering.

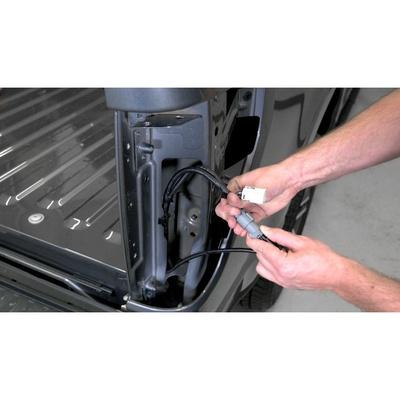

Installation notes
Plan the mounting position first, since the bar is 60 inches long. It can go on a curved or straight surface, and the 4 pin harness supplies the signal functions, so route the wiring away from the tailgate hinge and latch so it does not pinch when the tailgate closes.

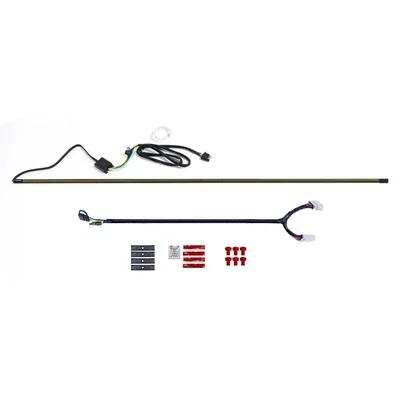

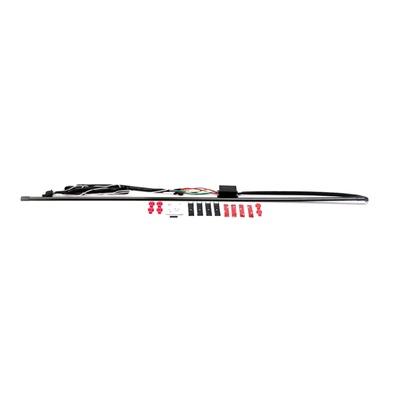

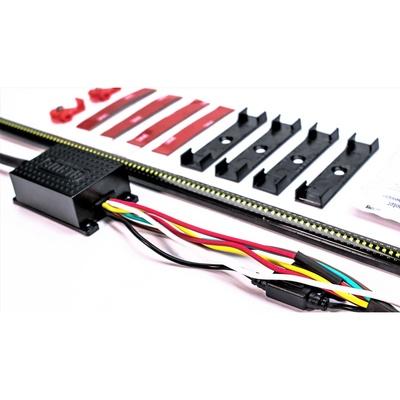

What’s included
The item is the 60-inch red light bar. Check the package contents against your installation before starting.
