Pro Comp 2.5 Inch Leveling Lift Kit – 63200

Pro Comp Suspension

$118.94In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 5:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 2.5-inch leveling lift kit, part number 63200
  • Fits 2WD and 4WD GMC Sierra HD, Yukon XL 2500 and Hummer H2 trucks
  • Front torsion keys; front lift only
  • Maximum tire size 33×11.50; bolt-on installation
  • Front shock matched to the 2.5-inch lift

Description

Overview

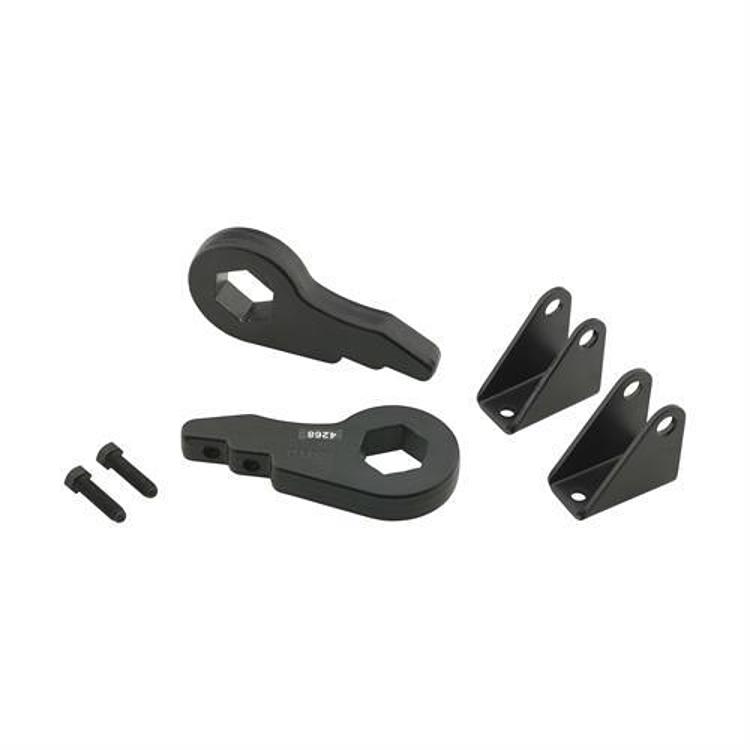

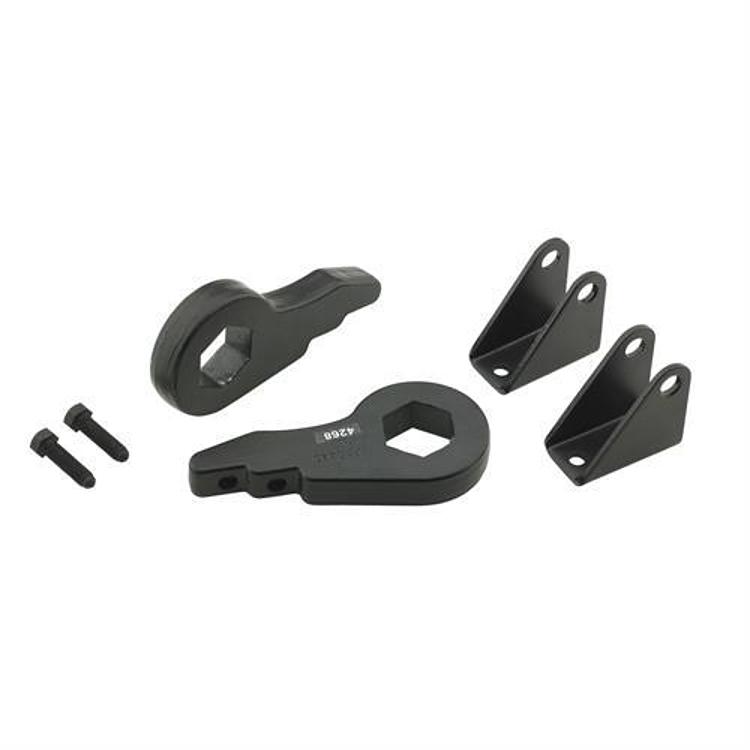

The Pro Comp 63200 is a 2.5-inch leveling lift kit that uses torsion keys to lift the front only. It fits 2WD and 4WD models, and the maximum tire size is 33×11.50. The kit is bolt-on and has a black finish, with steel spacer material.

The kit gives clearance for wheels and tires up to 33 inches in diameter. It leaves factory ride quality and comfort unchanged, and a lifetime warranty covers it for as long as the owner keeps the vehicle. Use a front shock matched to the 2.5-inch lift.

Key features

  • 2.5-inch front lift
  • Torsion keys at the front
  • Bolt-on installation
  • Maximum tire size 33×11.50
  • Fits 2WD and 4WD models
  • Recommended front shock listed

Choosing tires after a lift

A front leveling kit changes the height of the front end, so tire choice matters more than the lift number alone. Taller tires add rolling diameter, which can change speedometer readings and gearing feel. Before buying, measure the fender gap at full steering lock and check that the tire clears the inner liner and the brake lines.

Front shocks are often replaced along with a lift, since a longer ride height changes the shock’s working range. Check the shock length and mounting points against the new front height. Ball joints, tie rod ends and the steering stabilizer deserve a look too, because they carry more angle once the front is raised. Wheel alignment should follow once the kit is installed.

  • Measure fender clearance at full lock
  • Check front shock length
  • Inspect ball joints and tie rod ends

Specifications

Brand Pro Comp Suspension
Part number 63200
UPC 614901022131
Type Leveling lift kit, torsion key
Lift height 2.5 inches
Front lift method Torsion keys
Maximum tire size 33×11.50
Spacer material Steel
Finish Black
Drivetrain 2WD and 4WD

Vehicle fitment

The kit fits the 2001 to 2003 and 2005 to 2006 GMC Sierra 1500 HD in SLE and SLT trims, the 2007 GMC Sierra 1500 HD Classic, the 2001 to 2010 GMC Sierra 2500 HD, the 2007 GMC Sierra 2500 HD Classic, the 2000 to 2010 GMC Yukon XL 2500 and the 2003 to 2009 Hummer H2 in Base trim.

Chevrolet trucks and the GMC models outside these years are not on this list. Confirm your vehicle’s year, model and trim before ordering.

SKU: EXP63200 Category:

Specification

Shipping weight 12.00 lbs
Package dimensions 11.00 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
GMC Sierra 1500 HD2001–2003, 2005–2006SLE, SLT
GMC Sierra 1500 HD Classic2007SLE, SLT
GMC Sierra 2500 HD2001–2010Base, SL, SLE, SLT, WT
GMC Sierra 2500 HD Classic2007SL, SLE, SLT, WT
GMC Yukon XL 25002000–2010SLE, SLT
Hummer H22003–2009Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 63200 fit a 2005 GMC Sierra 1500 HD?

Yes. The kit fits the 2001 to 2003 and 2005 to 2006 GMC Sierra 1500 HD in SLE and SLT trims, so 2005 models are included. Confirm your trim before ordering the torsion keys.

Is the 63200 for 2WD trucks?

It fits both 2WD and 4WD models, so drivetrain is not a limit for this kit. Verify the year, model and trim against your truck before ordering.

What is the maximum tire size for the 63200?

The maximum tire size is 33x11.50, so check that size against your fender clearance and suspension travel before buying tires. Measure the fenders with your current tires mounted.

Does a leveling kit change the rear height?

No. This kit lifts the front only, so the rear keeps its factory height. Many owners add a rear adjustment later if they want the truck level.
