Overview

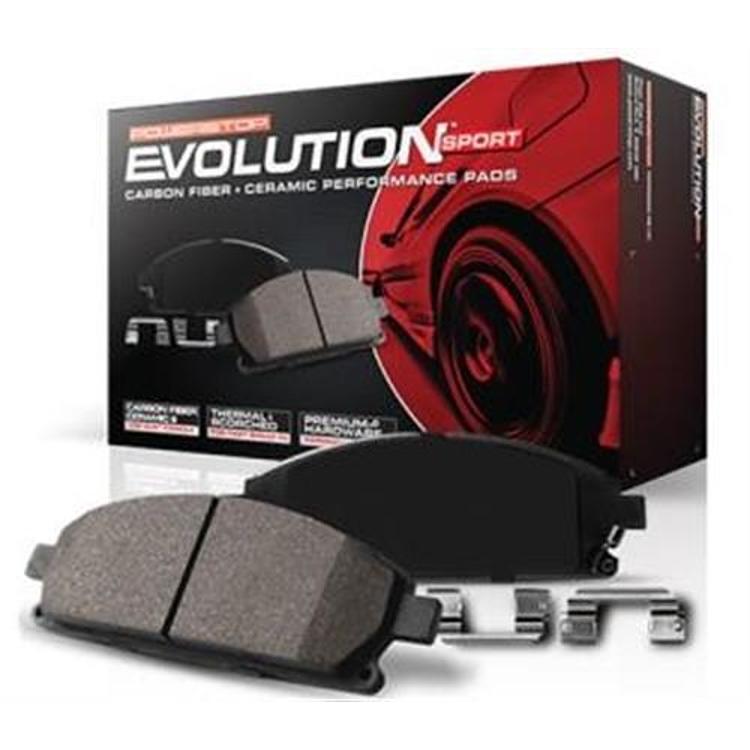

The Power Stop 16-1565 is a set of front Z16 Evolution Ceramic Clean Ride Scorched brake pads for 2012-2018 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD trucks, 2016-2017 Suburban and the 2016 Nissan Titan XD.
Carbon-ceramic friction material and thermally scorched surfaces make up this front pad, with shims intended for quiet braking.
Rubber-backed shims with two layers are designed to produce six times the noise reduction of plain steel shims.
Key features
- Front pads for 2012-2018 Silverado and Sierra HD, 2016-2017 Suburban and 2016 Titan XD
- Thermal scorched pad surface for fast break-in
- Dual rubber layer shims over constrained steel to eliminate noise
- Positive mold technology for uniform friction density across the pad
- Carbon-ceramic compound with a low dust formulation
- Manufactured under TS16949 standards to OEM specifications, including chamfers and slots
Towing and front brake load
Trucks that tow put heavy loads through the front brakes on every stop, so pads and rotors reach higher temperatures than on daily driving. A front pad designed for heavy-duty pickups needs stable friction across that heat range, and a carbon-ceramic blend is often selected for that purpose.
Before a long tow, check brake fluid condition, rotor thickness and pad wear. Use lower gears on descents so the brakes are not the only means of slowing. Avoid repeated hard stops from high speed with a hot brake system, because the friction surface may glaze.
After installation, bed the pads in with moderate stops, then let them cool. Recheck lug nut torque after the first drives. Keep an eye on the wheels for dust build-up or uneven patterns, which can point to a sticking caliper slide that needs cleaning.
Specifications
| Brand | Power Stop |
|---|---|
| Part number | 16-1565 |
| UPC | 792088976383 |
| Product line | Z16 Evolution Ceramic Clean Ride Scorched |
| Position | Front |
| Fit type | Direct fit |
| Friction material | Carbon-ceramic |
| Shims | Dual rubber layers over constrained steel |
Vehicle fitment
The 16-1565 fits the 2012-2018 Chevrolet Silverado 2500 HD, the 2012-2014 and 2016-2018 Silverado 3500 HD, the 2016-2017 Chevrolet Suburban and Suburban 3500 HD, the 2012-2018 GMC Sierra 2500 HD and Sierra 3500 HD, and the 2016 Nissan Titan XD in PRO-4X, Platinum Reserve, S, SL and SV trims.
Silverado 3500 HD coverage skips 2015, and only the 2016 model year of the Titan XD is listed. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Power Stop lists these pads as a direct fit. Replace the pads on both wheels of the front axle together, and let the thermal scorched surfaces bed in gently.
