Overview

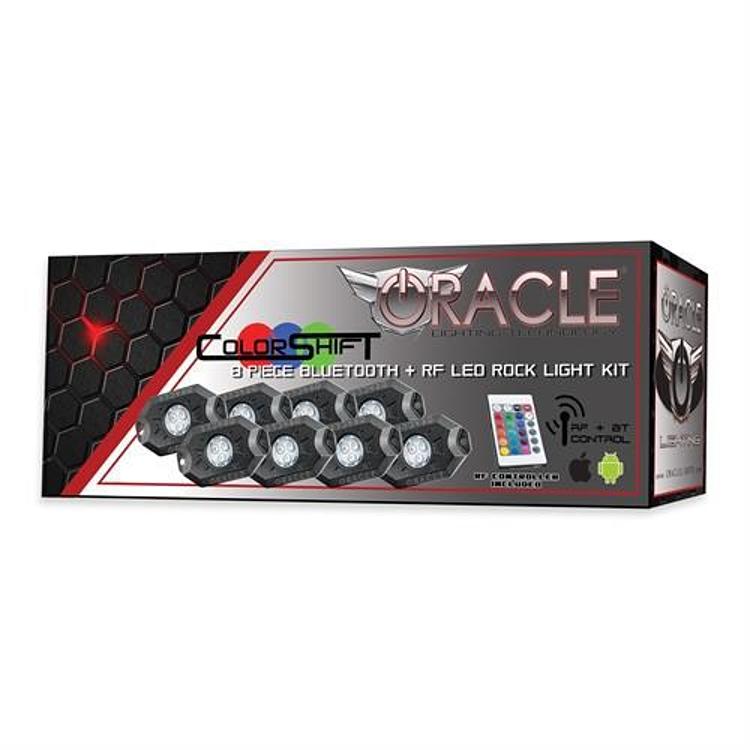

Oracle Lighting’s Underbody Colorshift LED Rock Light Kit in the 8-piece configuration, part number 5819-333, adds LED rock lights for 4×4 off-road vehicles, Jeeps and trucks. The kit is universal fit and is not tied to one model year or trim.
The lights are installed in the wheel wells in front of and behind each tire, which is where Oracle says they help the driver see rocks, mud, water and sand. ColorSHIFT technology offers thousands of colors, chosen from a Bluetooth app or the wireless RF remote that comes with the kit.
Key features
- Eight-piece ColorSHIFT underbody LED rock light kit
- Bluetooth app control and included wireless RF remote
- Brightness, strobing and DIY lighting scenes
- Music-driven lighting mode
- Heavy gauge wiring with waterproof construction
- Wheel well placement in front of and behind each tire
Choosing an eight-light layout
Eight rock lights give more coverage than a smaller kit, but each added light adds wiring, mounting points and current draw on the controller. Plan the layout around the wheel wells you plan to light, and confirm each position is free of obstacles before drilling or clamping any bracket. Start with the front and rear positions on each side, then add lights as the wiring allows.
Mud and water are the main threats to rock light wiring. Seal connectors with dielectric grease, use loom or split tubing over exposed wires, and add drip loops where wires drop from the frame. After every trail run, inspect the lights for cracked housings and loose brackets, and wipe the lenses clean.
- Map each light position before cutting any wire
- Use dielectric grease on weatherproof connections
- Check wheel well clearance after suspension changes
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | 5819-333 |
| UPC | 581933320170 |
| Kit size | 8-piece |
| Light type | Rock light, rectangular |
| Bulb type | LED |
| Lens color | Multi-color |
| Mounting | Bracket |
| Control | Bluetooth app or wireless RF remote (included) |
| Construction | Heavy gauge wiring, waterproof |
Vehicle fitment
No year, model or trim is stated. Oracle’s universal fit label covers any 4×4 off-road vehicle, Jeep or truck, so choose lights that suit your wheel wells and wire path.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lights go in the wheel wells, so route wiring from each position before mounting and keep it away from moving suspension parts. Set scenes with the remote or app once the wiring is complete. Before public road use, check your area’s rules on auxiliary lighting.

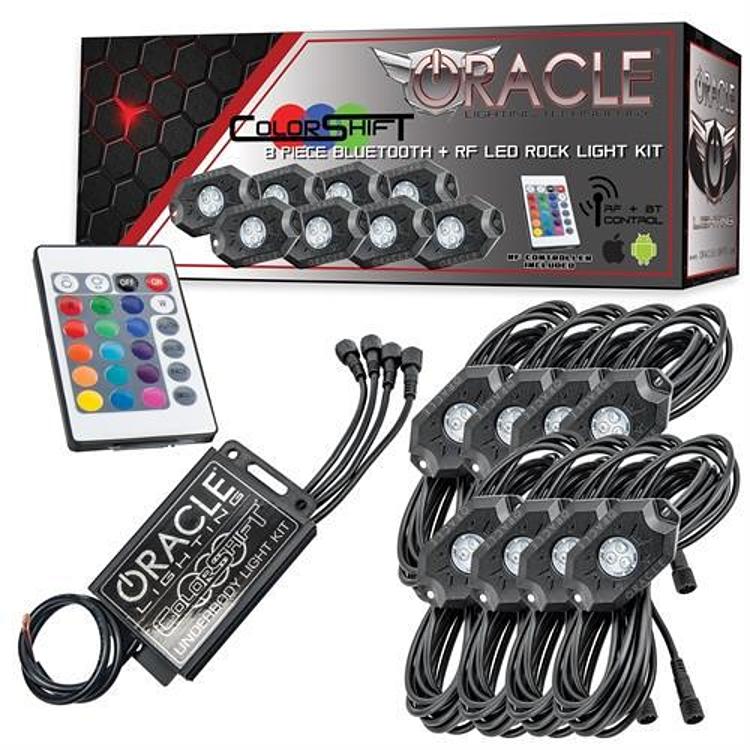

What’s included
The 8-piece kit with heavy gauge wiring, the wireless RF remote and the Bluetooth control option described by Oracle.
