Overview
The Oracle Lighting ORC1281-339 is an RGBW headlight DRL upgrade kit for Ram trucks with the factory LED daytime running light option. It replaces the DRL boards so the existing DRL feature can change color, while a true white DRL remains available. It fits 2019–2021 Ram 1500 trucks, 2019 Ram 1500 Classic trucks, and 2019–2020 Ram 2500 and Ram 3500 trucks.

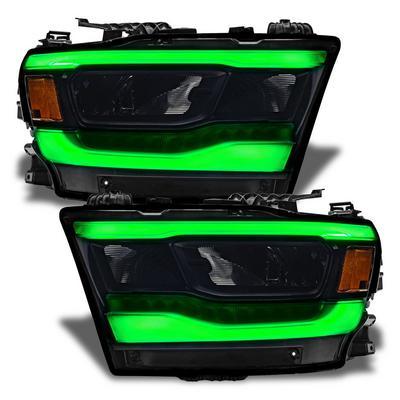

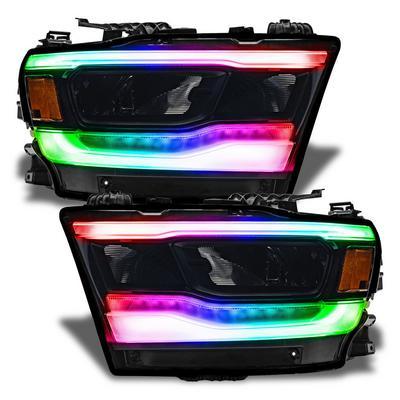

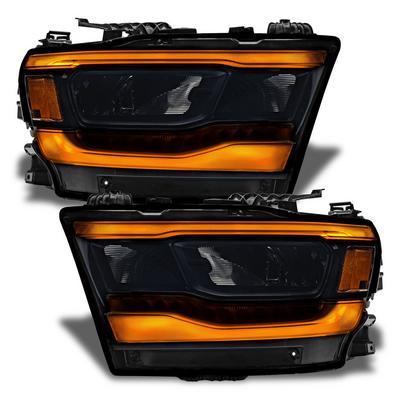

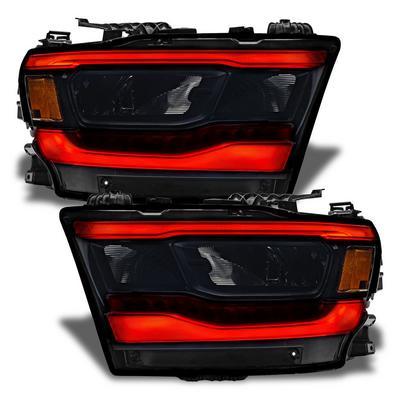

The boards use ColorSHIFT RGB+W chips, with a white LED that gives truer white tones and a crisp white DRL color. The kit switches instantly to white for road driving. Hundreds of colors and dozens of patterns are available, with adjustable brightness and function speed.
Key features
- RGB+W chips with a dedicated white LED for truer white tones

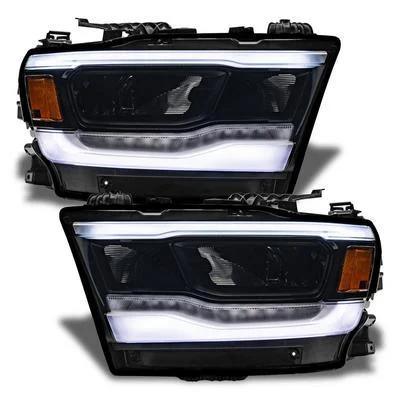

- Crisp white DRL color option alongside color-changing DRLs
- Switches instantly to white for road driving
- Hundreds of colors and dozens of patterns on the DRL boards
- Adjustable brightness and function speed
- Uses the existing DRL feature on factory LED DRL Ram headlights
- Heavy-duty IP67 wiring adapters for connection
Color modes and controllers
The RGB+W boards split their work between colored chips and a separate white LED, so the DRL can run a steady white or a rotating color pattern. Choosing when to use each is mostly a matter of local rules and personal preference, since the same headlights handle both jobs.

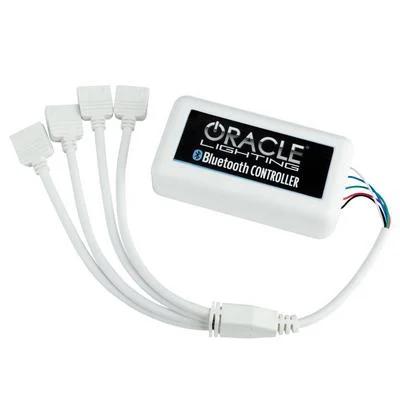

Because a controller is sold separately, decide early how you want to control the lights and where it will mount inside the cab or under the hood. Keep the wiring away from heat sources and secure the harness so it cannot rub against the hood or the headlight housing. Work with the battery disconnected whenever you touch the headlight wiring.
- Plan the controller location before running wire
- Confirm the white DRL setting is allowed where you drive
- Secure the harness away from heat and the hood
- Disconnect the battery before touching headlight wiring
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | ORC1281-339 |
| Color | ColorSHIFT RGB+W |
| DRL boards | 8 ColorSHIFT RGB+W DRL PCBs |
| LED driver hubs | 2 constant current |
| Wiring adapters | 2 heavy-duty IP67 |
| Controller included | No |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2019–2021 Ram 1500 (Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Special Service, Tradesman), 2019 Ram 1500 Classic (Big Horn, Express, Lone Star, Special Service, Tradesman, Warlock), 2019–2020 Ram 2500 (Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Power Wagon, Tradesman), and 2019–2020 Ram 3500 (Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, SLT, Tradesman).
Ram trucks outside these years and trims are not covered. The kit is for trucks with the factory LED DRL option, so check your headlights first. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The boards replace the existing DRL boards in the headlights, and the wiring adapters handle the connections. Because the controller is not included, color changes depend on a controller you add separately. Work on headlight wiring with the battery disconnected.
What’s included

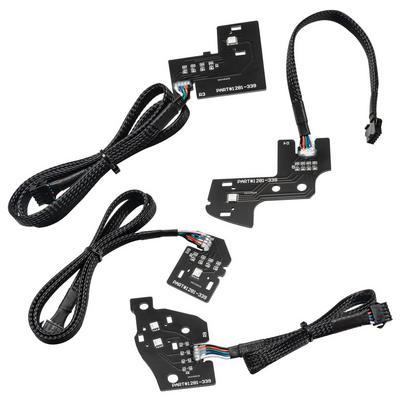

- 8 ColorSHIFT RGB+W DRL PCBs

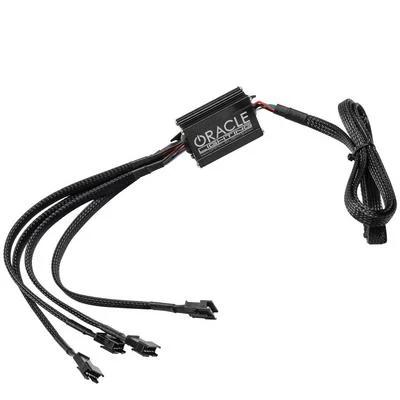

- 2 constant current LED driver hubs
- 2 heavy-duty IP67 wiring adapters
Not included: controller.
