Omix-ADA Model 20 Axle Bearing Retainer Shim – 16533.06

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bearing retainer shim for AMC Model 20 axles
  • Listed shim size .0010 mm
  • Omix-ADA part number 16533.06
  • Fitment covers Jeep CJ5, CJ7 and Scrambler models

Description

Overview

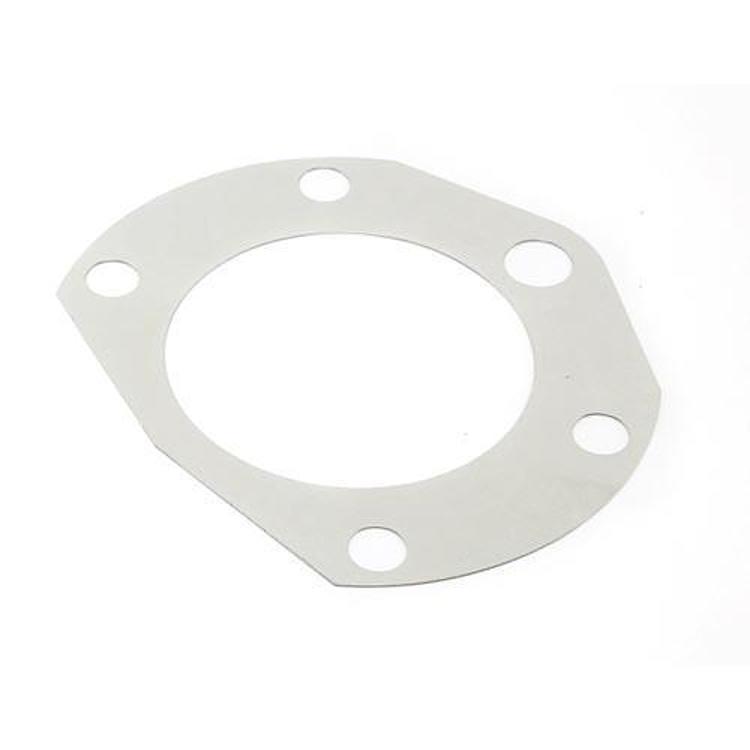

The Omix-ADA 16533.06 is an axle bearing retainer shim for the AMC Model 20 axle, sized at .0010 mm. It is a direct OE replacement built to original specifications and carries a limited five year warranty from Omix-ADA.

It fits Jeep CJ5 (1976–1983), CJ7 (1976–1986) and Scrambler (1981–1985) models.

Key features

  • Direct OE replacement built to original specifications
  • Made for AMC Model 20 axles
  • Shim size .0010 mm
  • Limited five year manufacturer warranty

Before you install a shim

Axle bearing retainer shims set the position of the bearing and the retainer against the housing. Even a small change in shim thickness can alter bearing fit, so the new shim should match the one it replaces. Mark the old shim and keep it nearby during the job, so the replacement can be compared side by side before the retainer is tightened.

Before disassembly, clean the housing face and the retainer surface. Burrs, rust or old gasket material can hold a shim out of position and make the retainer sit unevenly. Inspect the bearing, race and retainer for wear, pitting or discoloration, since a shim alone will not correct a damaged bearing. Wear on one side often points to alignment or preload issues worth checking before the axle goes back together.

  • Clean mating surfaces before fitting
  • Compare thickness with the old shim
  • Replace worn bearings when they are exposed

Specifications

Brand Omix-Ada
Part number 16533.06
UPC 70000019231
Axle type AMC Model 20
Shim size .0010 mm
Warranty Limited five year manufacturer warranty

Vehicle fitment

The manufacturer fitment list covers the Jeep CJ5 (1976–1983), the Jeep CJ7 (1976–1986) and the Jeep Scrambler (1981–1985).

Models outside the CJ and Scrambler range, such as the Wrangler, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the .0010 mm shim size matches the shim being replaced before installation.

What’s included

Compare the package contents with your installation plan before starting.

SKU: OAI16533.06 Category:

Specification

Shipping weight 0.03 lbs
Package dimensions 4.50 × 4.30 × 1.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 16533.06 shim fit a 1985 Jeep Scrambler?

Yes. The manufacturer fitment list includes the 1981–1985 Jeep Scrambler in the Base, Laredo, Renegade, SL and SR trims. Confirm your vehicle's year, model and trim before ordering.

What shim size is this part?

The shim is sized at .0010 mm. Before installation, confirm that size matches the shim you are replacing, because shim thickness affects bearing fit and retainer alignment.

Does Omix-ADA cover this part with a warranty?

Omix-ADA backs this part with a limited five year warranty. It is a direct OE replacement built to original specifications, so it is designed to match the shim it replaces. Keep your order paperwork in case you need to make a claim.

Why does shim thickness matter on an axle bearing retainer?

Shim thickness sets the bearing clearance and preload once the retainer is tightened. A shim that is too thick or too thin can cause noise, play or early bearing wear. Measure and compare with the original shim before installing the new one.
