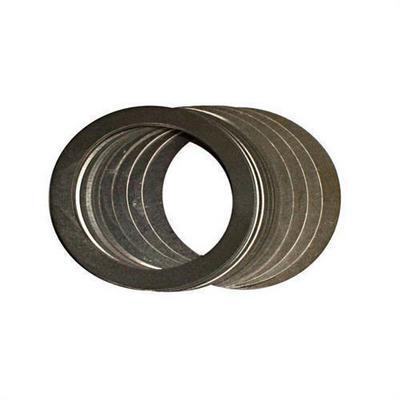

Omix-ADA Dana 35 Differential Side Gear Bearing Shim Kit – 16511.10

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Side gear bearing shim kit for Dana 35 axles
  • Rear position
  • Direct OE replacement

Description

Overview

The Omix-Ada 16511.10 is a side gear bearing shim kit for Dana 35 rear axles. It fits the 1984-1998 Jeep Cherokee (XJ), 1999-2004 Grand Cherokee (WJ), 1993-1998 Grand Cherokee (ZJ), 1997-2000 Wrangler (TJ) and 1988-1995 Wrangler (YJ).

It is a direct OE replacement built to original specifications. Shims are thin spacers that set bearing position and preload inside a differential.

Key features

  • Side gear bearing shim kit
  • For Dana 35 rear axles
  • Direct OE replacement built to original specifications
  • Rear position

Shim setup and preload

Side gear shims set bearing position and preload inside the differential, so small thickness changes affect how the gears mesh. Shims are normally measured and matched during a rebuild rather than swapped by feel. Keep each shim with its original location, and measure the existing set before final assembly so the new kit can be sized correctly.

Dana 35 rebuilds also involve the pinion, carrier bearings and ring gear contact, so a shim change should be checked as part of the whole setup. Clean the carrier, inspect the bearings for pitting, and recheck backlash and contact pattern after assembly. A shim that is bent or scored should not be reused.

  • Measure existing shims before final assembly
  • Keep matched shims together
  • Inspect bearings for pitting
  • Recheck backlash and contact pattern

Specifications

Brand Omix-Ada
Part number OAI16511.10
Position Rear
Axle Dana 35
Kit type Side gear bearing shim kit

Vehicle fitment

It fits the 1984-1998 Jeep Cherokee (XJ), 1999-2004 Grand Cherokee (WJ), 1993-1998 Grand Cherokee (ZJ), 1997-2000 Wrangler (TJ) and 1988-1995 Wrangler (YJ), in the trims for each.

Other years and models, including the Wrangler JK, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Shim kits are used during a differential rebuild, where bearing preload has to be set, so this is not a stand-alone swap.

What’s included

A side gear bearing shim kit. Check the package contents against your installation before starting.

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–1998Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport
Jeep Grand Cherokee (WJ)1999–2004Laredo, Limited, Overland, Special Edition, Sport
Jeep Grand Cherokee (ZJ)1993–19985.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi
Jeep Wrangler (TJ)1997–2000SE, Sahara, Sport
Jeep Wrangler (YJ)1988–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the Omix-Ada 16511.10 kit for a Dana 35 axle?

Yes. It is a side gear bearing shim kit for a Dana 35 axle in the rear position, and it is a direct OE replacement.

Does this shim kit fit a Jeep Grand Cherokee ZJ?

Yes. It fits the 1993 to 1998 Jeep Grand Cherokee (ZJ), including the Base, Laredo, Limited, Orvis, SE and TSi trims. Verify your year, model and trim are covered before ordering.

Is this a complete differential rebuild kit?

No. It is a side gear bearing shim kit, not a full rebuild. Shims set bearing position and preload, and they are used alongside the other differential parts.

Should the old shims be reused in a rebuild?

Reuse them only when they are undamaged and their thickness is confirmed. Bent or scored shims can change preload and cause noise. Keep matching shims together and measure before final assembly.
