Overview

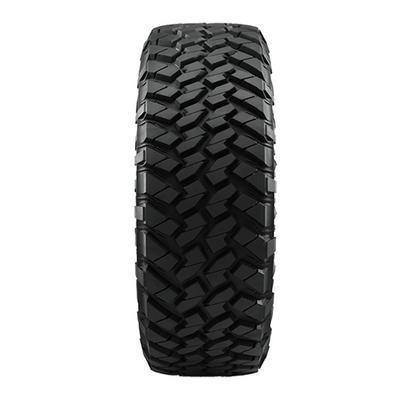

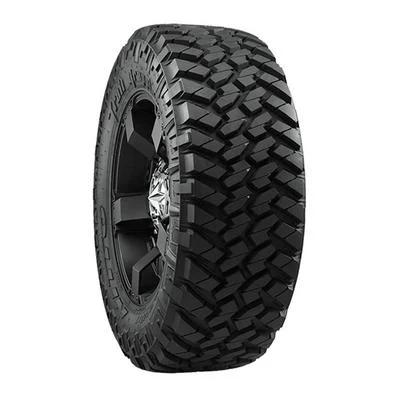

The Nitto LT305/55R20 Trail Grappler, part number NIT205-760, is a mud terrain tire for 20-inch rims. It blends some of the off-road performance of the Mud Grappler with the on-road comfort of the Terra Grappler, aiming for a tire that is both aggressive and quiet.
The tire has a 305 section width, a 55 aspect ratio and a tire height of 33. The design work focused on puncture resistance, lateral stability, uniform wear and lower road noise at the same time, making it suited to drivers who want trail grip on a daily vehicle.
Key features
- A 3-ply high turn-up sidewall that Nitto builds for off-road strength.
- A thick rubber compound that cushions the tire and helps prevent punctures.
- Tread blocks arranged to provide extra biting edges for lateral stability and forward traction.
- Advanced sound analysis used to reduce the noise levels commonly associated with off-road tires.
- Two wide steel belts that give the tire a stable base and increase tread strength.
- Internal construction and tread design that Nitto says help optimize tread life and reduce irregular wear.
Choosing a mud terrain setup
Mud terrain tires use deep, open tread channels that clear mud and loose material from the contact patch. That openness is good for soft ground and rocky trails, but it usually means more road noise and a firmer, busier ride on pavement. Think about how much of the vehicle’s life is spent off road before choosing this tread.
A mud tire at this height changes gearing, speedometer reading and clearance, so plan for those effects. Check fender liners, control arms and steering components at full lock, especially after changing lift height or wheel offset. Balance the tires after mounting and recheck pressure cold before each trip.
- Check clearance under load and at full lock
- Keep the four tires matched in size and tread
- Inspect for chunking or cuts after trail use
- Rotate on a regular schedule
Specifications
| Brand | Nitto |
|---|---|
| Part number | NIT205-760 |
| Tire size | LT305/55R20 |
| Style | Trail Grappler |
| Tread type | Mud terrain |
| Section width | 305 |
| Tire width | 12 |
| Aspect ratio | 55 |
| Tire height | 33 |
| Rim diameter | 20 Inches |
| Most popular size | 305x55R20 |
| Sidewall construction | 3-ply high turn-up |
| Belts | Two wide steel belts |
Vehicle fitment
The tire carries the Universal Fit label and is not tied to a particular truck. Match the 20-inch rim diameter, 305 section width and tire height of 33 to your wheels and clearance.
Confirm your vehicle’s year, model and trim before ordering, and check approved tire sizes for your vehicle with a qualified tire shop.
Installation notes
Have a qualified tire shop mount and balance the tire on a 20-inch rim. Because this is a mud terrain tread with a height of 33, check fender and suspension clearance before driving, especially after any change to lift height or wheel offset.
What’s included
This is a tire only. No wheels or accessories are included.
Not included: wheels.
