Overview

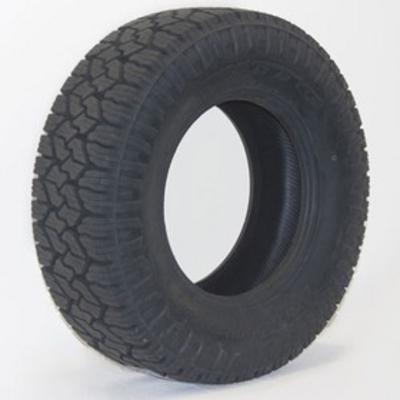

The Nitto Exo Grappler AWT in size 285/70R17, part number NIT206-860, is an all-weather all-terrain tire for 17-inch rims. Nitto built it for off-road drivers who take their trucks onto trails, gravel and farm roads through all four seasons. Nitto lists 285x70R17 among its most popular sizes.
The Exo Grappler AWT’s main purpose is weather protection. Its chip resistant all-weather compound, 3-ply sidewall and thick sidewall lugs are meant to guard the tire against gravel, rock and punctures. The tire carries the 3-peak mountain snowflake rating for winter driving conditions.

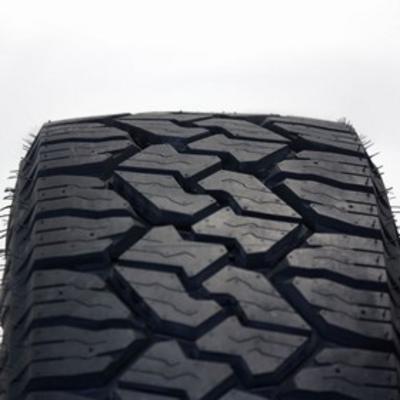

Nitto also tuned the tread for stability and drainage. Gear shaped block edges reinforce the center blocks, while the sipes and large lateral grooves help move water and slush out of the contact patch. The features below show how each part of the tire contributes.
Key features
- Chip resistant all-weather compound built from natural rubber, high strength polymers and wear resistant materials.
- 3-ply sidewall with large, thick sidewall lugs for added strength and puncture resistance.
- Gear shaped block edges that reinforce the center tread blocks and help steady the contact patch.
- Spiral shaped stone ejectors meant to reduce stone retention and stone drilling.
- Staggered shoulder blocks that provide biting edges for traction in loose dirt.
- Two sidewall designs: three-dimensional buttresses on one side and Y-shaped buttresses on the other.
- Sipes and large lateral grooves for water and snow or slush evacuation, rated with the 3-peak mountain snowflake.
Winter driving with all-weather tires
All-weather tires are a compromise between summer grip and winter traction. Compounds that stay flexible in cold weather help on snow and slush, but they cannot match a dedicated winter tire on deep ice. Drivers who face long freezing stretches often keep a separate winter set, while those in milder climates rely on a single set year round.
If studs are considered, check first whether the tire can take them and whether a tire shop can install them evenly across both axles. Studs reduce grip on bare pavement and wear faster on dry roads, so many drivers remove them when the season ends. Inspect the sidewall after rough trail work, since cuts there cannot be repaired reliably.
- Check tread depth before winter and after heavy off-road use
- Keep tires at placard pressure, because cold weather lowers inflation
- Use the same tire type on all four wheels for stable handling
Specifications
| Brand | Nitto |
|---|---|
| Part number | NIT206-860 |
| Style | Exo Grappler AWT |
| Tire size | 285/70R17 |
| Aspect ratio | 70 |
| Section width | 285 |
| Tire width | 11 |
| Tire height | 33 |
| Rim diameter | 17 inches |
| Tread type | All Terrain |
| Winter rating | 3-peak mountain snowflake |
| Optional studs | TSMI #15, can be added |
| Fitment | Universal, not vehicle-specific |
Vehicle fitment
Nitto marks this tire as universal fit and names no specific vehicles, so the size and rim diameter decide whether it suits your truck. Check that 285/70R17 appears among the tire sizes approved for your vehicle and that your wheels are 17-inch.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Have a tire shop mount and balance the tire on 17-inch wheels. If you plan to add TSMI #15 studs, have a tire service that handles studded tires install them, and check your local rules on studded tire use.
What’s included
The product covers the tire only, part number NIT206-860.
Not included: wheels, valve stems, mounting service and TSMI #15 studs.
