Overview

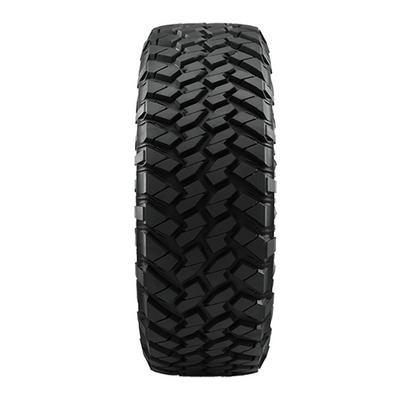

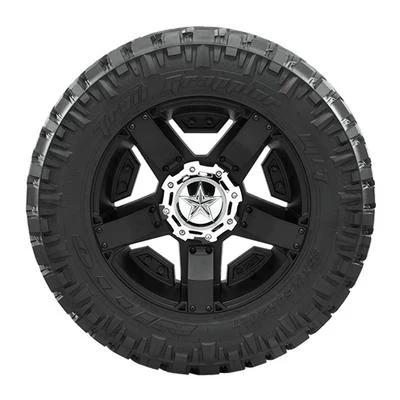

The Nitto Trail Grappler M/T in size 37×12.50R20LT, part number NIT205-800, is a mud terrain tire built to hold traction in soft ground while keeping road noise lower than typical mud terrain tires. It blends the off-road ability of the Mud Grappler with the on-road comfort of the Terra Grappler.
Mud terrain tread is designed for mud, loose rock and soft ground, and it usually produces more road noise than all-terrain tread. Sound analysis equipment was applied to cut the noise that off-road tires often make. The LT suffix identifies a light truck tire. The rim diameter is 20 inches and the tire height is 37, so match both to your wheels before mounting.
Key features
- Hybrid tread concept that brings Mud Grappler traction and Terra Grappler comfort together.
- Three-ply high turn-up sidewall construction for off-road use.
- Thick rubber compound designed to cushion the tire and help prevent punctures.
- Tread blocks configured for extra biting edges, supporting lateral stability and forward traction.
- Sound analysis applied to reduce noise levels common to off-road tires.
- A pair of wide steel belts under the tread for a stable base and tread strength.
- Internal construction and tread design aimed at optimizing tread life and reducing irregular wear.
Clearance on taller tires
A tire with a tall overall height changes the way the truck drives. Speedometer readings shift, acceleration feels softer, and shift points may change with the new effective gearing. Many owners check speedometer accuracy after a size change and consider regearing when the change is large.
Fender and inner liner clearance should be checked at full steering lock and at full suspension compression. Brake calipers, control arms, track bars and driveline components are common contact points on lifted trucks. Cycle the suspension slowly in a driveway and listen for rubbing before taking the truck on trails.
Rotate the tires on a regular schedule, and watch the outer edge of the tread for uneven wear that can point to alignment changes. Re-check the wheel bolts after the first few drives on new tires.
Specifications
| Brand | Nitto |
|---|---|
| Part number | NIT205-800 |
| Style | Trail Grappler |
| Tire size | 37×12.50R20LT |
| Most popular size | 37×12.50R20 |
| Tread type | Mud Terrain |
| Tire width | 12.5 |
| Tire height | 37 |
| Rim diameter | 20 inches |
| Sidewall | 3-ply, high turn-up |
| Belts | Two wide steel belts |
Vehicle fitment
Fit is not tied to one vehicle. Use the 20-inch rim diameter and 37×12.50R20LT size as your first fit check, and compare your truck’s clearance before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Have a tire shop check wheel width and bead seating on the 20-inch rim before mounting, since the size carries the LT designation.
What’s included
Only the tire is described. No wheels, valves or hardware are named.
Not included: wheels for the 20-inch rim diameter.
