Overview

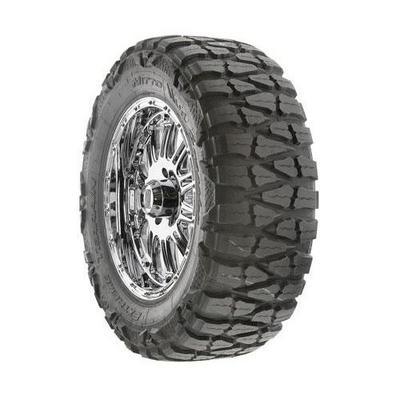

The Nitto Mud Grappler 35×12.50R17LT is a mud terrain tire for 17-inch rims, part number NIT200-670. Nitto presents the Mud Grappler as an Extreme Terrain tire for drivers who need exceptional traction off the pavement.

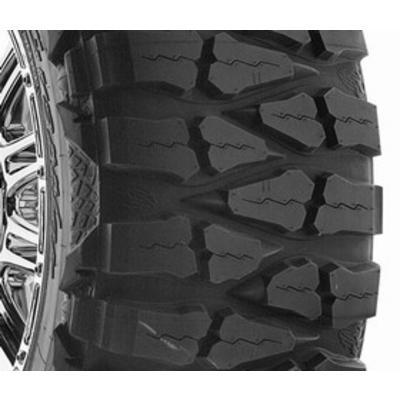

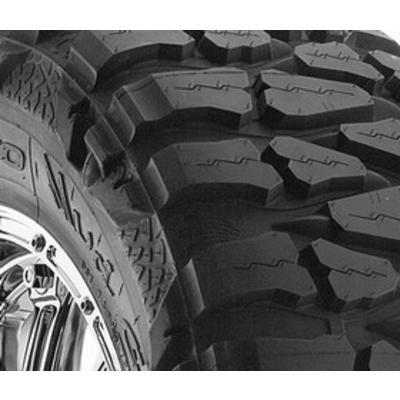

The Mud Grappler has large side-lugs that help resist sidewall punctures and support rock crawling and mud traction. Its computer-designed tread has a high void ratio to clear mud and dirt, plus anti-side slip grooves and sipes for snow and slush. The 35×12.50R17 size is among the most popular for this model. It is a universal-fit tire, so match the size and rim diameter to your wheels.

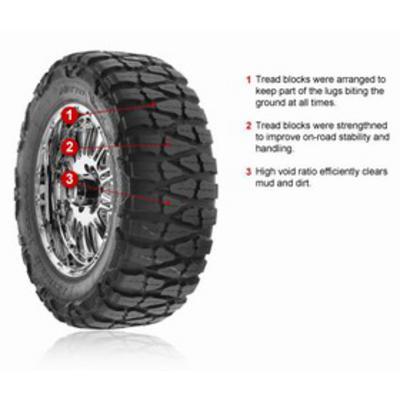

Key features
- Monstrous 15mm side-lugs, as Nitto describes them, for puncture resistance.
- High void ratio tread that clears mud and dirt.
- Anti-side slip grooves for better lateral traction.
- Sipes for performance on snow and slush.
- Three-ply, high turn-up polyester sidewalls for durability.
Tire height and wheel fit
A 35-inch tire on a 17-inch rim has a tall profile that changes how the vehicle sits and how it steers. Taller tires also change the effective gear ratio, so acceleration and fuel use can feel different. Clearance at the fenders, steering stops and suspension arms should be checked before the first drive.
Mud tires are heavier than road tires, and that weight affects braking and cornering. Sidewall protection is useful on rough ground, but a heavier tire adds stress to wheel bearings and hubs over time. Balance the tires after mounting and recheck after the first off-road trip.
- Check steering lock with the tires mounted
- Verify spare tire fit with the new size
- Confirm speedometer reading after the change
Specifications
| Brand | Nitto |
|---|---|
| Part number | NIT200-670 |
| Tire size | 35×12.50R17LT |
| Style | Mud Grappler |
| Tread type | Mud Terrain |
| Tire width | 12.5 |
| Tire height | 35 |
| Rim diameter | 17 inches |
| Side-lugs | 15mm |
Vehicle fitment
No specific vehicle is named for this tire, which is marked Universal Fit. Fitment comes down to the 35×12.50R17LT size and 17-inch rim diameter. Compare the tire height of 35 and width of 12.5 with your current tires, and check clearance in the wheel wells and suspension before mounting.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
This is a single tire. Wheels and valve stems are not included.
