Overview

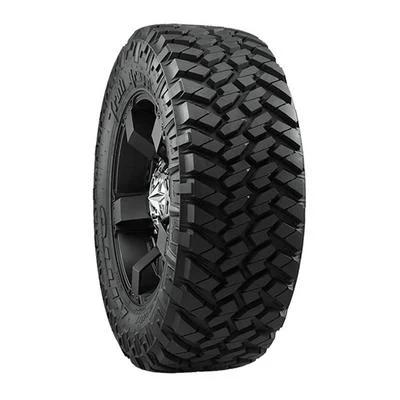

The Nitto Trail Grappler LT285/70R17, part number NIT205-450, is a mud terrain tire built for 17-inch rims. Nitto presents the Trail Grappler M/T as a middle path between the off-road grip of the Mud Grappler and the on-road comfort of the Terra Grappler, so this size suits drivers who split time between dirt trails and pavement.

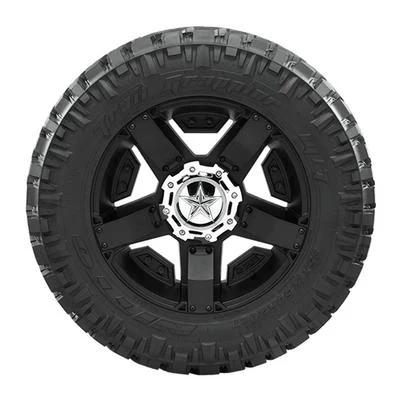

The sidewall pairs a 3-ply high turn-up build with a thick rubber compound, and the tread blocks carry extra biting edges for lateral stability and forward traction. Sound analysis was used to reduce the noise common to off-road tires on pavement. LT means light truck, 285 is the section width, 70 is the aspect ratio, and R17 is the rim diameter.
A mud terrain design uses deep, open tread channels so mud and loose dirt can clear from the contact patch. That openness usually costs some road quietness, which is the trade-off this tire tries to limit.
Key features
- 3-ply high turn-up sidewall for off-road strength
- Thick rubber compound that cushions the tire and helps prevent punctures

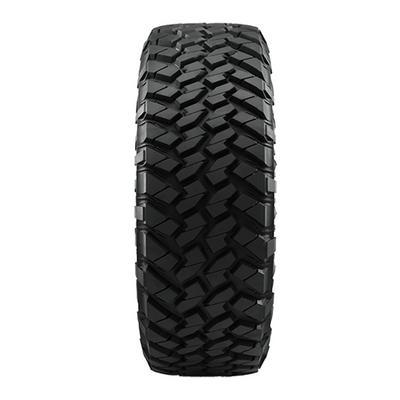

- Tread blocks with extra biting edges for lateral stability
- Biting edges that enhance forward traction
- Sound analysis used to reduce the noise common to off-road tires
- Two wide steel belts for a stable base and added tread strength
- Internal construction and tread design aimed at longer tread life
- Construction intended to give uniform wear and reduce irregular wear
Mud terrain tire design
Deep, open tread channels let a mud terrain tire clear mud and loose dirt from the contact patch, which keeps grip where it matters. The trade-off is more road noise and a firmer, less quiet ride on pavement. Sound-reducing tread design narrows that gap but does not remove it, so set expectations for highway driving before fitting.
Many owners pair mud tires with a rotation and balance routine, since uneven wear shows up sooner on a set that sees both trail and road. Check pressure when the tires are cold and inspect the sidewall for cuts. Stones lodged in the tread should be removed after trail use to protect the casing, and rechecking wheel torque after rough runs is a sensible habit.
Specifications
| Brand | Nitto |
|---|---|
| Part number | NIT205-450 |
| Product line | Trail Grappler |
| Tire size | LT285/70R17 |
| Popular size | 285x70R17 |
| Section width | 285 |
| Aspect ratio | 70 |
| Tire width | 11 |
| Tire height | 34 |
| Rim diameter | 17 Inches |
| Tread type | Mud Terrain |
| Sidewall | 3-ply high turn-up |
| Belts | Two wide steel belts |
| Fitment | Universal Fit (choose by tire size) |
Vehicle fitment
Nitto labels this tire Universal Fit, so no single vehicle model applies. Fit comes down to size: the 17-inch rim diameter and the tire height of 34 are the measurements to check against your wheels and the clearance in your wheel wells.
Measure wheel diameter and clearance before ordering, since a size-based tire needs checks a model-specific part would not.
What’s included
The tire only. Wheels and rims are not included.
