Overview

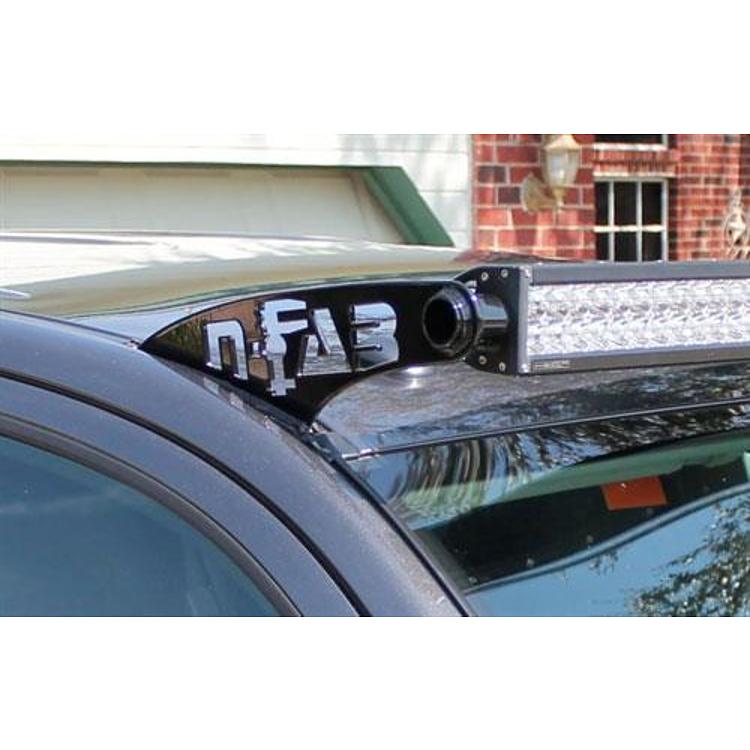

The N-Fab T1049LR-TX is a textured black roof rain channel mount bracket for light bars. It fits the 2010–2018 Toyota 4Runner in Limited, SR5, TRD Off-Road, TRD Pro and Trail trims as a direct fit.
As the product name states, this bracket uses a roof rain channel mount. It is built from .084 wall steel with a welded one-piece design, then zinc coated and finished in a high gloss powder coat.
Key features
- Roof rain channel mount design
- Textured black finish
- Welded one-piece steel construction
- Zinc coated for corrosion protection
- Direct fit designation for listed 4Runner trims
Rain channel mounts and trail use
A rain channel mount clamps to the groove along the roof edge, so its grip depends on the channel being clean and undamaged. Before each trip, check that the clamps are tight and that the channel shows no dents or cracks. Off-road bumps and branches push hard on this area, so loosened clamps should be tightened as soon as they are found.
Check door and tailgate clearance with the bracket and light bar in place, since the mount sits near the doors. Use a fused relay and keep the harness away from the channel edge where it can rub. Textured black finish hides small scratches, but bare steel exposed by a scrape should be touched up to keep rust from starting.
Specifications
| Brand | Nfab |
|---|---|
| Part number | T1049LR-TX |
| UPC | 843206119530 |
| Mount type | Roof rain channel mount |
| Finish | Textured black |
| Fitment type | Direct fit |
| Material | Steel, .084 wall |
| Construction | Welded, one-piece |
| Corrosion protection | Zinc coat |
Vehicle fitment
It fits the 2010–2018 Toyota 4Runner in Limited, SR5, TRD Off-Road, TRD Pro and Trail trims.
Models from 2019 onward and other Toyota vehicles fall outside this fit. Verify your vehicle’s year, model and trim before you buy.
Installation notes
Fit the bracket to the roof rain channel on your own vehicle and check that the channel matches the model year you are buying for before you order.
What’s included
The bracket. Match the clamps to your channel before starting the install.
Not included: A light bar to mount on the bracket.
