N-FAB Light Bar Bracket (Textured Black) – F0954RLR-TX

Nfab

Shop Ford F-150 Light Bar Mounting Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Side mount light bar bracket, Nfab F0954RLR-TX, textured black
  • Fits 2004 to 2014 Ford F-150 trucks, including the SVT Raptor.
  • .084 wall steel with all welded, one piece construction
  • Zinc coated, finished in textured black powder coat
  • UPC 843206109043

Description

Overview

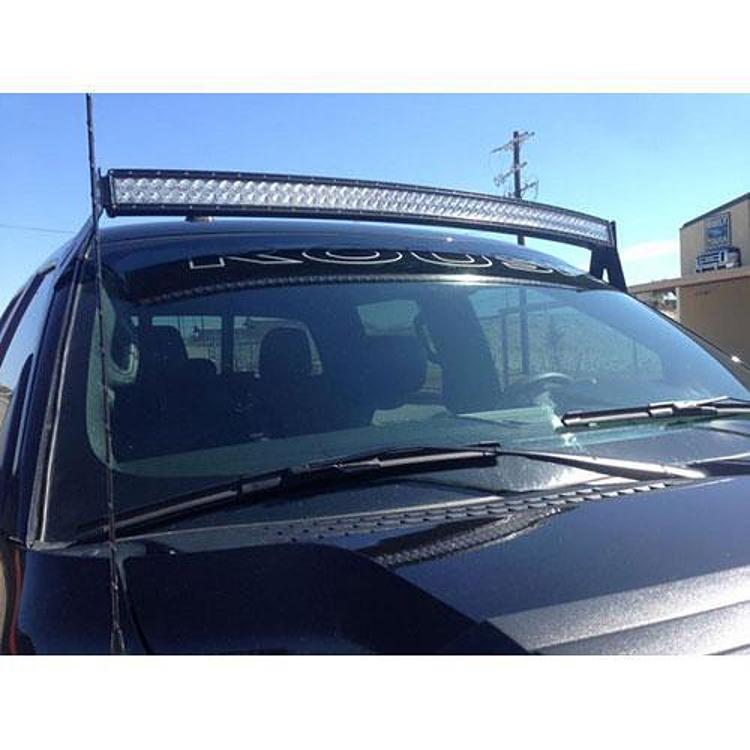

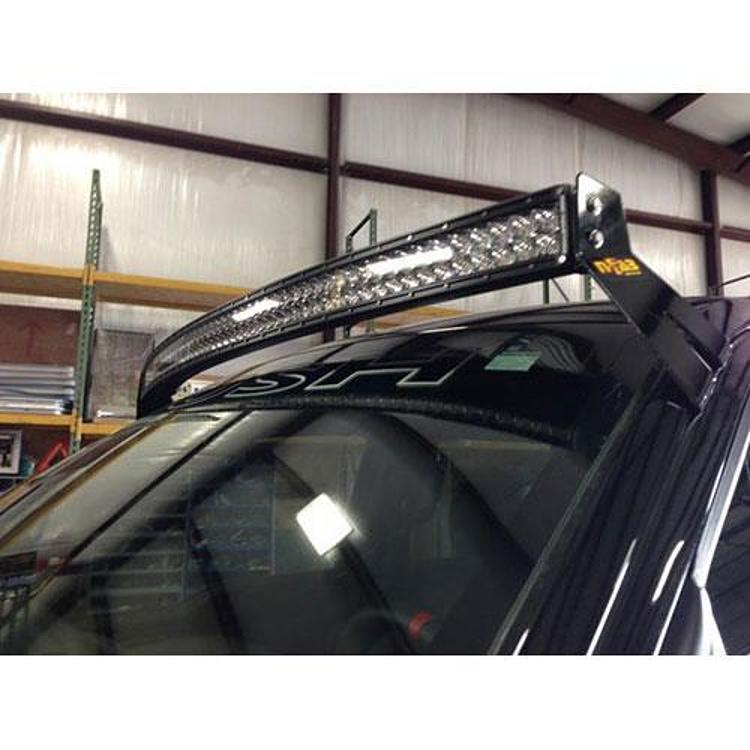

The Nfab F0954RLR-TX is a textured black side mount light bar bracket for Ford F-150 trucks from 2004 to 2014, including the SVT Raptor model and the 2004 Heritage edition. It gives an off-road light bar a sturdy side mounting point on the truck.

Nfab makes tubular bumpers, nerf bars, pre-runners and other off-road accessories for trucks and SUVs. This bracket is built from .084 wall steel in an all welded, one piece construction. Each part is zinc coated for corrosion protection, then finished in textured black powder coat.

A light bar bracket only holds the light, so the lights and their wiring are separate components that you choose to match the bracket’s mounting points.

Key features

  • Side mount design for an off-road light bar
  • All welded, one piece construction
  • .084 wall steel
  • Zinc coated for corrosion protection
  • Textured black powder coat finish
  • Direct fit listing for the 2004–2014 Ford F-150 range

Side mount bracket setup

A side mount bracket places the light bar beside the truck’s front corner rather than on the bumper, which changes how the load travels through the bracket. The mounting points on the frame or body need to be clean and solid, and the bracket should sit square so the bar stays level with the ground and aims where you intend.

Choose a light bar whose mounting pattern and weight suit a side bracket. Lighter bars place less stress on the welds and fasteners, and a bar that sits lower may need extra aim adjustment after installation. Check the fasteners after rough trips, since vibration loosens them gradually over time.

Corrosion is the main long-term issue for steel brackets. The zinc coat and textured black powder coat protect the metal, but stone chips and road salt can break through, so inspect the edges and welds once a season and touch up any bare spots promptly. Replace the bracket if cracks appear at the welds or if it bends under load.

Specifications

Brand Nfab
Part number F0954RLR-TX
UPC 843206109043
Mount type Side mount light bar bracket
Material Steel, .084 wall
Construction All welded, one piece
Corrosion protection Zinc coated
Finish Textured black powder coat
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2004 to 2014 Ford F-150 trucks, including the SVT Raptor, in the FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, 60th Anniversary Edition, XL and XLT trims. It also fits the 2004 Ford F-150 Heritage in the SVT Lightning, XL and XLT trims.

Trucks from 2015 and later, and other Ford models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Check the package contents against your installation plan before starting.

Not included: the light bar and its wiring.

SKU: N/FF0954RLR-TX Category:

Specification

Shipping weight 6.00 lbs
Package dimensions 16.00 × 5.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502004–2014FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, SVT Raptor, THE 60TH ANNIVERSARY EDITION, XL, XLT
Ford F-150 Heritage2004SVT Lightning, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Nfab F0954RLR-TX fit a 2015 or newer Ford F-150?

No. The bracket fits 2004 through 2014 Ford F-150 trucks only, so 2015 and newer models are not covered. Double-check the year, model and trim before buying.

What material and finish is the F0954RLR-TX bracket?

It is steel with .084 wall thickness, all welded in one piece, zinc coated for corrosion protection, and finished in textured black powder coat.

What is the part number and UPC of this light bar bracket?

The part number is F0954RLR-TX and the UPC is 843206109043. The brand is Nfab, and the bracket is a side mount design for an off-road light bar.

Can I add a light bar to a truck that already has a bumper light?

Yes, provided the wiring and fuses can handle the combined load. Each light should run on its own fused circuit or relay, and the aim of each bar should be checked so it does not dazzle oncoming drivers. A relay keeps the factory wiring from overheating.
