Overview

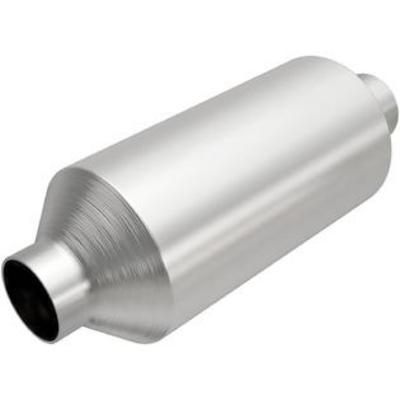

The MagnaFlow 3321005 is a universal California catalytic converter, part number M/F3321005, with 2.25 in inlet and outlet connections. It measures 11 in long and 4 in wide. Its connections and length must suit the exhaust it joins.
The part carries a California designation in its name. This unit is not air tube kit adaptable.
Key features
- 2.25 in inlet and outlet
- 11 in length
- 4 in width
- Not air tube kit adaptable
Before you install a converter
A catalytic converter treats exhaust gases before they leave the tailpipe, so it sits in the middle of the system where heat is highest. Its job depends on the engine running correctly. Rich fuel mixtures, misfires or oil consumption can overheat or contaminate the converter, which shortens its life. If a replacement fails early, look at the engine condition as well as the part itself.
Because the converter is a rigid section, its connections need to line up with the pipes on either side without forcing. Support the weight with hangers, and keep clear of heat shields and body panels. Gaskets and clamps are often replaced at the same time as the converter, so check them while the system is apart. Some vehicles also use oxygen sensors near the converter, and a sensor may need to be moved or reused. Take your time with the alignment, since a strained joint can leak or crack under heat.
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | M/F3321005 |
| Inlet and outlet | 2.25 in |
| Length | 11 in, overall length |
| Width | 4 in |
| Air tube kit | Not adaptable |
Vehicle fitment
A catalytic converter is sized to a specific exhaust, so match the 2.25 in connections and overall layout to your pipes before installation. It is a universal fit part, so no make, model or year applies.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check local emissions rules for your vehicle before fitting a catalytic converter. This unit is not air tube kit adaptable, so an air tube kit will not work with it.
