Overview

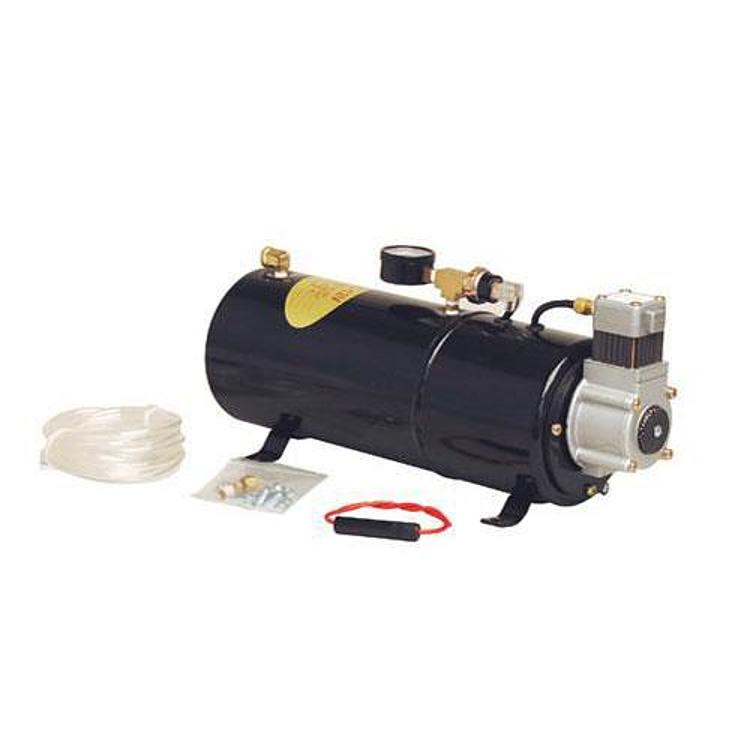

The Kleinn Train Horns 6120 is an all-in-one 110 psi onboard air system. The compressor comes pre-mounted on a 3 liter air tank, with the pressure switch and fittings pre-installed.
The 6120 is compact and simple to hook up. It is well suited to smaller train and truck horns and is universal fit.
Key features
- All-in-one 110 psi air compressor
- Pre-mounted on a 3 liter air tank
- On/off pressure switch pre-installed
- Fittings pre-installed
Power wiring for a compressor
Compressors draw a large current when they start, so the power wire, fuse and relay should be sized for the amp draw. A short, direct run from the battery reduces voltage drop. Keep the fuse close to the battery so a fault on the wire is isolated quickly.
Mount the compressor on a flat, solid surface away from direct water spray and heat. Good airflow around the unit helps it stay cool, and a clean intake keeps it breathing easily. After mounting, check every air line and fitting for leaks with soapy water before relying on the system. Recheck these points during routine service.
- Keep the battery connection short
- Fuse close to the battery
- Check fittings for leaks with soapy water
Specifications
| Brand | Kleinn Train Horns |
|---|---|
| Model | 6120 |
| Max pressure | 110 psi |
| Tank capacity | 3 liter |
| Length | 15.75 in |
| Width | 5.25 in |
| Height | 6.75 in |
| Amp draw | 17 |
| Pressure switch | On/off |
Vehicle fitment
Universal fit, with no year, make or model named. It suits smaller train and truck horns, so match the compressor’s capacity to the horn you plan to run.
Installation notes
The compressor and fittings come pre-installed, so setup centers on mounting the unit and hooking up the air lines. Size the fuse or breaker for the listed amp draw of 17.
What’s included
Compressor pre-mounted on a 3 liter air tank, with pressure switch and fittings pre-installed.
