Overview

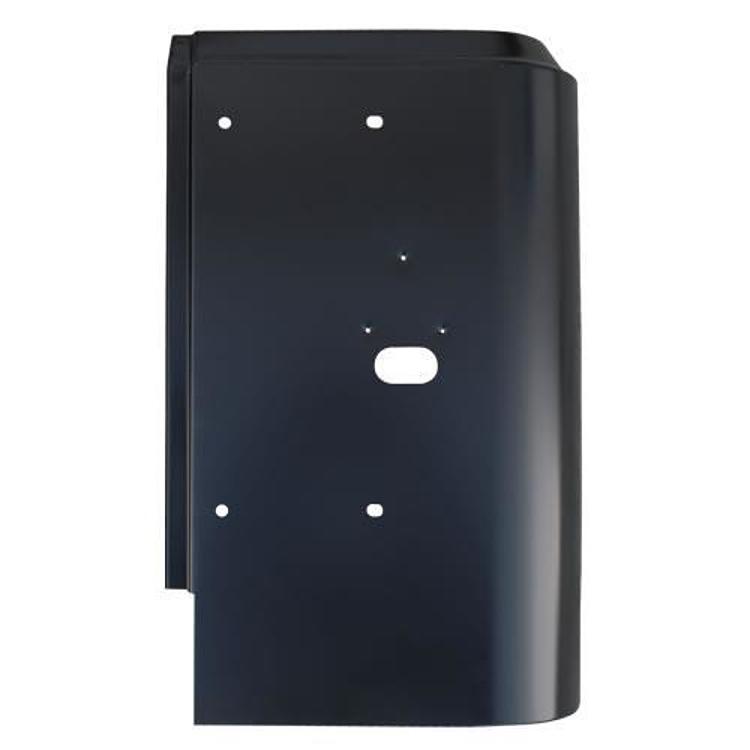

The Key Parts 0485-136 is a replacement tail light body panel for the passenger side of the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Jeep Wrangler (LJ). It is sheet metal for rust and collision repair around the tail light area, pressed from high gauge steel.
The finish is OEM Electro-Deposit primer (EDP). Key Parts describes its body panels as made to replicate exact OEM fitment, and the trims named in the fitment section apply to this panel.
Key features
- Passenger side placement at the tail light area
- High gauge steel
- OEM Electro-Deposit primer (EDP) finish
- Fits the TJ and LJ Wrangler in the trims shown in Vehicle fitment
Tail panel repair tips
Tail light body panels sit at the rear corner, where water collects around the lamp seal and runs down into the quarter area. Rust often shows first at the lower edge and then spreads into hidden seams. Before cutting, check the inside of the panel and the surrounding rear corner for thin metal, and note any water staining in the cargo area that suggests a leak path.
Plan the work around the wiring. Lamp harnesses run through the rear body openings, so disconnect power, label connectors and keep the harness clear of heat and sparks. Test fit the new panel with the lamp assembly in place to confirm the opening lines up before welding or bonding anything permanent.
- Disconnect the battery before cutting
- Remove the lamp assembly before cutting nearby
- Check the rear floor and spare tire well for rust
Specifications
| Brand | Key Parts |
|---|---|
| Part number | 0485-136 |
| UPC | 70000700337 |
| Position | Passenger side, tail light body panel |
| Material | High gauge steel |
| Finish | OEM Electro-Deposit primer (EDP) |
| Fit type | Direct fit |
Vehicle fitment
The manufacturer fitment list includes the 1997–2006 Jeep Wrangler (TJ) in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims, and the 2004–2006 Jeep Wrangler (LJ) in the Unlimited and Unlimited Rubicon trims. Wrangler JK and JL bodies are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Disconnect the battery before cutting or welding near the rear lamp area, since the wiring harness runs close to the body panel.
What’s included
Check the included items against your repair plan before starting. Not included: tail light lamp assembly and wiring.
