Overview

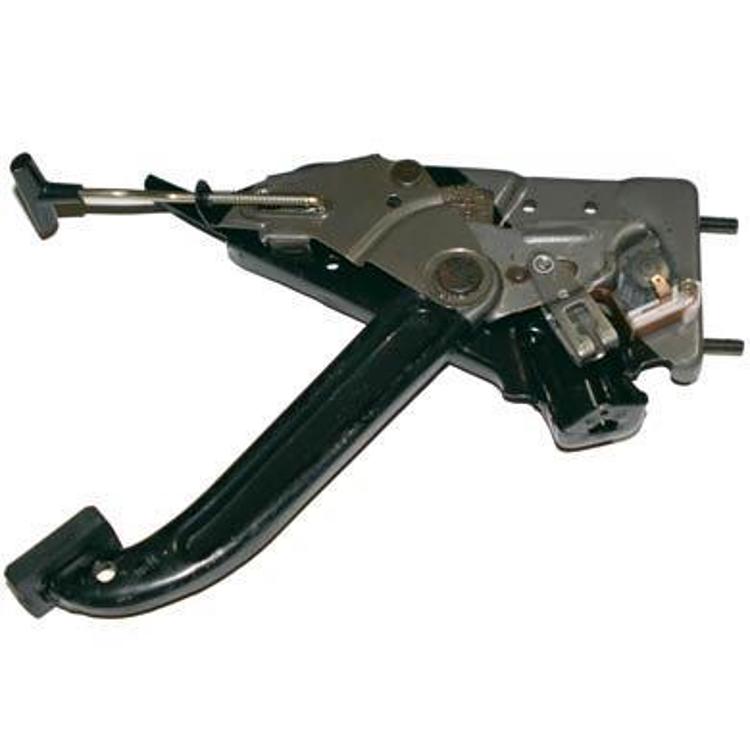

The Jeep emergency brake pedal assembly, part number 5093656AA, is a complete pedal assembly for the emergency brake. It includes all pedal assembly parts, so it is offered as a full assembly rather than a single pedal.
Emergency brake pedal function
The emergency brake pedal is a ratchet style control that sets the parking brake cables when pressed. It works with a pawl and release mechanism, so its pivot, return spring and ratchet teeth all affect how firmly the brake holds.
Pedal assemblies wear at the pivot bushings, the ratchet pawl, and the return spring. A pedal that sags, sticks down, or releases unevenly usually points to worn parts. Clean and lubricate the pivot and ratchet during service, and check for cracks or bends in the bracket where the pedal mounts to the floor.
Before replacing the whole pedal, check the cable adjustment and the rear brake release. Stretched cables can make a new pedal seem to fail. After installation, test the hold on a slope and confirm the release fully frees both rear wheels.
- Inspect the ratchet teeth
- Check the pivot bushing for wear
- Test the return spring action
- Confirm full rear brake release
Specifications
| Brand | Jeep |
|---|---|
| Part number | 5093656AA |
| Component | Emergency brake pedal assembly |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering, and match the pedal mounting and bracket shape to your original pedal.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The assembly includes all pedal assembly parts. Check the hardware and brackets against your original pedal before starting the swap.
