Overview

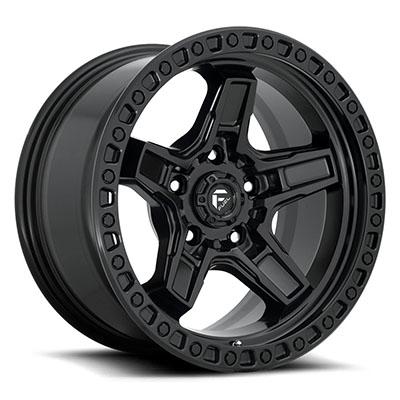

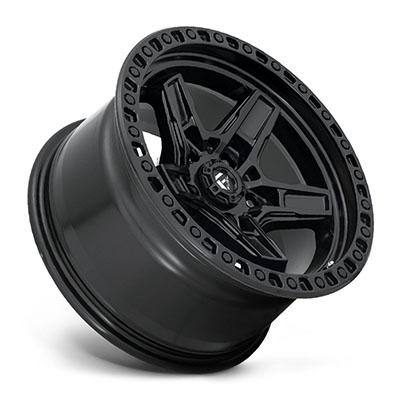

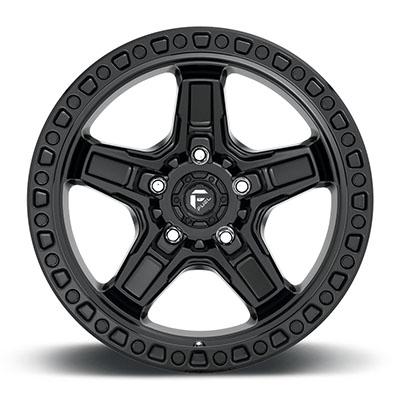

The FUEL Off-Road Kicker 5 D697 is a 17 by 9 inch aluminum spoke wheel in matte black, part MHTD69717907545. It is a wheel for trucks and SUVs, and it carries a Universal Fit label instead of being built for named vehicles.
FUEL Off-Road says its wheels come in a wide range of bolt pattern and offset combinations. For this model, the offset (-12), center bore (72) and backspacing (4.53) are the figures to match against your vehicle before mounting.
Key features
- Aluminum construction
- Spoke style with a matte black finish
- 17 inch diameter and 9 inch width
- 5 on 5 bolt pattern
- Offset -12, center bore 72 and backspacing 4.53
Mounting and clearance
Offset and backspacing decide how far the wheel sits inside the fender and how close the tire comes to brake calipers and steering components. Negative offset pushes the wheel outward, while a higher positive value tucks it inward. Trail riding adds side loads, so a wheel with clearance at rest can still rub once the suspension flexes.
Before mounting, clean the hub face and check that it is free of rust or debris, since trapped material can cause the wheel to sit slightly off center. Torque the lug nuts in a star pattern, then recheck them after the first few drives as the wheel seats.
- Clean hub and wheel mating surfaces
- Torque in a star pattern
- Recheck after the first drives
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Model | Kicker 5 D697 |
| Part number | MHTD69717907545 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5 |
| Offset | -12 |
| Center bore | 72 |
| Backspacing | 4.53 |
| Style | Spoke |
| Finish | Matte black |
| Construction | Aluminum |
Vehicle fitment
No specific vehicles are named for this wheel. Fit depends on bolt pattern, offset, center bore and backspacing, so match those figures to your hub and fender clearance rather than relying on the universal label.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Offset and backspacing decide how far the wheel sits inside the fender and how close it comes to suspension and brake parts. Check clearance with the tires you plan to run before mounting the wheel.
What’s included
Lug nuts, center caps and valve stems are not covered here. Check the package contents against your installation before starting.
