Overview

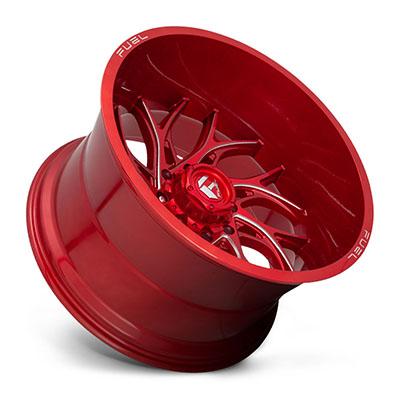

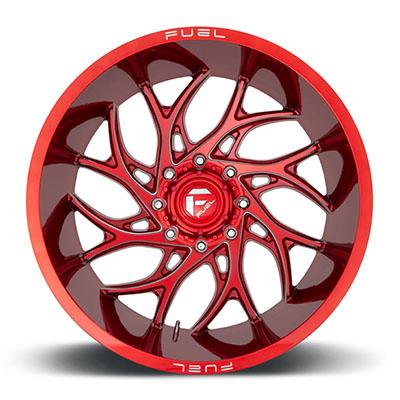

The FUEL Off-Road D742 Runner is a 20 by 9 inch aluminum directional wheel in red milled finish, part number MHTD74220907550. It has a 5 on 5 bolt pattern, a 72 center bore, a 1 offset and a 5.04 backspacing.
Compare the 5 on 5 pattern and 72 center bore against your hub first. A 1 offset sits close to the wheel’s centerline, so it changes how far the wheel reaches toward the fender compared with a negative offset.
Key features
- Aluminum construction with a red milled finish.
- Directional style for a single rotation direction.
- 5 on 5 bolt pattern.
- 20-inch diameter and 9-inch width.
- Offset of 1 and backspacing of 5.04.
- Series D742 Runner.
Before you mount
Hub-centric fit matters most with a wheel of this size. The center bore should seat on the hub so the wheel is centered rather than carried only by the lug studs. If the bore is larger than the hub, a hub-centric ring can close the gap, and a loose fit can cause a vibration that is often mistaken for a balance problem. Clean the mounting face and hub before fitting so no debris holds the wheel off its seat.
After the first few drives, re-check lug nut tightness and look at the seats for shiny contact marks or dents. A directional wheel should also be checked for correct rotation before the tire is set. Pair the wheel with tires sized for its diameter and width, and have an installer confirm the tire clears the fender at full steering lock.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74220907550 |
| Series | D742 Runner |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | 1 |
| Backspacing | 5.04 |
| Construction | Aluminum |
| Style | Directional |
| Finish | Red/Milled |
Vehicle fitment
No vehicle is named for this wheel, and it is not tied to one make, model or year. Because the bolt pattern, center bore and offset must match a specific hub, confirm fit for your vehicle’s year, model and trim before ordering.
Check the 5 on 5 bolt pattern and 72 center bore against your vehicle before mounting.
Installation notes
The 72 center bore should be checked against your hub bore before mounting, because a mismatch can keep the wheel from seating properly. Keep the directional orientation the design calls for when the wheel goes on.
What’s included
Check the package contents against your installation before starting.
Not included: Confirm whether tire and lug hardware are needed for your setup before mounting.
