Overview

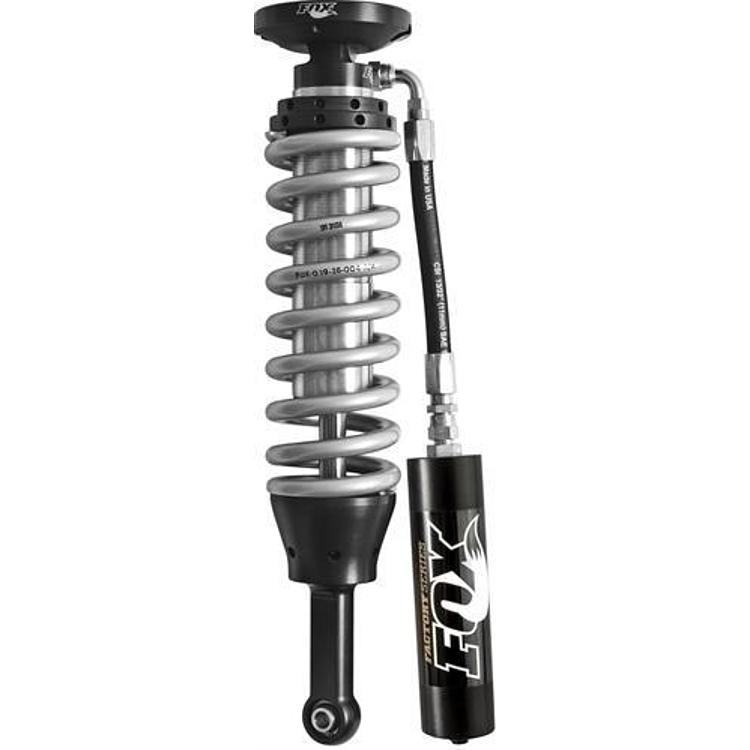

The Fox Racing Shox 2.5 Factory Series coilover reservoir shock set, part number 883-02-132, is a front shock set for 2014–2018 Ford F-150 trucks with a lift range of 0 to 2 in.
Fox designs these direct replacement shocks for applications from stock to lifted. Confirm the extended length, stroke, finish and charge type against your truck before ordering.
Key features
- Fox 2.5 Factory Series coilover reservoir design
- Direct fit replacement for listed F-150 trucks
- Front position
- Listed lift range of 0 to 2 in.
Choosing a coilover set
A coilover reservoir shock combines the damper and spring in one assembly, with a separate reservoir that gives the oil more room to cool and keep damping steady. On a truck driven hard off road, that separation helps reduce fade on long descents and repeated hits. The reservoir also needs clear mounting space, so check frame and body clearance before installation. Look over the reservoir hose and its clamp after the first few drives for chafing.
Spring rate and ride height matter as much as the shock itself. When a truck is lifted, the spring and shock need to be matched to the new height, or the suspension may sit too high or ride harshly. Replacing the shocks as a pair on the same axle keeps the ride even from side to side.
- Reservoir hose routing and clearance
- Spring rate matched to the lift
- Upper and lower mount bushing wear
- Replace shocks in pairs on one axle
Specifications
| Brand | Fox Racing Shox |
|---|---|
| Part number | 883-02-132 |
| UPC | 700007267801 |
| Position | Front |
| Fitment type | Direct Fit |
| Lift range | 0 to 2 in. lift |
| Series | 2.5 Factory Series coilover reservoir |
Vehicle fitment
The fit covers 2014–2018 Ford F-150 in FX4, King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, STX, XL and XLT trims.
The list does not include 2019 or later F-150 models. Confirm your vehicle’s year, model and trim before ordering.
What’s included
This is a shock set. Check the package contents for the number of shocks and mounting hardware before starting the installation.
