Fox Racing Shox 2.0 Series Emulsion Shock with Remote Reservoir – 980-24-637

Fox Racing Shox

Shop Fox Racing Shox Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fox Racing Shox 980-24-637, a 2.0 Series emulsion shock with remote reservoir
  • 12 in travel with 30.19 in extended and 18.19 in collapsed length
  • Remote reservoir 2.0 in diameter by 11 in long
  • Stem top / bushing mount; black and zinc finish
  • UPC 70000561922; fitment not listed

Description

Overview

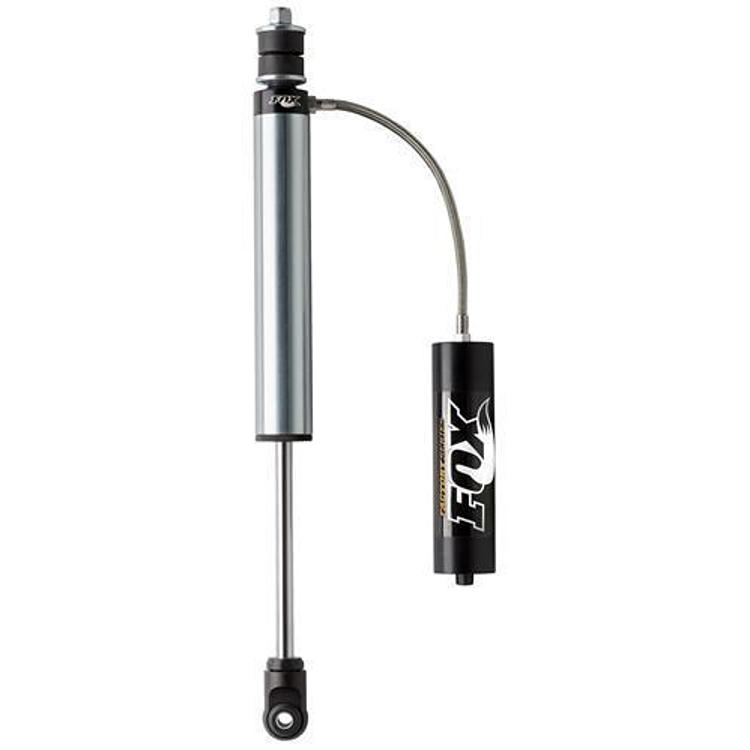

The Fox Racing Shox 980-24-637 is a 2.0 Series emulsion shock with an 11-inch remote reservoir and 12 inches of travel. The shock body is 2.0 inches across, and the shock is listed with a stem top / bushing mount.

Extended length is 30.19 inches and collapsed length is 18.19 inches. Fox describes its shocks as capable of being valved to a vehicle’s specific driving needs, so these lengths are the first thing to check against the shock you are replacing.

Key features

  • 12 inches of travel with 18.19-inch collapsed and 30.19-inch extended lengths
  • Remote reservoir measuring 2.0 in diameter by 11 in long
  • 2.0-inch body and 5/8-inch shaft
  • Stem top / bushing mount
  • Black and zinc finish

Matching stroke to the vehicle

Stroke is the distance a shock can move between its collapsed and extended lengths. Matching stroke to what the suspension actually uses prevents the shock from bottoming out or running into its end stops. Measure the shock you are replacing at both ends of its travel, and compare those measurements with the lengths before choosing a replacement.

A remote reservoir should be checked alongside the shock body. The reservoir adds bulk, so measure its clearance from the wheel, frame and any body panels. Route the hose so it stays clear of sharp edges and moving parts. Recheck the clearance after the first off-road trip.

  • Measure the old shock at both ends
  • Check reservoir clearance from tires
  • Route the hose clear of edges
  • Recheck after the first off-road trip

Specifications

Brand Fox Racing Shox
Part number 980-24-637
UPC 70000561922
Series 2.0 Series
Shock type Emulsion with remote reservoir
Body diameter 2.0 in
Reservoir 2.0 in diameter x 11 in length
Travel 12 in
Shaft diameter 5/8 in
Extended length 30.19 in
Collapsed length 18.19 in
Finish Black and zinc
Mount Stem top / bushing

Vehicle fitment

Fitment is not confirmed here. Compare the 18.19 inch collapsed and 30.19 inch extended lengths with the shock you are replacing before fitting.

A 12-inch travel shock may need more clearance at full extension than a shorter option. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm whether your vehicle needs the stem top or bushing mount before installing. Route the remote reservoir hose away from moving parts and the tire.

What’s included

Compare the included hardware with your installation plan before starting.

SKU: FOX980-24-637 Category:

Specification

Shipping weight 21.00 lbs
Package dimensions 28.80 × 5.80 × 5.80 in
brands

Questions & Answers

What is the travel on the Fox 980-24-637?

Travel is 12 inches. Extended length is 30.19 inches and collapsed length is 18.19 inches, on a 2.0-inch body with a 5/8-inch shaft and an 11-inch remote reservoir.

Can I use the Fox 980-24-637 on my vehicle?

Fit depends on your year, model and trim, so check those first. Compare the lengths and the stem top / bushing mount with your current shock before fitting.

What is the UPC for the Fox 980-24-637?

The UPC is 70000561922. The part number is 980-24-637, and the shock is a 2.0 Series emulsion design with a remote reservoir in black and zinc.

Does a longer stroke change how a shock feels?

Yes. A longer stroke allows the suspension to move further before the shock reaches its limit, which can improve the ride over uneven ground. It also changes ride height and clearance at full extension, so check those measurements before installing. Keep the mounting points in good condition.
