Overview

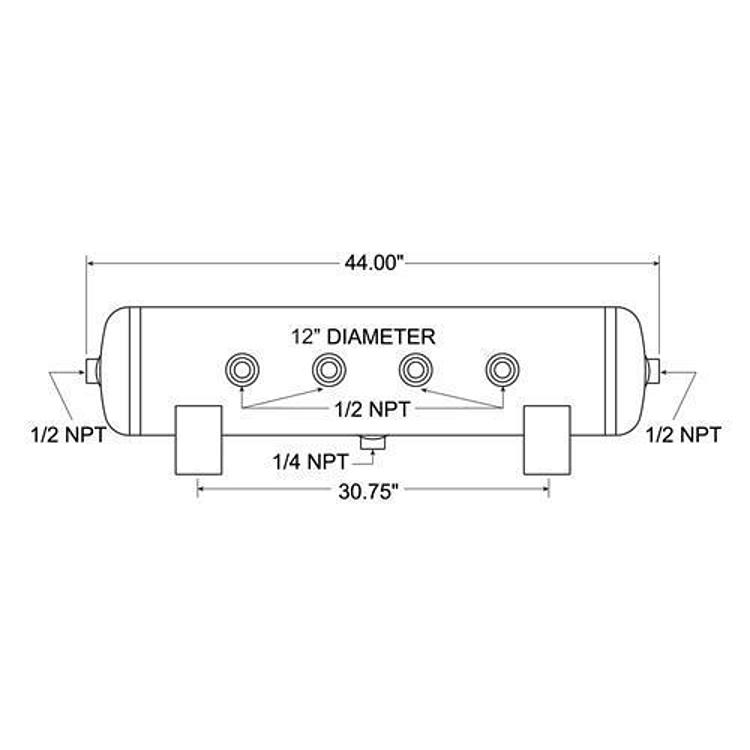

The Firestone Ride-Rite 9277 is a 20 gallon air tank and reservoir, 12 inches in diameter and 44 inches long, rated to 150 psi maximum. It is made of corrosion resistant steel and coated inside and outside to resist corrosion. It is tested to SAEJ10 compliance.

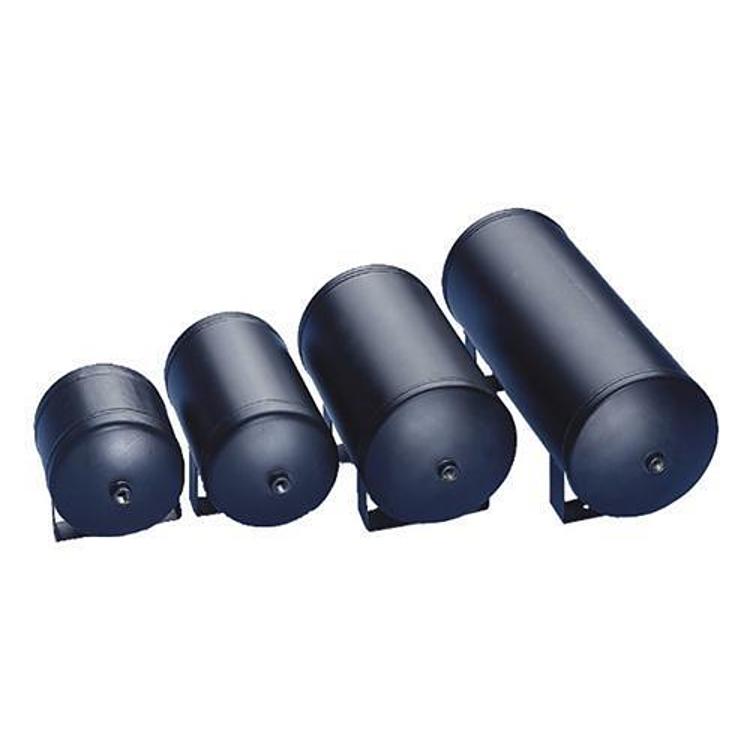

The 9277 is the top size in Firestone’s range of individual tanks, which runs from 1/4 gallon to 20 gallons. It has six 1/2 NPT bungs and one 1/4 NPT bung for fittings.
Key features
- 20 gallon capacity
- 12 inch diameter, 44 inch length
- Corrosion resistant steel, coated inside and out
- Maximum air pressure 150 psi
- Six 1/2 NPT bungs and one 1/4 NPT bung
Large reservoir considerations
A large reservoir stores a significant volume of compressed air, which lets a compressor rest between cycles and gives tools a steady supply. The trade-off is size and weight. A full tank is heavy, so the mounting point, straps or brackets must carry the load securely and avoid flexing the surrounding panels.
Placement affects service access as well. Position the tank where the drain and fittings can be reached without removing other components. Protect the tank from road debris and keep it away from exhaust heat. Inspect the mounts periodically, since vibration can loosen hardware over time.
- Confirm the mounts can carry a full tank
- Keep drain and fittings accessible
- Shield the tank from debris and heat
- Inspect mounts for loosening
Specifications
| Brand | Firestone Ride-Rite |
|---|---|
| Part number | 9277 |
| UPC | 767555111017 |
| Tank capacity | 20 gallon |
| Tank diameter | 12 inches |
| Tank length | 44 inches |
| Tank material | Corrosion resistant steel |
| Maximum air pressure | 150 psi |
| Fittings | Six 1/2 NPT bungs, one 1/4 NPT bung |
| Compliance | SAEJ10 |
Vehicle fitment
The tank is Universal Fit and is not tied to a specific vehicle. Its 44 inch length needs clear mounting space, so measure the install area before ordering.
Installation notes
Confirm there is room for a 12 inch diameter, 44 inch long tank and that the plumbing reaches all bungs. Keep system pressure at or below the 150 psi maximum.
What’s included
The package is the tank only, so plan for fittings and mounting hardware separately.
