Overview
The Firestone Ride-Rite 2366 is a 2 in. air spring lift spacer, sold as a pair, for most Air Ride-Rite air helper spring systems. Its lower bracket attaches to the axle/left stack, and Firestone gives the distance between brackets as 7.5 in. to 8.5 in.
Key features
- 2 in. spacer height
- Sold as a pair
- Axle or leaf mount
- Lower bracket attaches to the axle/left stack
Matching bracket spacing
Air helper spring spacers only work when the bracket spacing is right. A spacer that sits outside its range can pull the air springs out of line, put side load on the mounts and wear bushings faster than normal. Measuring the brackets on both sides of the vehicle gives you a clear basis for deciding whether a spacer will fit.
Because a pair is used, both sides should match so the load is shared evenly. Check the mounting hardware and the air lines once the spacers are in place, and confirm that the air springs do not rub the frame or body at full travel. Inspect the spacers periodically for wear, corrosion and loose hardware, especially after towing or off-road use.
- Measure both sides before ordering
- Confirm mounts are square to the axle
- Check clearance at full air spring travel
Specifications
| Brand | Firestone Ride-Rite |
|---|---|
| Part number | WR17602366 (OEM#) |
| UPC | 767555110690 |
| Spacer height | 2 in. |
| Quantity | Pair |
| Mounting | Axle or leaf mount |
| Lower bracket attachment | Axle/left stack |
| Distance between brackets | 7.5 in. to 8.5 in. |
| Compatibility | Most Air Ride-Rite systems |
Vehicle fitment
This spacer is universal fit for most Air Ride-Rite air springs. Confirm your current air spring setup matches its bracket spacing and mount type before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the span between your existing air spring brackets and check that it falls within 7.5 in. to 8.5 in. before ordering, because bracket spacing decides whether this spacer lines up.
What’s included

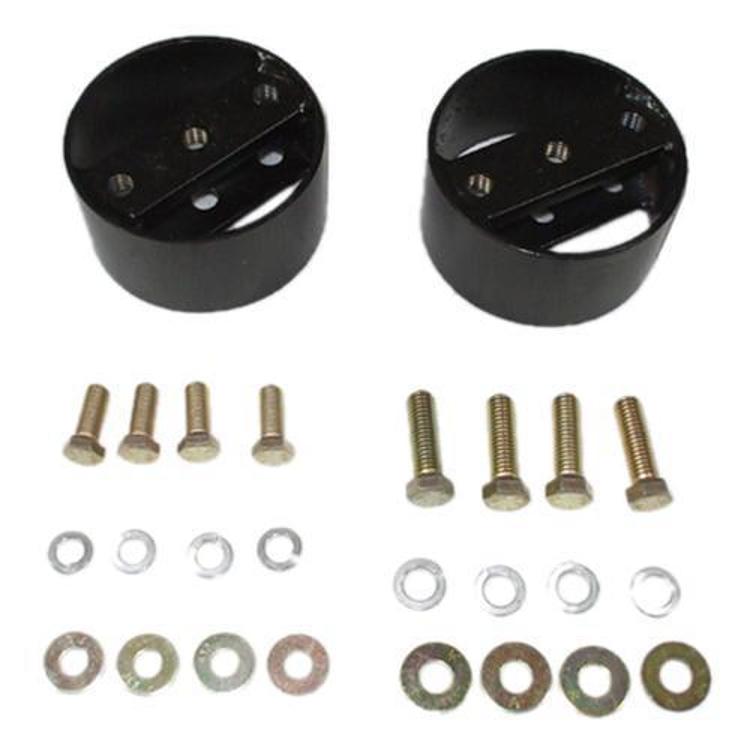

Two 2 in. lift spacers, supplied as a pair.
