Overview

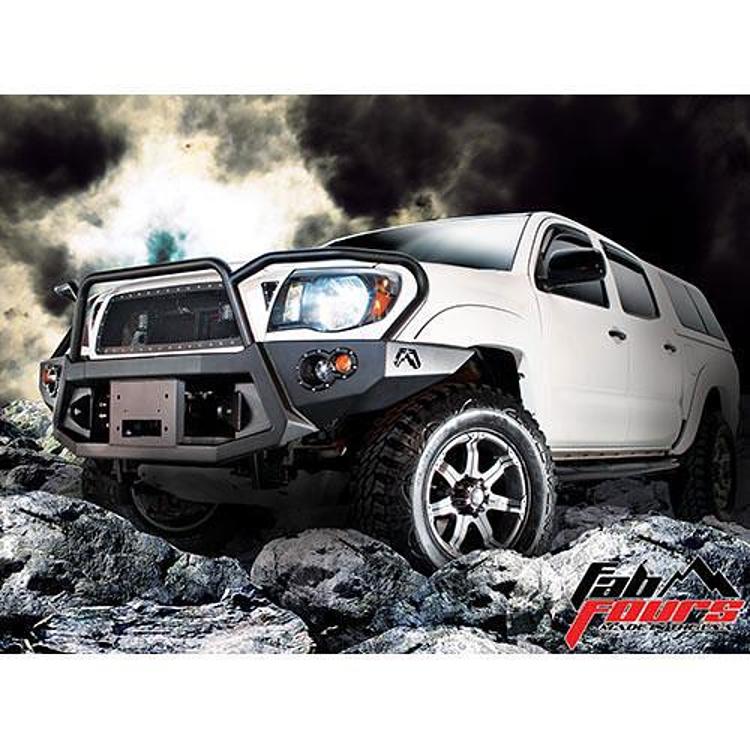

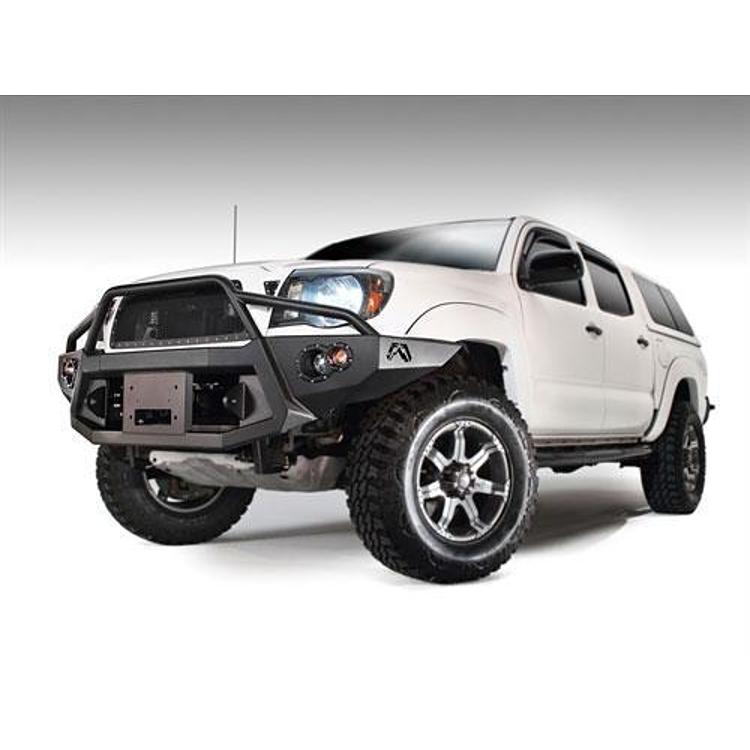

The Fab Fours Heavy Duty Winch Front Bumper with Lights and D-ring Mounts, part number TT05-B1552-1, is a black powder-coated steel winch bumper for the 2005–2011 Toyota Tacoma.
The Tacoma bumper belongs to Fab Fours’ Premium line, which the company says focuses on strength and durability and leaves room around the tires to prevent rubbing. Integrated fog and turn lights, air ducts and D-ring mounts are key features, and the bumper accepts winches up to 10,000 lb. It is offered in a full guard, pre-runner guard or base bumper style. The bumper is made in the USA from 3/16 steel with a 1/4 inch boxed mounting system that adjusts to a custom fit, and the 90mm fog and 60mm turn lights are included. For owners comparing versions, the same Tacoma bumper is available with a full guard, a pre-runner guard or no guard, and this part number is the pre-runner version listed with D-ring mounts and lights. Its winch mount and 3/4 inch D-ring mounts are part of the bumper.
Key features
- Winch ready: accepts winches up to 10,000 lb or smaller
- 3/4 inch D-ring mounts
- Fab Fours 90mm fog and 60mm turn indicator lights included
- 1/4 inch boxed mounting system with adjustment for a custom fit
- Air ducts
- 3/16 steel, black powder coat, made in the USA
Winch bumper setup
A winch bumper carries the winch load into the frame, so the winch and its mount should be installed with the rated line and hardware in mind. Check that the winch mounting plate sits flat against the bumper and that the fasteners are tight before the first pull. Keep the winch line clear of the lights and air ducts when spooling.
Lights on this bumper are aimed at the road, so check the beam after mounting. Before a trip, inspect the winch wiring, the D-ring mounts and the boxed mounting system. Winch use can loosen hardware through vibration, so re-check fasteners after the first recovery.
- Match the winch to its rated capacity
- Use a rated fairlead or roller
- Check D-ring mount bolts after recovery
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | TT05-B1552-1 |
| UPC | 5810104566 |
| Position | Front |
| Width | Full |
| Material | Steel, 3/16 |
| Finish | 2-stage matte black powder coat (bare steel is -B instead of -1) |
| Winch rating | Up to 10,000 lb or smaller |
| D-ring mounts | 3/4 in, included |
| Winch mount | Included |
| Light mounts | Included |
| Lights | 90mm fog and 60mm turn indicator lights included |
| Fit type | Direct fit |
Vehicle fitment
The TT05-B1552-1 fits the 2005–2011 Toyota Tacoma in Base, Pre Runner and X-Runner trims.
The bumper is for the 2005–2011 Tacoma and does not cover the 2012–2015 Tacoma, which uses different Fab Fours bumpers. Confirm your vehicle’s year, model and trim before ordering.
What’s included
- Winch front bumper
- Winch mount
- D-ring mounts
- 90mm fog and 60mm turn indicator lights
Not included: A winch.
