Overview

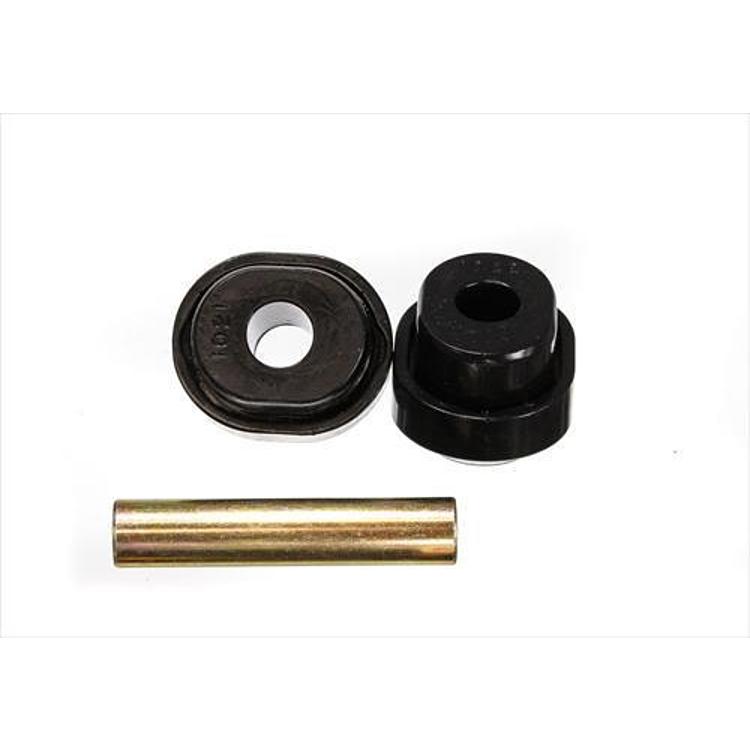

The Energy Suspension 5.1101G is a black polyurethane transmission mount set, part number 5.1101G, for Dodge D-series, W-series and Ramcharger trucks. It fits 1971–1987 model years, covering D100, D200, D300, Ramcharger, RD200, W100, W200 and W300 models.
The polyurethane is designed to be impervious to undercar fluids. Some Energy applications use a patented safety interlock, so check whether this set has one before ordering.
Key features
- Black polyurethane construction
- Impervious to undercar fluids, per Energy
- Fits automatic and manual transmissions
- Sold as a transmission mount set
Working with a mount set
A transmission mount set usually includes more than one cushion or bracket, and each piece has a specific position on the frame or crossmember. Mixing up positions can misalign the transmission and put stress on the shifter, driveshaft and exhaust. Before removing anything, mark the orientation of each original mount and note how the brackets sit. Polyurethane components are firmer than factory rubber, so exact placement matters more when the replacement is installed.
Older Dodge D-series and W-series trucks often have rusted frame brackets, and those should be inspected before the new mounts go in. Look for cracks, elongated holes and loose rivets or welds. Support the transmission while swapping the mounts so the weight does not hang on a single point. After the first drives, check every fastener again, since new mounts can settle and loosen. Keep the set together in a bag until installation so no pieces go missing.
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 5.1101G |
| UPC | 703639368120 |
| Type of mount | Transmission mount set |
| Fitment type | Direct fit |
| Mount material | Polyurethane |
| Color | Black |
| Transmission types | Automatic and manual |
Vehicle fitment
It fits these Dodge trucks: 1972–1979 and 1985–1987 D100 (Custom, Pickup Base, Warlock and Warlock II), 1972–1980 D200, 1971–1980 D300, 1974–1987 Ramcharger, 1980 RD200, and 1972–1977 W100 and 1972–1978 W200 and W300 models.
Dodge models outside these years are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Count the pieces and compare them with your original mounts before starting the installation.
What’s included
Count the pieces in the box and compare them with your original mounts before starting.
