Overview

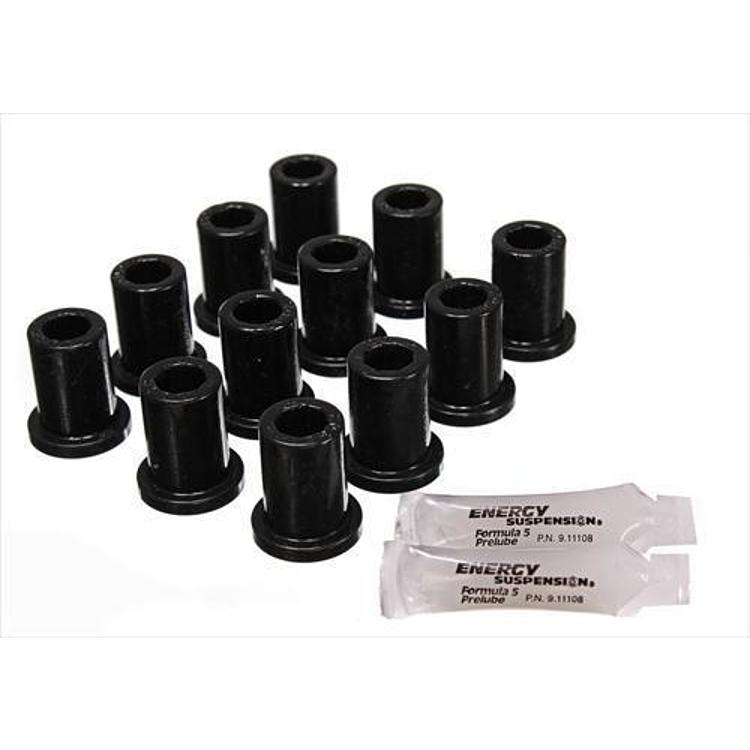

The Energy Suspension 8.2105G is a front and rear leaf spring bushing set in black polyurethane, part number 8.2105G. It is built to help the leaf spring system respond better during cornering, standing starts, braking and when crossing bumps and berms.
The main use is high-performance builds with heavy duty or performance leaf springs, and lighter-duty leaf spring systems also gain performance and durability. Confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Polyurethane bushings for both front and rear leaf spring positions
- Non-greaseable service type
- Designed for better control through turns and over uneven ground
- Suited to heavy-duty, performance and lighter-duty leaf springs
- Black color
Press fit and installation tips
Leaf spring bushings are usually pressed into the spring eye and any mounting sleeve, which means the job needs controlled force rather than a hammer. A shop press or a suitable press tool helps keep the bushing square and prevents it from cocking in the bore. Clean the bore and sleeve before starting, and check that the outside of the bushing is free of nicks that could catch as it goes in.
Work carefully around the spring and keep the vehicle supported on stands at all times. After installation, confirm that the spring rotates freely around the bushing, that no edges are pinched and that the hardware is tightened to specification. Recheck the fasteners after the first few trail or road runs, since settling can occur as the new bushings seat.
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 8.2105G |
| UPC | 703639401018 |
| Material | Polyurethane |
| Color | Black |
| Service | Non-greaseable |
| Position | Front/Rear |
| Fitment label | Universal Fit |
Vehicle fitment
Front and rear leaf springs are sized to each vehicle, so confirm the spring eye style against the bushings before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bushings are non-greaseable, so no grease is needed after fitting. Swapping leaf spring bushings usually requires the spring to come off, so support the vehicle on stands and use a suitable press.
What’s included
The set is a front/rear bushing set. Confirm the quantity and hardware before starting the install.
