Overview

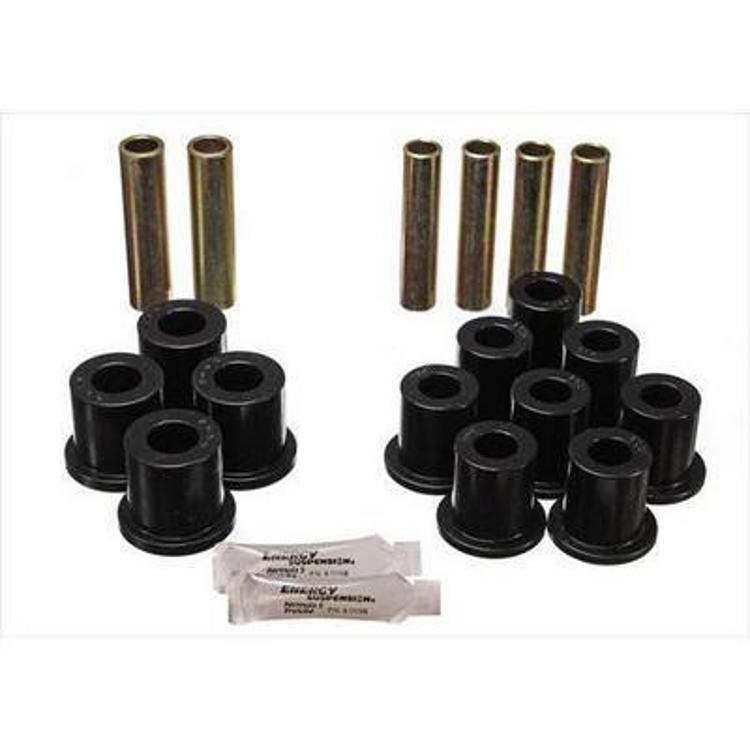

The Energy Suspension 4.2114G is a rear leaf spring bushing set in black, with common frame shackle bushings. The short description also mentions a complete spring and shackle set, so the included parts should be checked before fitting.
Polyurethane bushings help leaf spring systems handle turns, starts, braking and bumps. The design is non-greaseable.
Key features
- Rear leaf spring bushing set
- Common frame shackle bushings
- Black polyurethane
- Non-greaseable service type
Frame shackle bushings
Frame shackle bushings sit where the rear spring’s shackle attaches to the frame, so they handle the back-and-forth movement as the spring flexes. When they wear, the rear end can feel loose, and braking or starting may bring a knock from the back.
Before replacing them, check whether the shackle plates and bolts are in good condition. Worn shackle pins or sleeves can damage new bushings, so inspect the hardware at the same time. Treat the spring eye and shackle as one assembly during the job.
Working on one side at a time keeps the other side as a reference for alignment and height.
- Inspect shackle plates for elongated holes
- Replace bolts and sleeves if they are worn
- Check spring eye bushings during the same job
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 4.2114G |
| UPC | 703639330639 |
| Position | Rear |
| Color | Black |
| Material | Polyurethane |
| Service type | Non-greaseable |
| Shackle bushings | Common frame shackle |
Vehicle fitment
This set is universal fit, and no vehicle, year or chassis is named for it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the package contents against your installation before starting, including whether a spring and shackle are also included.
What’s included
A rear leaf spring bushing set in black with common frame shackle bushings.
Confirm whether a spring and shackle are in the package before installing.
