Overview

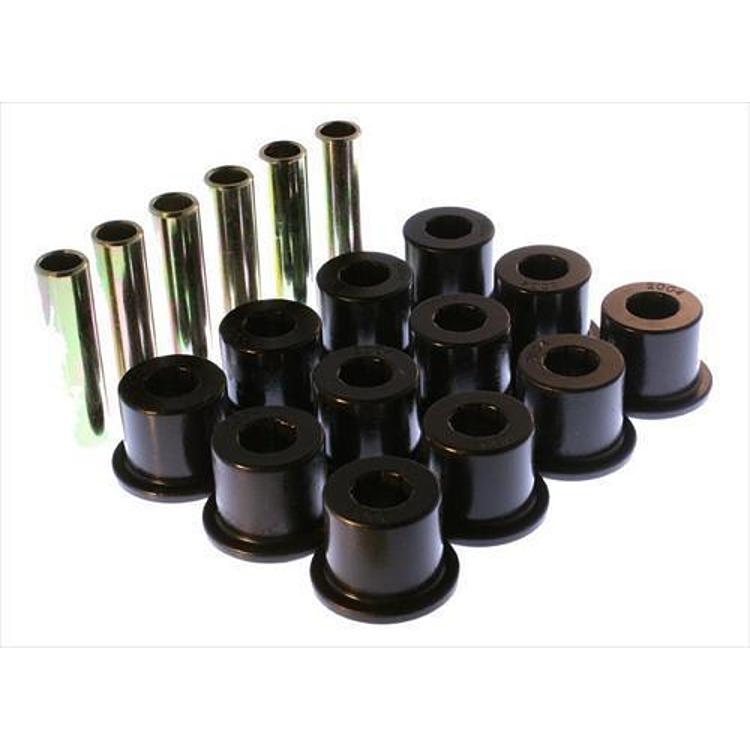

The Energy Suspension 3.2106G is a rear leaf spring bushing set in black polyurethane, made for a 1.5 in. main eye and a 1.5 in. OD frame shackle. It has an axle rating of 1700-2800 lb.
The polyurethane bushings improve control in turns, during hard starts, under braking and over bumps and berms. They also suit lighter-duty leaf spring systems.
Key features
- Polyurethane bushing set for rear leaf springs
- Works with a 1.5 in. OD frame shackle
- 1.5 in. main eye
- Axle rating 1700-2800 lb
- Non-greaseable design
- Black finish
Signs of worn bushings
Polyurethane leaf spring bushings wear more slowly than rubber, but they still wear. Movement at the spring eye and frame shackle shows up as clunking over bumps, loose handling in turns and uneven tire wear over time.
Because this set is non-greaseable, there is no grease to add when the bushings start to squeak. Cleaning dirt and grit from the joint and checking the shackle pins usually reveals the cause of the noise, and worn parts should be replaced as a pair.
Inspect the spring eyes with the vehicle safely supported. Look for cracking, flattened sleeves and side-to-side play in the shackles before deciding whether the set needs replacing.
- Clunks over bumps
- Play at the shackle pins
- Squeaks that persist after cleaning
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 3.2106G |
| UPC | 703639278061 |
| Position | Rear |
| Color | Black |
| Material | Polyurethane |
| Service type | Non-greaseable |
| Main eye | 1.5 in. |
| Frame shackle OD | 1.5 in. |
| Axle rating | 1700-2800 lb |
Vehicle fitment
It is a universal fit set and is not tied to a specific vehicle. Confirm your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The set is sized by the main eye and frame shackle diameters, so confirm both match your spring before installation.
What’s included
One rear leaf spring bushing set in black.
