Overview

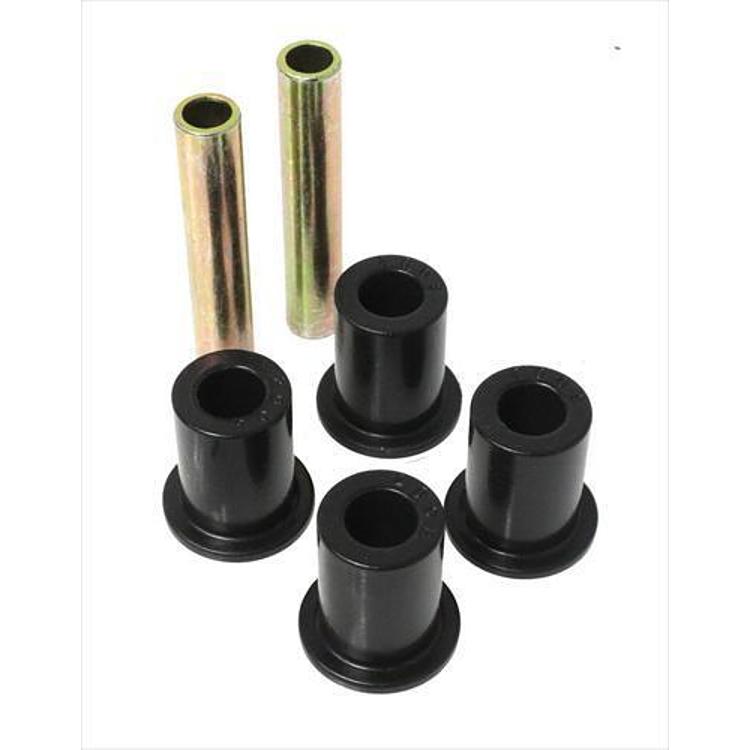

The Energy Suspension 3.2111G is a black polyurethane front frame shackle eye set for Chevrolet and GMC full-size trucks and Blazer or Jimmy SUVs from model years 1970 through 1991, including K10, K20 and K30 pickups and Suburbans.
Energy Suspension says its polyurethane eyes let the suspension travel its full range without binding, and points to worn, soft rubber eyes as a frequent reason a vehicle wanders on the road.
Key features
- Front frame shackle eye design
- Black polyurethane eyes
- Non-greaseable service
- Covers K-series trucks and Blazer models in the list
- Direct fit for the listed vehicles
Front frame eyes and steering
The frame shackle eye sits at the front of the leaf spring and controls how the spring moves relative to the frame. When the eye is soft or worn, the spring can shift under braking and cornering, and the steering may feel vague. Polyurethane holds its shape better than soft rubber, which supports steadier tracking on the road.
Before installing a new eye set, check the frame bracket and the spring eye for cracks or elongated bolt holes. Replacing the eye alone will not solve a frame problem, so fix any damage first. Torque the fasteners once the vehicle is at ride height.
- Check the frame bracket for cracks or elongated holes
- Inspect the spring eye for wear before fitting the new set
- Recheck fasteners after the first drive
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 3.2111G |
| UPC | 703639278245 |
| Product | Frame shackle eye set |
| Type | Polyurethane |
| Position | Front |
| Color | Black |
| Service | Non-Greaseable |
| Fitment type | Direct Fit |
Vehicle fitment
Covered models include Chevrolet Blazer and K5 Blazer, K10, K20 and K30 pickups and Suburbans, V10, V20 and V30 trucks, GMC Jimmy, GMC K15, K25, K1500 and K2500 models, and GMC V1500, V2500 and V3500 trucks, with the Blazer entries running from 1970 through 1991.
The list does not include the Chevrolet C10, C20 or C30 pickups, the S10 Blazer, or model years after 1991. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Contents: one black frame shackle eye set for the front position.
