Energy Suspension Frame Shackle Bushing Set (Red) – 8.2109R

Energy Suspension

$14.57In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 16, 2026 10:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Energy Suspension 8.2109R red polyurethane frame shackle bushing set
  • Position: rear
  • Non-greaseable polyurethane for the frame shackle joint
  • UPC 703639401230

Description

Overview

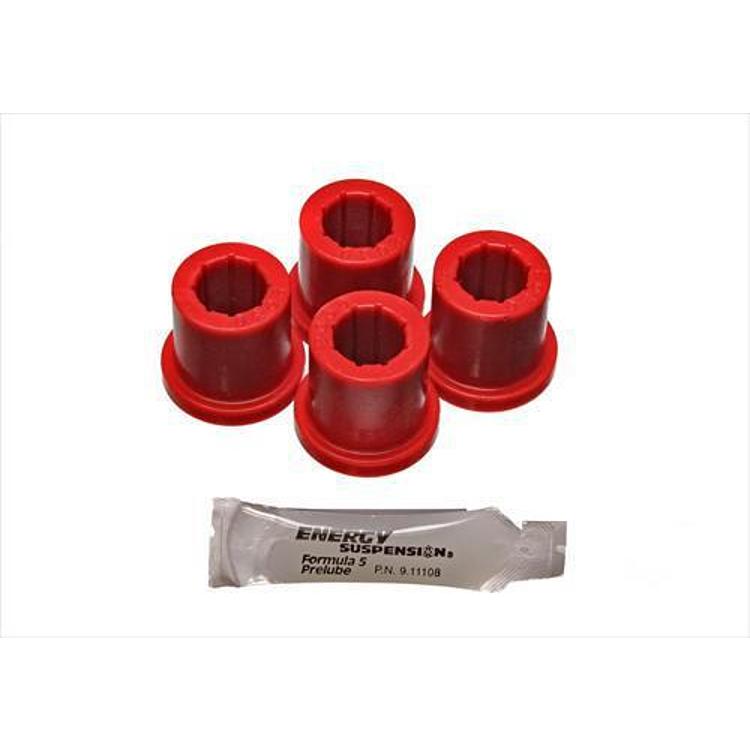

The Energy Suspension 8.2109R is a red polyurethane frame shackle bushing set for the rear position. Frame shackles link the leaf spring to the frame, and this set is meant to replace the bushings in that connection.

Worn and soft rubber bushings can make a vehicle wander on the road. The set is non-greaseable and a direct-fit polyurethane replacement.

Key features

  • Red polyurethane bushings
  • Rear position
  • Non-greaseable design
  • Direct fit.
  • Designed to let the suspension move without binding

Rear frame shackle wear

Rear frame shackles connect the rear leaf spring to the frame and allow the spring to change length as the suspension moves. When the bushings in that joint soften or wear, the rear end can move sideways and feel loose on the road. Inspection is the main task for a non-greaseable set, so look for cracks in the bushing, tearing of the material and play in the shackle at the frame bracket. Check the pin and the shackle plates for corrosion or wear as well, because a worn pin can damage a new bushing. When installing, make sure the shackle hangs straight and the fasteners are tightened evenly so the bushing is not pinched. Re-check the joint after the first few drives on rough roads.

Specifications

Brand Energy Suspension
Part number 8.2109R
UPC 703639401230
Kit type Frame shackle bushing set
Color Red
Material Polyurethane
Service Non-greaseable
Fit type Direct fit
Position Rear

Vehicle fitment

No year, model or chassis is named for this set. Confirm that you need the rear position before comparing it to your current frame shackles.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

Set type is frame shackle bushings. Compare sleeves, washers and fasteners with your existing hardware before installing.

SKU: ENE8.2109R Category:

Specification

Shipping weight 0.30 lbs
Package dimensions 4.00 × 4.00 × 3.00 in
brands

Questions & Answers

Is the Energy Suspension 8.2109R a rear bushing set?

Yes. It is a red frame shackle bushing set for the rear position. Confirm the position against your current frame shackles before ordering.

Which vehicles fit the 8.2109R?

No vehicle year, model or chassis is named for this product. Confirm your vehicle's year, model and trim before ordering, and compare the frame shackle position against your current bushings.

Is the 8.2109R greaseable?

No. The set is non-greaseable polyurethane. Energy Suspension says worn and soft rubber bushings contribute to wandering on the road, and polyurethane is offered as the replacement material.

What symptoms suggest rear frame shackle bushings need replacing?

Common signs include clunking over bumps, wandering on straight roads, and uneven tire wear. Check the rear frame shackles for play by hand and for cracks in the bushing. If movement is noticeable, replace the bushings before the joint wears further.
