Overview

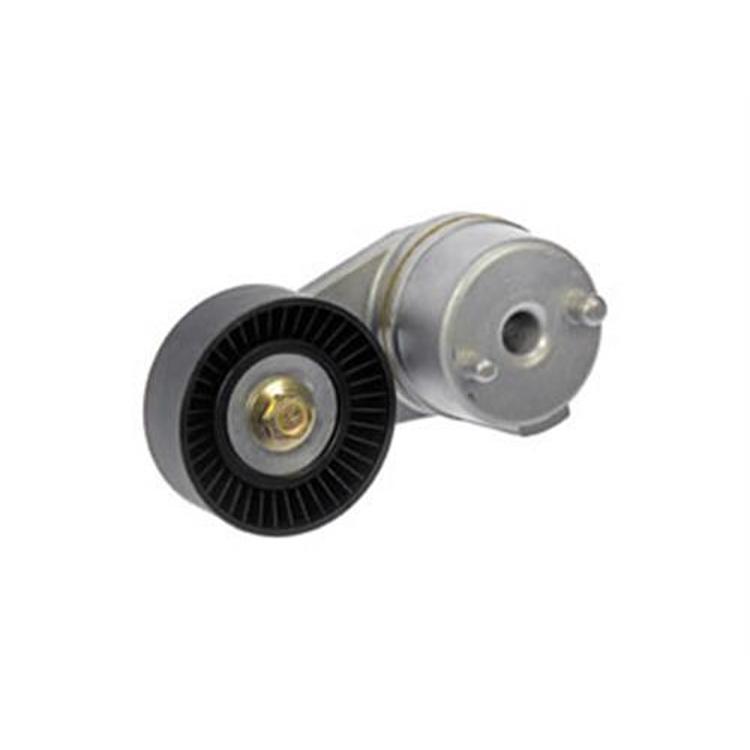

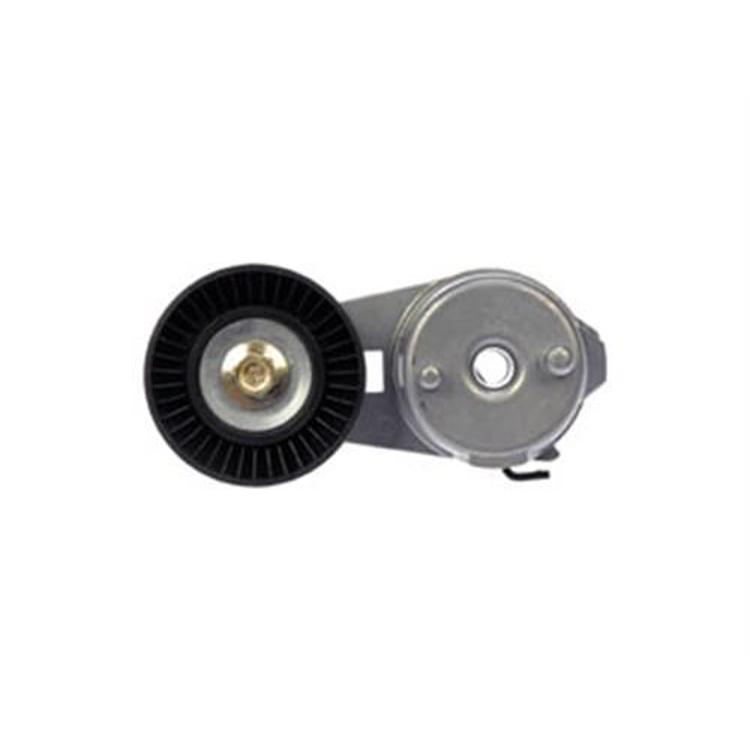

The Dorman 419-016 is an automatic serpentine belt tensioner, supplied as the tensioner only, for a 4.0L 6 cylinder engine. It is designed to provide proper tension to a serpentine belt.
It is tested for sustained performance. The 4.0L 6 cylinder engine is the only application detail, so confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Automatic tensioner design for a serpentine belt
- Tensioner only, no belt or pulley listed
- Composite pulley, 87mm diameter, 26 mm wide
- Pulley bearing diameter 40mm, inside diameter 17mm
- Clockwise tensioner rotation
- Tested for sustained performance.
Automatic tensioners and belt wear
An automatic tensioner uses an internal spring and pivot to keep a serpentine belt at the right tension as the belt stretches. Its pulley and bearing carry the belt load, so any roughness, side play or noise from the pulley is worth attention. Pulley width and diameter also control how the belt sits, which is why the belt’s groove count should be matched when replacing.
Check the tensioner arm for smooth movement through its travel, and confirm the pulley spins quietly by hand with the belt removed. Look for cracking, glazing or uneven wear across the belt’s ribs, since a worn tensioner can cause these patterns. Install a new belt at the same time when the old one shows wear, and recheck tension after a short drive.
Specifications
| Brand | Dorman |
|---|---|
| Part number | 419-016 |
| UPC | 19495365150 |
| Engine | 4.0L 6 cylinder |
| Tensioner type | Automatic |
| Pulley/belt type | Serpentine |
| Pulley diameter | 87mm |
| Pulley width | 26 mm |
| Pulley bearing diameter | 40mm |
| Pulley bearing inside diameter | 17mm |
| Pulley material | Composite |
| Tensioner rotation | Clockwise |
| Included | Tensioner only |
Vehicle fitment
No vehicle make, model or model years are named, so fitment is not confirmed for a specific vehicle. The only application detail is the 4.0L 6 cylinder engine, so match your engine and belt layout before ordering.
Engine size alone does not confirm a match. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check that the 26 mm pulley width and 87mm pulley diameter suit your belt before installing, and that the belt runs in the pulley groove. Dorman lists clockwise rotation, so confirm the direction matches your engine’s belt routing. Disconnect the battery before working near the belt.
What’s included
Tensioner only.
Not included: The drive belt and mounting hardware are not included.
