Overview

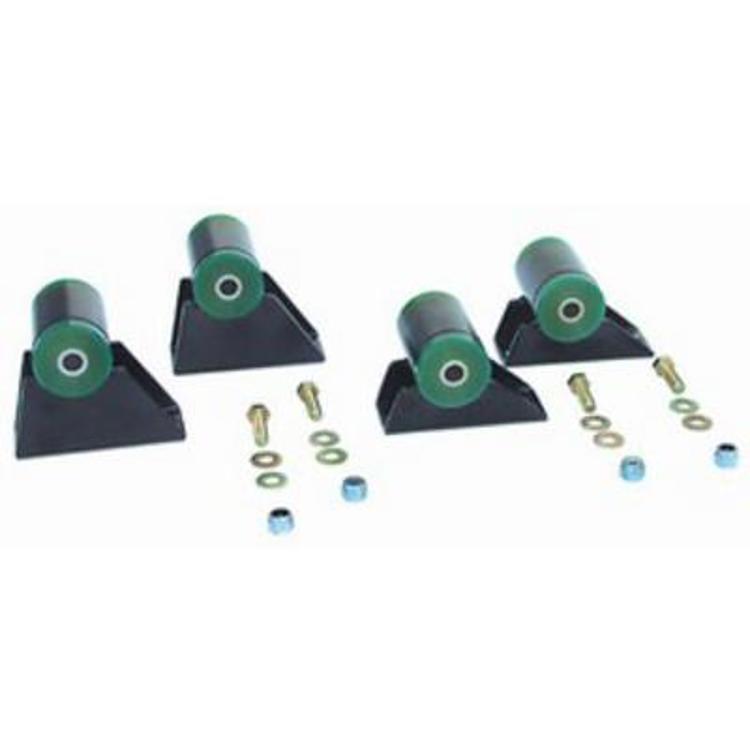

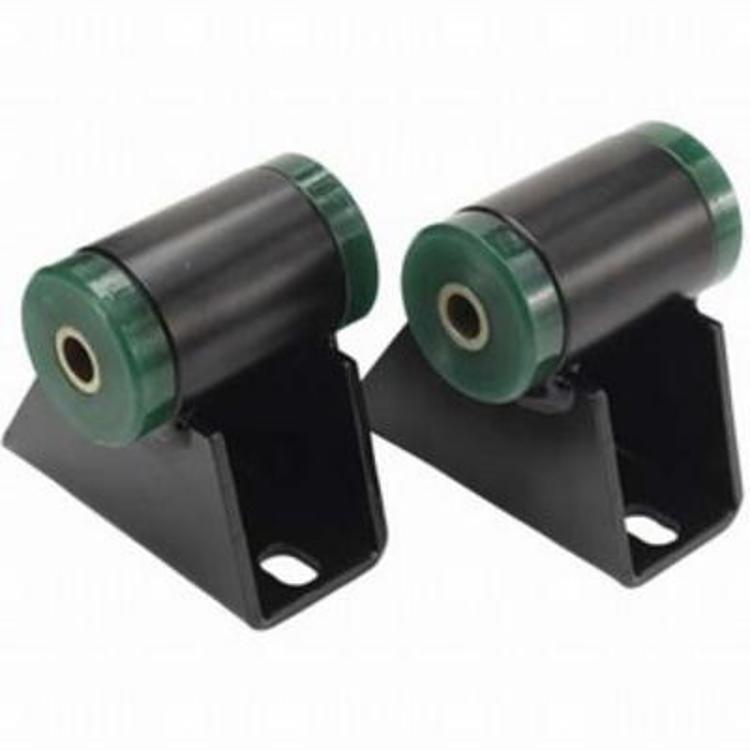

The Currie 1 Inch Motor Mount Lift, model CE-9200, is a heavy duty motor mount that provides a 1 inch lift while isolating vibration through urethane inserts. Currie Enterprises builds its heavy duty motor mounts with large diameter urethane inserts to absorb vibration, and Currie says its mounts include all necessary mounting hardware.
The mount is black powder coated and carries a Universal Fit fitment label. It is made for stock or raised height applications, so confirm the engine and vehicle before fitting one.
Key features
- Heavy duty construction, described by Currie as super heavy duty
- Large diameter urethane inserts absorb engine vibration
- One inch lift
- Black powder coated finish
- Includes all necessary mounting hardware
Lift height and driveline angle
A 1 inch motor mount lift raises the engine slightly, which changes the angle of the driveline and the position of the transmission. Higher engine placement can affect the driveshaft angle, and a steep angle can cause vibration at speed. Owners who raise the engine often check the transmission mount, exhaust clearance and driveshaft at the same time.
Urethane inserts stay firmer than rubber in cold weather and hold their shape under load, but they also pass more road vibration to the body. Keep the bolts snug and check the mounting points after a few weeks of driving, since new bushings settle as they break in. Support the engine safely throughout, because the lift changes how the weight rests on the mount.
- Check driveshaft angle after lifting
- Inspect exhaust and steering clearance
- Recheck fasteners after initial driving
Specifications
| Brand | Currie |
|---|---|
| Model | CE-9200 |
| UPC | 50800700001 |
| Lift height | 1 inch |
| Bushing material | Polyurethane |
| Bushing color | Black |
| Finish | Black powder coated |
| Fitment note | Universal Fit |
Vehicle fitment
Fit depends on the engine application. Confirm fit for your vehicle’s year, model and trim before ordering, and match the mount to your engine before installing.
Confirm your vehicle’s year, model and trim before ordering. A universal label does not confirm that the mount’s mounting points match your chassis.
Installation notes
Motor mounts carry engine weight, so the engine needs support while the old mount is removed and the new one is fitted. Support the engine safely before removing any mount.
What’s included
All necessary mounting hardware is included.
