Overview

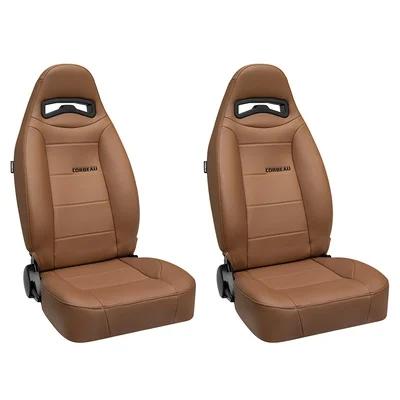

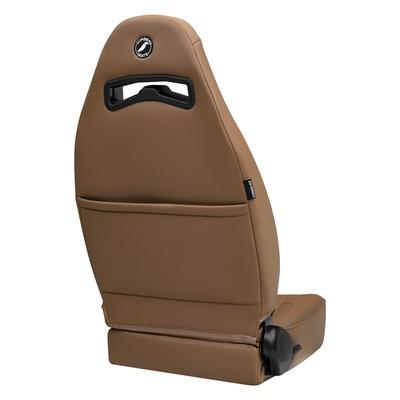

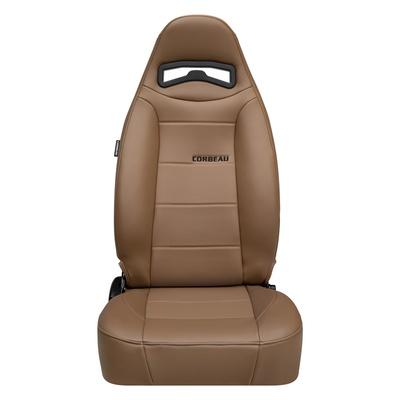

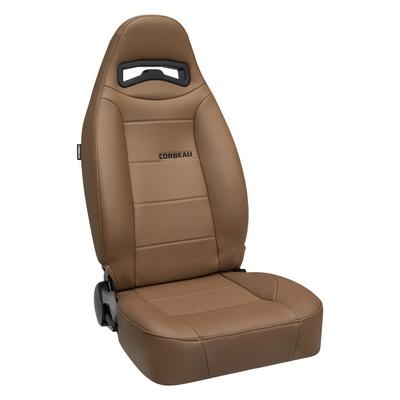

The Corbeau Moab reclining front seat, part number CBU70060PR, is a tan vinyl and tan perforated vinyl seat designed as a direct bolt-in replacement for CJ and YJ Jeeps. Corbeau built it for Jeep owners who drive off-road and found the stock seats lacking: the company added harness slots to the stock Jeep seat design and made the bolsters more aggressive.
The Moab has moderate thigh bolsters, which keep it easy to get in and out of, and Corbeau says there is minimal body shifting once you are seated. As a rule of thumb, it will fit up to a 40-inch waist. Corbeau also offers a matching Safari rear seat for CJ and YJ Jeeps.
Key features
- Harness slots added to the stock Jeep seat design
- Aggressive bolsters with moderate thigh bolsters for easier entry and exit
- Reclining seat type for the front position
- Limits body shifting once seated.
- Matching stock Jeep black, tan, spice and charcoal fabrics
- Available in vinyl, vinyl/cloth combo and neoprene materials
Harness routing and seat position
Harness slots change the way a seat is installed. Routing the belts before the seat is bolted down keeps them from pinching against brackets or floor hardware, and lets them sit flat across the hips and shoulders. Check that the harness threads through the slots without twisting, and that the anchor points give a clear path to the buckle.
Reclining seats need the recline mechanism checked before and after installation, since off-road jolts can work a worn lock loose. Bolsters and padding also compress over time, so the fit should be rechecked after the first few trips. For vehicles other than the named Jeeps, custom brackets are the main variable, and they should match the floor and seat base exactly.
- Route harnesses before final tightening
- Inspect the recline lock regularly
- Check bolster padding for compression
Specifications
| Brand | Corbeau |
|---|---|
| Part number | CBU70060PR |
| Seat type | Reclining |
| Seat location | Front |
| Color | Tan |

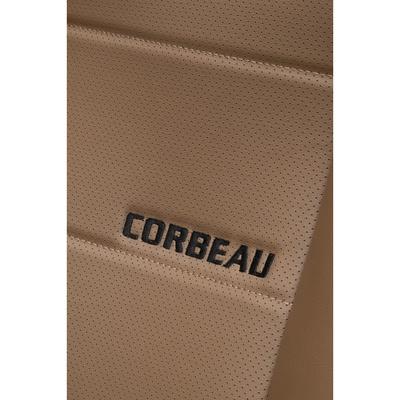

| Upholstery | Tan vinyl with tan perforated vinyl |
| Recommended waist size | Up to 40 inches, as a rule of thumb |
| Fitment | Universal fit; designed for CJ and YJ Jeeps |
Vehicle fitment
The Moab is designed as a direct bolt-in for the Jeep Wrangler YJ, built from 1987 to 1995. CJ fit is not confirmed by a model year range, so confirm it for your vehicle. Other vehicles need Corbeau custom brackets.
TJ, LJ, JK and JL Wrangler generations are not confirmed for this seat, so do not assume they fit. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
For vehicles other than CJ and YJ Jeeps, Corbeau custom brackets are needed to mount the seat. Harness slots are built into the seat, so plan harness routing before the seat is mounted.
What’s included
The reclining seat described above. Check the package contents against your installation before starting.
Not included: Corbeau custom brackets, which are needed to install the seat in vehicles other than CJ and YJ Jeeps.
