Overview

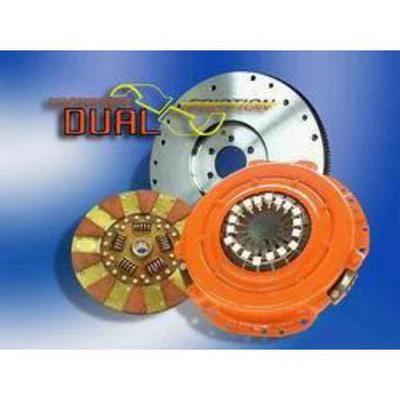

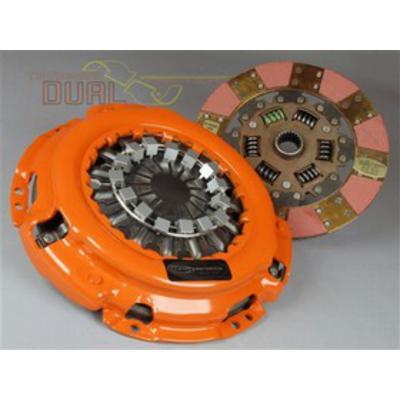

The Centerforce DF522018 is a dual friction clutch disc and pressure plate for Toyota 4Runner and Toyota Pickup models from 1985 to 1988 and 1992 to 1995, and for the 1995–2004 Toyota Tacoma.
Dual friction construction provides up to 90% greater holding capacity than OEM. It is suited to higher horsepower or torque, and engagement stays smooth with light pedal effort. A 90 day warranty applies.
Key features
- Dual friction design
- Up to 90% increase in holding capacity over OEM, per Centerforce
- Suited to high horsepower or high torque engines
- Smooth engagement and light pedal pressure
Matching a clutch to the truck
Toyota 4WD trucks often work hard on rough roads, with loaded beds, trailers or larger tires. A clutch that suits this use needs to handle extra torque and heat without slipping. Think about how the truck is used day to day, since a clutch chosen for trail work may feel different in city traffic.
Before fitting a new disc and pressure plate, check the flywheel, pilot bearing and throwout bearing. Confirm the transmission input shaft and splines match the disc, and use an alignment tool during installation. Keep the hydraulic system free of air and leaks, because a clutch that does not release fully can cause grinding when shifting.
- Check the flywheel surface
- Replace the pilot and throwout bearings
- Bleed the hydraulic system after installation
Specifications
| Brand | Centerforce |
|---|---|
| Part number | DF522018 |
| Series | Dual friction |
| Warranty | 90 day |
| Fitment years | 1985–1988, 1992–1995, and 1995–2004 (Tacoma) |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1985–1988 and 1992–1995 Toyota 4Runner, the 1985–1988 and 1992–1995 Toyota Pickup, and the 1995–2004 Toyota Tacoma.
Toyota years outside these ranges, and 1989–1991 4Runner and Pickup models, are not on the list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
A clutch disc and pressure plate.
