Bushwacker Ford Cut-Out Front Fender Flares (Paintable) – 20043-02

Bushwacker

$431.99In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:00 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ford Super Duty cut-out front fender flares, sold as a pair
  • Adds up to 4.5 in. of tire coverage against debris
  • Requires cutting body sheet metal for maximum wheel articulation
  • Stainless steel hardware, OEM matte black, UV protected
  • Rear part numbers 20046-02 or 20044-02

Description

Overview

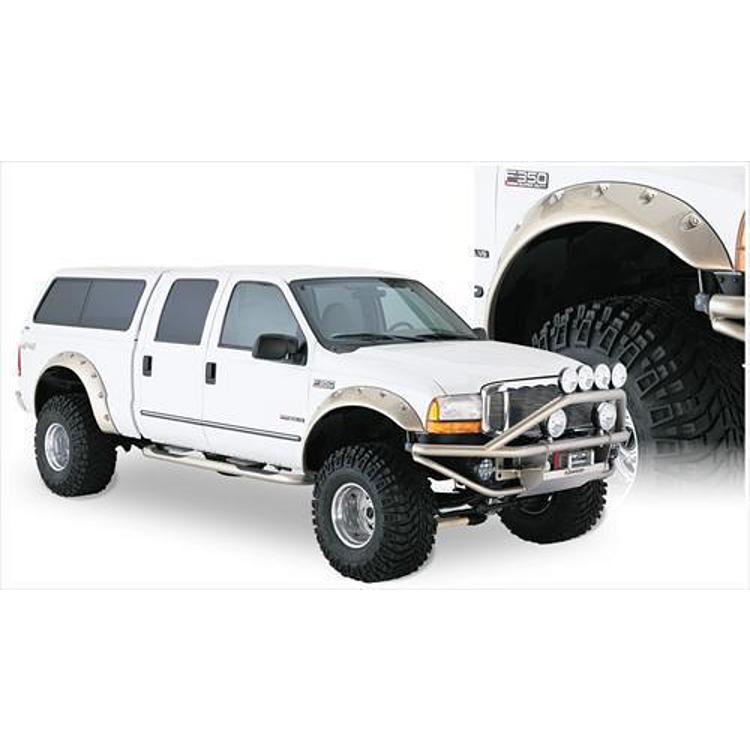

The Bushwacker 20043-02 is a cut-out front fender flare pair for the Ford Super Duty. Each set is designed for the truck to maximize off-road wheel travel and tire coverage, and the pair adds up to 4.5 in. of coverage against debris. Confirm the model years that fit your truck before ordering.

Cut-out flares are built for severe off-road use. They require cutting body sheet metal to reach full articulation and oversized-tire coverage, and removing the sheet metal gives a smoother appearance and greater strength when bolted on. The finish is OEM matte black, which can be left as-is or painted, and the Dura-Flex 2000 material is UV protected against chalking.

Key features

  • Adds up to 4.5 in. of tire coverage against debris
  • Sheet metal removal maximizes wheel articulation
  • Stainless steel hardware for a bolt-on installation
  • OEM matte black finish that can be painted
  • Dura-Flex 2000 material, 100% UV protected
  • Made in the USA, with a Limited Lifetime Warranty

Planning the cut

Cut-out flares are a permanent change, so plan the work before any sheet metal comes off. Measure the wheel and tire clearance at full articulation, mark the cut lines carefully, and test-fit the flare in stages. Trimming in small steps lets you stop when the fit is right instead of removing more metal than needed.

Once the metal is removed, the cut edges need protection. Bare steel rusts quickly, especially in wheel wells that collect mud and salt, so prime and paint the edges before the flare goes on. Inspect the seals and the flare edges after each off-road trip, and touch up chips as soon as they appear.

  • Measure tire clearance at full steering lock and suspension travel
  • Cut in stages and test-fit between each one
  • Seal bare edges with primer and paint before installing

Specifications

Brand Bushwacker
Part number 20043-02
UPC 90689105875
Vehicle Ford Super Duty (model years not stated)
Position Front
Sold as Pair
Rear part numbers 20046-02 or 20044-02
Tire coverage Up to 4.5 in.
Style Cut-out, sheet metal removed
Finish OEM matte black, smooth, paintable
Material Dura-Flex 2000, 100% UV protected
Hardware Stainless steel
Warranty Limited Lifetime
Made in USA

Vehicle fitment

These cut-out flares are made for the Ford Super Duty. The cut-out fit depends on the exact truck, so confirm the year and body style before cutting anything.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires cutting body sheet metal. Bushwacker refers to the installation guide for the specific model for the cut lines and steps, so read it before starting. Because the cut is permanent, check fit and clearance at each stage.

What’s included

A front pair of cut-out fender flares with stainless steel hardware. The rear pieces are sold as separate part numbers.

SKU: B/W20043-02 Category:

Specification

Shipping weight 13.00 lbs
Package dimensions 52.00 × 23.00 × 13.00 in
brands

Questions & Answers

Do these cut-out flares need body cutting?

Yes. Bushwacker says cut-out flares require cutting body sheet metal to achieve maximum articulation and tire coverage, so check the installation guide for your model first.

Which Super Duty years fit the 20043-02 flares?

The years that fit depend on the exact truck. Confirm your Super Duty's year, cab and body style before ordering, since the cut depends on the model.

How much tire coverage do the cut-out flares add?

Up to 4.5 in. of tire coverage against debris. The flares are designed for oversized tires used in severe off-road driving, and the sheet metal removal is what allows that coverage.

What protects the metal after cutting?

Seal the cut edges with a rust-inhibiting primer and paint before fitting the flares. Check the edges for chips after each stage of fitting, and touch them up to slow corrosion.
